LED Street Light PCB Processing Pick And Place Machine SMT Production Line

LED Street Light PCB Processing Pick And Place Machine SMT Production Line
LED Street Light PCB Processing Pick And Place Machine SMT Production Line LED Street Light PCB Processing Pick And Place Machine SMT Production Line LED Street Light PCB Processing Pick And Place Machine SMT Production Line LED Street Light PCB Processing Pick And Place Machine SMT Production Line LED Street Light PCB Processing Pick And Place Machine SMT Production Line

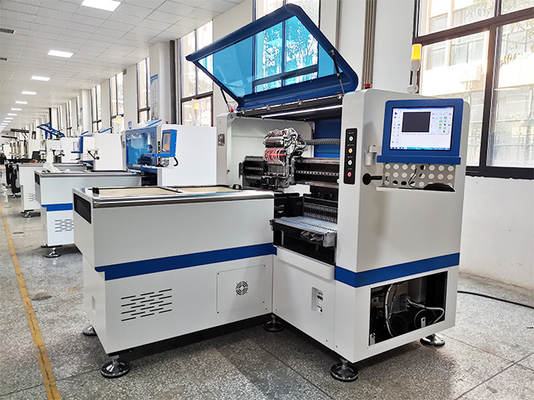

Large Image :  LED Street Light PCB Processing Pick And Place Machine SMT Production Line

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC,SIRA,CE

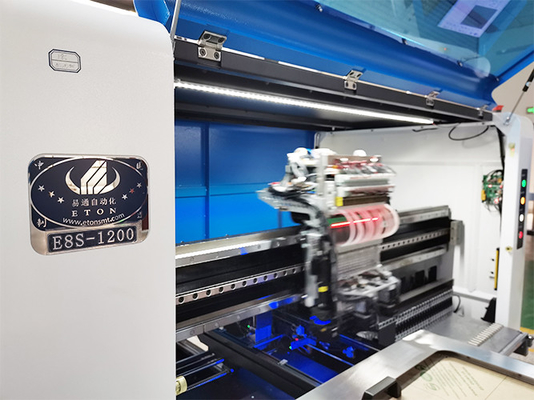

Model Number: E8S-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: We use vacuum wooden box packaging
Delivery Time: 5-8days
Payment Terms: L/C, T/T
Supply Ability: 50pcs/month
Detailed Product Description
Model: HT-E8S-1200 Length: 2550mm
Width: 1650mm Height: 1550mm
Total Weigth: 1700kg PCB Length Width: MAX:1200*500mm,MIN:100*100mm
No.of Head: 12PCS No.of Feeders Station: 28PCS
High Light:

28PCS feeders pick and place machine

,

PCB Processing Pick And Place Machine

,

LED Street Light SMT production line

led street light PCB processing pick and place machine SMT production line



1.HT- E8S - 1200 semi - automatic production line is suitable for mounting all kinds of LED lights and circuit boards For example: LED bulb, DOB bulb Panel lamp, Down-light, Lamp tube, Street lamp, Display screen, Circuit board and Other products.



2.HT-E8S-1200 SMT Line Maximum PCB size is 1200 * 350mm

(HT-E8S-1200 Maximum PCB Width could be adjust to 500mm)



Technical parameter

Model HT-E8S-1200
Dimension
Length 2550 mm
Width 1650 mm
Height 1550 mm
Total Weight 1700 kg
PCB
PCB Length Width Max:1200*500mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group picking and separate placingseparate picking and separate placing
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 2 sets of imported camera
Vision for the flight identification, MARK correction
Mounting Speed 45000 CPH

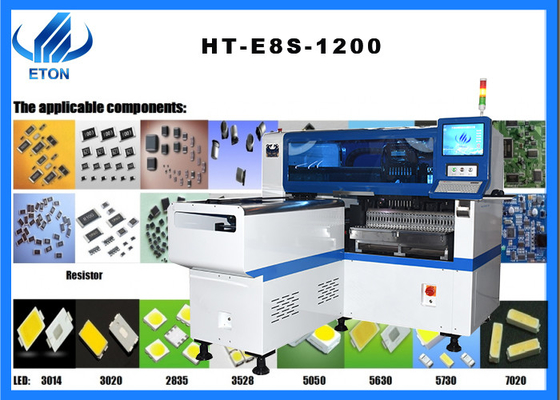

Components LED , capacitors, resistors, IC,shaped components, etc.
No. of Feeders Station 28 PCS

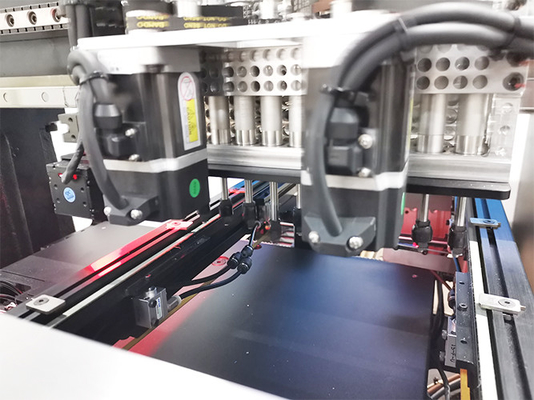

No. of nozzles 12 PCS
X,Y,Z Axis Drive way High-end magnetic linear motor + Servo motor
Feeding way Electric feeder with double motor

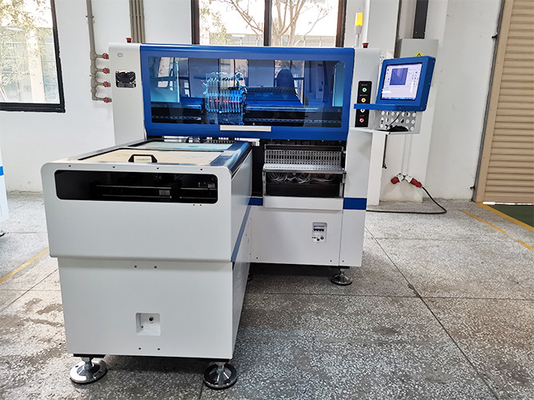

LED Street Light PCB Processing Pick And Place Machine SMT Production Line 0

Application

LED Street Light PCB Processing Pick And Place Machine SMT Production Line 1

Exhibition

Our company participates in many exhibitions at home and abroad every year,

You will see ETON’s booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.

Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.

LED Street Light PCB Processing Pick And Place Machine SMT Production Line 2

FAQ

Q: Do you have a product certification certificate?

A: Our products have CCC, CE, SRIA certification.

Q: How about the after-sale service? How about the warranty?

A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.

Q: Are you a trade company or a manufacturer?

We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
