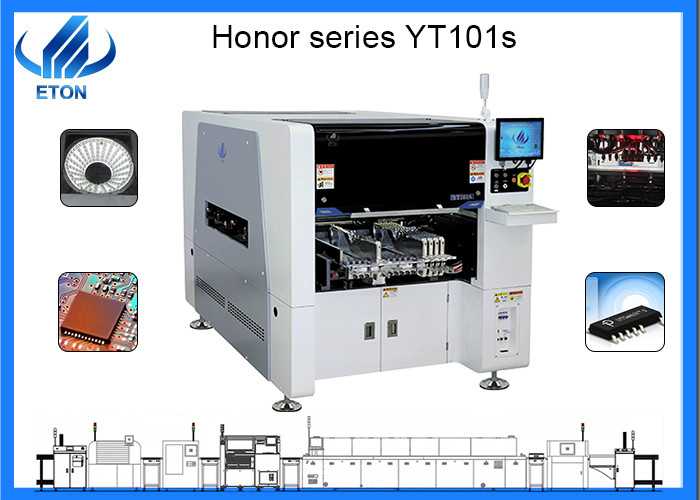

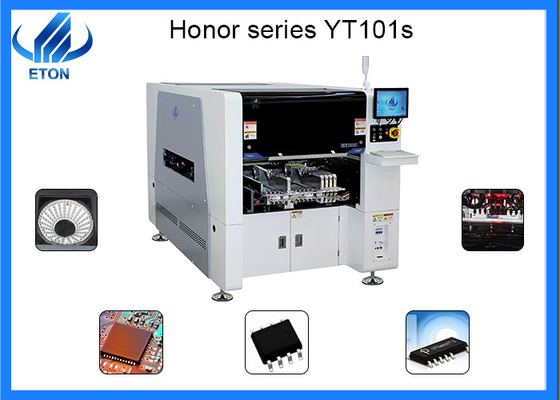

Automatic Pick Place Machine SMT Mounter Machine For IC / 0201- 40x40 Package

Automatic Pick Place Machine SMT Mounter Machine For IC / 0201- 40x40 Package
Automatic Pick Place Machine SMT Mounter Machine For IC / 0201- 40x40 Package Automatic Pick Place Machine SMT Mounter Machine For IC / 0201- 40x40 Package Automatic Pick Place Machine SMT Mounter Machine For IC / 0201- 40x40 Package

Large Image :  Automatic Pick Place Machine SMT Mounter Machine For IC / 0201- 40x40 Package

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC,SIRA,CE
Model Number: YT101s

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: WE USE VACUUM WOODEN BOC PACKAGE
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50PCS/Month
Detailed Product Description
Model: YT101s Warranty: 1 Year,12 Months
Name: SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter Application: SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line
Power Supply: 380V 50HZ Condition: 100% Original,Brand-new
Product Name: Place Machine\ LED Mounter\LED Assembly Machine,SMT Shooter Machine Weight: 1700KG
Mounting Speed: 40000 CPH Type: Automatic
Usage: Circuit Board Assembly,SMT Mounting Machine,SMD,LED Dimension: 2154*1376*1762mm
High Light:

0201 Components SMT Mounter Machine

,

Pick Place Machine 40000 CPH

,

linear motor Pick Place Machine

SMT pick and place chip mounter machine for IC and 0201-40*40 package



Product Details

Model Number:YT101s

Dimension:2154*1376*1762mm

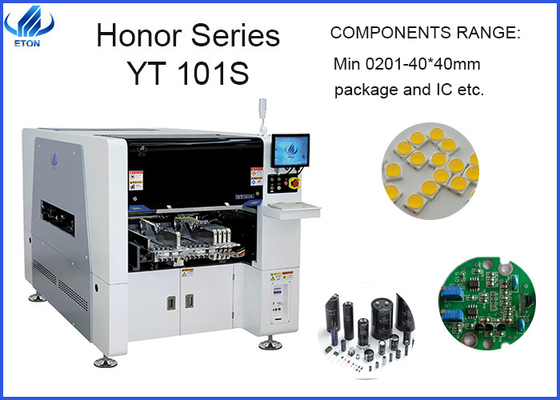

Component range:0201-40 *40mm package and IC etc.

PCB size:MAX:500*350mm/MIN:50*50mm

PCB thickness:0.5-4.5mm

No.of camera:2 sets

Repeat mounting Precision:±0.02mm (Repeat precision)

Mounting Height:≦20mm

Mounting speed:40000cph

Weight:1700kg

Speed:40000CPH

Power:380AC 50HZ

Feeder:16pcs

Heads:10pcs

PCB clamping:cylinder clamping,track width adjustable

Rail:rail 1 is fixed

X,Y,Z axis driver way:High-end magnetic linear motor+servo motor

Core Components:Motor

Brand:ETON

Automatic Pick Place Machine SMT Mounter Machine For IC / 0201- 40x40 Package 0



Our company profile

Automatic Pick Place Machine SMT Mounter Machine For IC / 0201- 40x40 Package 1

ETON not only takes the leading position in the field of photoelectric high-speed SMT, but also has made a breakthrough in the field of SMT high-speed SMT SMT, and successfully developed several SMT high-speed Universal SMT with high cost-performance ratio, products are widely used in lighting, display, electronics, driving power, home appliances, new energy and other industries. Looking to the future, ETON will“Create national well-known brands, Build International first-class Enterprises” as the goal, we are committed to continuously providing“Smarter, more professional, more efficient and lower consumption” products and services to the market.



SMT LINE

1.high assembly density, small size and light weight of electronic products, the size and weight of SMT components is only about 1/10 of the traditional plug-in components, after the general use of SMT, electronic products reduce 40% ~ 60% of the volume, weight, 60% ~ 80% .

2.High reliability and anti-vibration ability. Low solder joint defect rate.

3.Good High frequency characteristic. Reduced electromagnetic and radio frequency interference.

4.easy to realize automation, improve production efficiency. Reduce cost by 30% ~ 50% . Save material, energy, equipment, manpower, time and so on.



The importance of SMT inspection:

1.SMT inspection is an important step to improve the quality of SMT products, it can improve product quality and strive to achieve“Zero defect”.

2.The cost of finding fault after assembling the instrument is tens of times that of finding fault when assembling printed circuit board

3.The cost of finding fault after putting the product into the market will be hundreds of times that of finding fault when assembling printed circuit board.

4.In order to ensure the quality of SMT products, it is necessary to carry out effective detection, timely detection of defects and faults and repair, so as to effectively reduce the cost of manufacturing products containing faults and repair.
