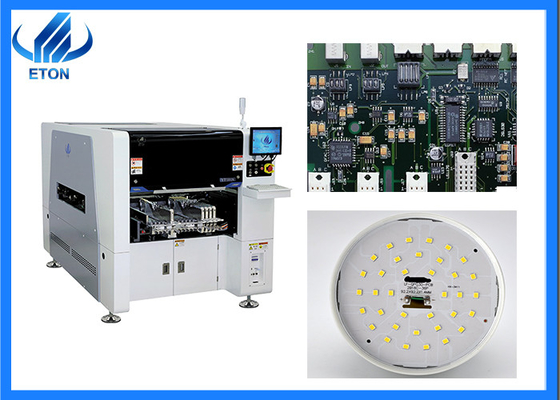

SMT Pick And Place Machine Manual Operation For LED Lights / PCB Drvier Board

SMT Pick And Place Machine Manual Operation For LED Lights / PCB Drvier Board
SMT Pick And Place Machine Manual Operation For LED Lights / PCB Drvier Board SMT Pick And Place Machine Manual Operation For LED Lights / PCB Drvier Board

Large Image :  SMT Pick And Place Machine Manual Operation For LED Lights / PCB Drvier Board

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC CE SIRA
Model Number: YT101S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Vacuum wooden box
Supply Ability: 50 PCS/month
Detailed Product Description
Name: Pick And Place Machine Warranty: 1 Year
Length: 2154mm Width: 1376mm
Height: 1762mm Total Weight: 1700kg
Highlight:

40k CPH pick and place machine

,

LED Lights pick place machine

,

PCB drvier board pick place machine

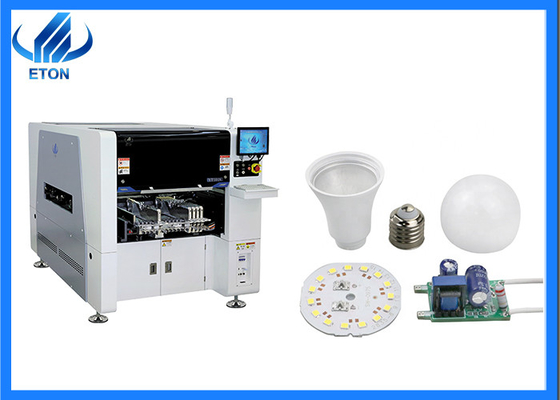

SMT pick and place machine can be suitable for all LED lights and different PCB drvier board

Product Description

The new upgrade of YT 101S SMT pick and place machine has both versatility and high speed

No need to replace the placement head

Support 0201-40*40mm IC packaging material, very high precision, complex components, such as CSP, BGA, PLCC, etc. can be mounted

The ideal speed production capacity is 40000CPH, and the speed advantage is obvious among the products of the same level.



Features

The suction nozzle has an independent vacuum sensing device and an independent vacuum detection function, which improves the stability of the equipment and the reliability of the product.

Optional fixed flight recognition camera



Parameter

PCB size(L* W)

Max size: 500mm*350mm

Min size: 50mm*50mm

PCB thickness 0.5-4.5mm
PCB clamping Cylinder clamping, track width adjustable
Rail Rail 1 is fixed
System R&D independently
Off-line programming Available
Repeat precision ±0.02mm
Mounting speed 40000CPH(Optimum speed)





Method of maintaining SMT Mounter electromagnetic valve



1. During manual operation, first confirm the safety.

2.Regularly discharge the condensed water accumulated in the air filter.

3.Reduce the use of electromagnetic valves. Check the operation of electromagnetic valves switch once a month to avoid failure.

4.When disassembling the mounter, please have the necessary equipment to prevent the driven object from falling and unable to operate normally. After this process, please cut off the air source and power supply and pay attention to the residual air pressure.

5.The maintenance process of the mounter shall be carried out in the order of the

operation as far as possible.

SMT Pick And Place Machine Manual Operation For LED Lights / PCB Drvier Board 0

Service

Maintenance period 1 year

●One year warranty, during warranty, any parts that need to be repaired and replaced will be free.

Software and hardware lifetime maintenance

●Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.

Visit customers regularly and gather information

●Visit clients regularly. We attend the different exhibitions in different cities. every year, at the same time, we will visit local

clients and support our service and collect feedback on customer suggestions in time.

Provide the latest information about technology and equipment

●We give professional technology suggestions to our clients. And share the updated news with our clients

On-site service

●We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service

timely with our engineers.

●According to your, needs, dedicated senior engineer will come to your factory for free install and training you how to

operate the machine.

SMT Pick And Place Machine Manual Operation For LED Lights / PCB Drvier Board 1

FAQ

Q1: Who are you?

A:We are Shenzhen ETON automation equipment Co., Ltd., the global leader of photoelectric high-speed mounter and the manufacturing supplier of SMT Mounter and peripheral equipment.



Q2: Why should I choose to buy from you instead of from other suppliers?

A:Choosing us has the advantages of products, R & D and technical consultants. We will try our best to help you solve your problems.
