Product Details:
Payment & Shipping Terms:
|
| Model: | HT-F7S | Warranty: | 1 Year,12 Months |
|---|---|---|---|
| Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
| Power Supply: | 380V 50HZ | Condition: | 100% Original,Brand-new |
| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine | Weight: | 1700KG |
| Mounting Speed: | 150000-180000 CPH | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Dimension: | 2700*2300*1550mm |

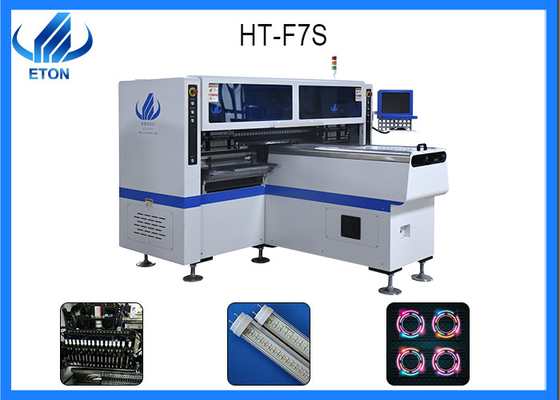

SMT pick and place machine in led light industry for led dob bulb
Technical parameter
Dimension:2700*2300*1550mm
Total Weight:1700kg
PCB Length Width:Max:1200*330mm Min:100*100mm
PCB Thickness:0.5-5mm
No.of Feeder:68pcs
No.of Head:34pcs
PCB Clamping:Adjustable pressure pneumatic
Mounting Mode:Group picking and separate placingseparate picking and separate placing
Software:R&D independently
Mounting Precision:±0.02mm
Mounting Height:<=5mm (Automatic Changing)
Mounting Speed:150000-180000 CPH
Components:LED,capacitors,resistors,rectifier etc.
Transmission Direction:Single direction (option)
Related machine
Automatic loader trigger features:
1.microcomputer control, stable and reliable work
2.Fuji Button or touch screen two control panels to choose, man-machine dialogue is convenient
3.a number of sound and light alarm functions
4.can use the standard material box, strong versatility, can place three material shelves
5.according to the PCB thickness, can set the material shelves up and down step
6.material machine built-in push plate mechanism
7.with automatic counting function,convenient for production statistics, with signal communication structure, can be connected with other machines on-line
Safe Operation Requirements:
1. Boot, please pay attention to work music, air pressure is correct.
during white-light operation, do not press the emergency button unless the button is pressed in an emergency.
it is prohibited for a staff member to be attached to a machine frequently or on a machine.
lifting trolley, do not put your hand around the frame
attention to adjust the plate spacing on the rack, wide easy to lead to fall off the board, tight easy to lead to card board
FAQ
Q:which kind of raw material should i prepared for SMT line?
A:you need to prepared mainly include:PCB, Solder paste, Components, Feeders, Nozzles etc.
Q:Can you support whole SMT line?
A:yes, we can provide whole SMT line solution if you want, we are professional in this field.
