Model: | HT-E8S-1200 | Dimension: | 2550*1650*1550mm |
---|---|---|---|
Warranty: | 1 Year,12 Months | Name: | SMD Chip Mounter,SMT Pick And Place Machine |
Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine | Power Supply: | 380V 50HZ |
Condition: | 100% Original,Brand-new | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine |
Weight: | 1700KG | Mounting Speed: | 45000 CPH |
Type: | Automatic | Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED |

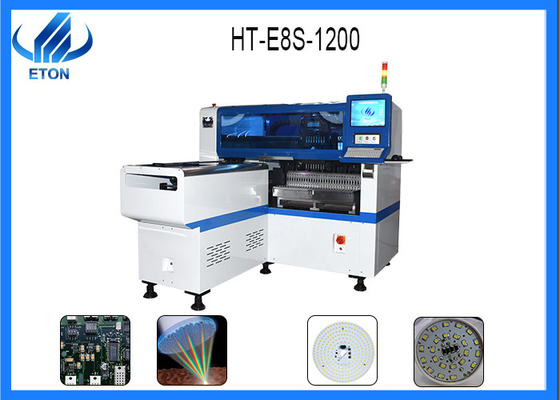

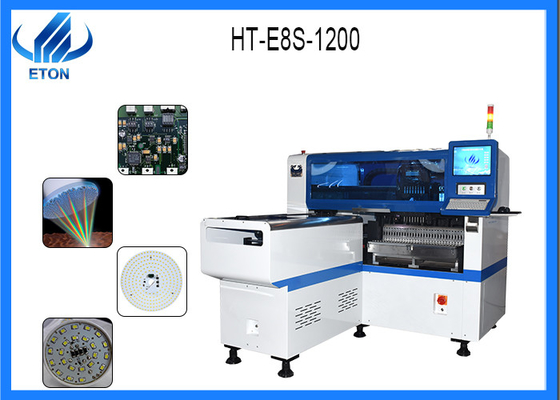

SMT pick and place chip mounter in led light industry for led bulb,dob bulb,etc.
Technical parameter
Dimension:2550*1650*1550mm
Total Weight:1700kg
PCB Length Width:Max:1200*500mm Min:100*100mm
PCB Thickness:0.5-5mm
No.of camera:2sets of imported camera
PCB Clamping:Adjustable pressure pneumatic
Mounting Mode:Group picking and separate placingseparate picking and separate placing
Software:R&D independently
Mounting Precision:±0.04mm
Mounting Height:<15mm (Automatic Changing)
Mounting Speed:45000 CPH
Components:LED,capacitors,resistors,IC,shaped components, etc.
Transmission Direction:Both direction (option)
Exclusive patented technology
Electronic feeder feeding system.
Vision alignment flight identifications, Mark correction.
Non-stop material re-loading function
Auto-optimization after coordinates generated, etc.
SMT process
1.stencil printer:solder paste is missed on the PCB by stencil printer
2.mounter: the function is to mount the surface mount components to the PCB in the correct position. The equipment used is a SMT machine, located in the SMT production line behind the screen printing machine.
3.Curing: the function is to melt the adhesive so that the surface assembly components are firmly bonded to the PCB board. The equipment used is a curing furnace, located in the SMT production line in the back of the SMT machine.
4.Reflow soldering: the function is to melt the solder paste, so that the surface assembly components and PCB board firmly bonded together. The equipment used is a reflow soldering furnace, which is located behind the SMT SMT machine in the production line.
5.cleaning: its role is to assemble the PCB board on the above harmful welding residues such as flux removal. The equipment used is a washing machine, the position can be not fixed, can be on-line, can not be on-line.
6.detection: its role is to assemble the PCB board for welding quality and assembly quality detection. The equipment used includes magnifying glass, microscope, on-line test instrument (ICT) , flying needle test instrument, automatic optical test (AOI) , X-ray test system, function test instrument and so on. Location according to the needs of detection, can be configured in the appropriate place on the production line.
7.repair: its role is to detect the failure of the PCB board rework. The tools used are soldering iron, repair workstation, etc. . Configure anywhere in the production line.
