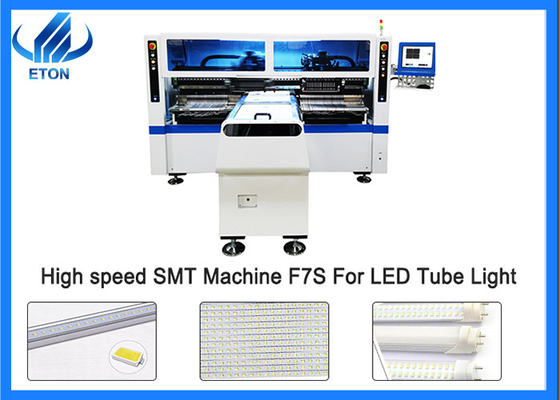

led tube machine for 34 heads high speed SMT pick and place machine

led tube machine for 34 heads high speed SMT pick and place machine
led tube machine for 34 heads high speed SMT pick and place machine

Large Image :  led tube machine for 34 heads high speed SMT pick and place machine

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE , ISO , CCC
Model Number: HT-F7S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 48000-72000 per set
Packaging Details: Vacuum wooden packing
Delivery Time: 15-30 days
Payment Terms: T/T, L/C
Supply Ability: 50 unit per month
Detailed Product Description
Name: Pick And Place Machine Model: HT-F7S
Appearance: White And Blue PCB Size: Max:1200*330mm Min:100*100mm
Camera: 5 Sets Import Camera Feeders Station: 68PCS
Heads: 34 PCS

led tube machine for 34 heads high speed SMT pick and place machine



The technical parameter of 34 heads high speed led tube machine



Name High speed Pick and place machine
Model HT-F7S
Total weight: 1700kg
Dimension 2700*2300*1550mm
PCB length width Max:1200*330mm Min:100*100mm
PCB thickness 0.5-5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group picking and group placing
No. Of camera 5 sets of digital camera
Mounting precision ±0.02mm
Mounting height ≤5mm
Power consumption 6kw
X,Y,Z Axis drive way High-end magnetic linear motor and servo motor
No. Of feeders station 68 PCS
No. Of head 34PCS
Feeding way Electric feeder with double motor
Software R&D by ETON



The main features of 34 heads high speed led tube machine



Higher mounting speed reach 180000CPH with 34 heads and 68 feeders station

Adopt magnetic linear motor and servo motor, it can ensure higher mounting speed and mounting precision

Total 5 cameras, achieve vision alignment and mark correction

The feeding way is electric feeder with double motor



Applications and Production line



Apply to led tube, led strip(0.5M ,1 M, 1.2M), LED display, panel light and other Linear products.

led tube machine for 34 heads high speed SMT pick and place machine 0



Market and Customer



Foreign Market: South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, Iran, Vietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc.

Foreign Customer: RK, UNISTAR, FIEM, POLYCAB, SURYA, CALCOM, KONKA etc.

Domestic market and customer:More than 80 percent of LED light factories in China are our partners,our clients include NVC, TCL, MLS, OPPLE etc.

led tube machine for 34 heads high speed SMT pick and place machine 1



FAQ



1. Which language is the software? Do you provide software updates?

English or Chinese. Free to upgrade software for lifetime.

2. How about the warranty?

We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within thewarranty period.

3. it is supported to customize?

Of course. All of our machines can be customized.

4. This is the first time I use this kind of machine, is it easy to operate?

Yes. There are English manual and guide video that show you how to use machine.

We also have oversea engineers who can provide timely service door to do
