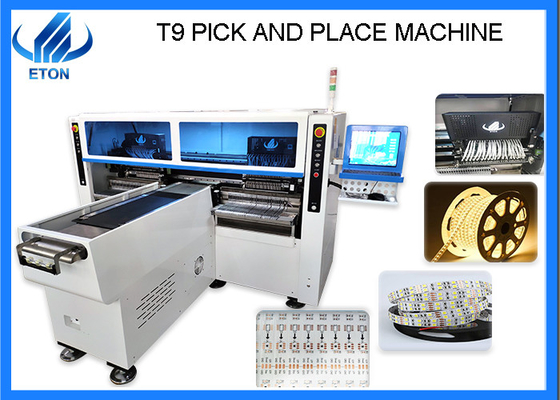

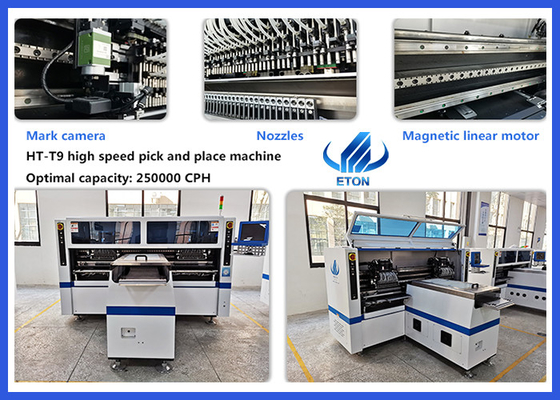

SMT high speed 68 PCS heads for LED chip, flexible strip pick and place mounter
Features
- Producing 4 types of materials at the same time with high capacity, available for 5m, 50m or any length of flexible strip and Roll to Roll.
- Dual arm four module, 17 nozzles for each mounting part, part A, part B can be mounted separately or synchronously.
- Calibration automatically, high precision, available for for RGB.
- Exclusive patent technology: Group to pick and group to mount.
IPC9580 Capacity: 200000- 250000 CPH
Patent number: ZL2011 2 0237740.9ZL2011 2 0334606.0ZL 2012 20178869.1ZL 2012 2 0415505.0ZL2012 2 0415044.7ZL2012 2 0415356.8ZL2012 20415061.0
Machine parameter
| Model |
HT-T9 |
| Dimension |
3100*2300*1550mm |
| Total weight |
1700kg |
| PCB length width |
250mm*any length |
| PCB thickness |
0.5-1.5mm |
| PCB clamping |
Vacuum adsorption, cylinder splint, adjustable track width |
| Mounting mode |
Group picking and group placing |
| Mounting precision |
±0.02mm |
| Mounting speed |
200000-250000 CPH |
| No. of feeders station |
68PCS |
| No. of head |
68PCS |

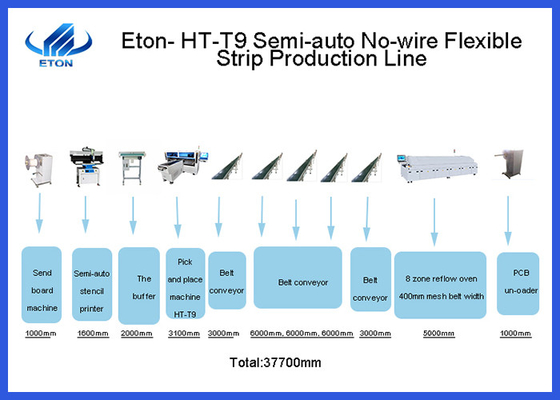

SMT Line solution
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
FAQ
Q. How was your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
Q.What is your merits of the machine to others production?
A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
