Product Details:
Payment & Shipping Terms:
|
Name: | Double Rail Conveyor | Module: | ET-600 |
---|---|---|---|
Local Service: | India, Egypt | Warranty: | 1 Year |
Condition: | New | Payment: | T/T |

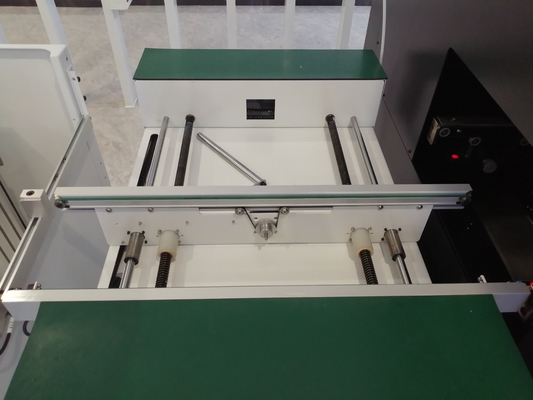

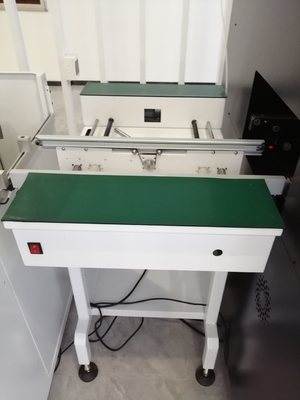

ET-600 PCB conveyor machine connect for the Assembly machine with 5mm flat belt conveyor
Specifications
Model | ET-DC600 |
Steel frame structure, rail length | L=600 |
Width adjustment range | 50~300 mm |
Transmission height | 920±20 |
PCB size | 600*300 mm |
Transmission | 5MM flat belt conveyor |
Speed | Adjustable from 0.5 to 9 m/min |
Motor | Two set of 25 W stepper motor |
Control | Industrial control panel |
Transmission Direction | Single(left→ right or right → left) |
One section of control, Four Sensors |

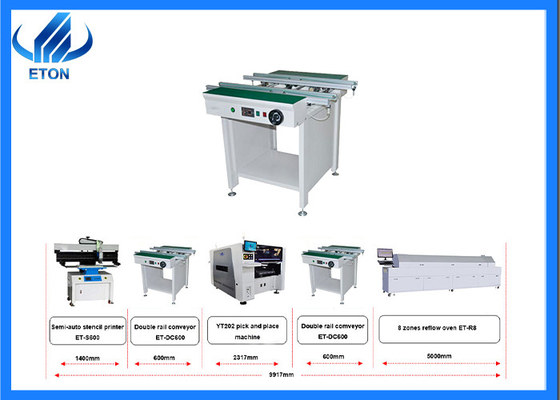

SMT Production Line
Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.
Single conveyor: Inspect the quality of assembly and welding to cushion the production line.
Pick and place machine: Mount the electronic component at the specified position on the PCB.
Reflow oven: Melt the solder paste and fix it to the mounting element.
Functions in Production Line
SMT PCB conveyor can link the pcb magazine loader unloader for smt assembly, this PCB conveyor are mainly used for equipment linking, visual inspection, manual assembly, and PCB buffering functions. Their advantage is the short length, which allows them to be placed anywhere when you have space limitations.
Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
Service
1. Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
FAQ
Q: Are you a trade company or a manufacturer?
A:We are an experienced manufacturer of SMT. Our company has been established for ten years, the company has more than 300 employees, the company is a large-scale, is the top domestic enterprises
Q: What’s your operating system?
A: Our operating system is windows 7.
Q: If I have any questions that I don’t understand, can I ask you at any time?
A: Yes. If you have any questions, please don’t hesitate to ask me. We have local engineers and office in India and Egypt, can help u very convenient.
Q: How to operate the machine?
A: We will provide online video to help you to operate, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.
