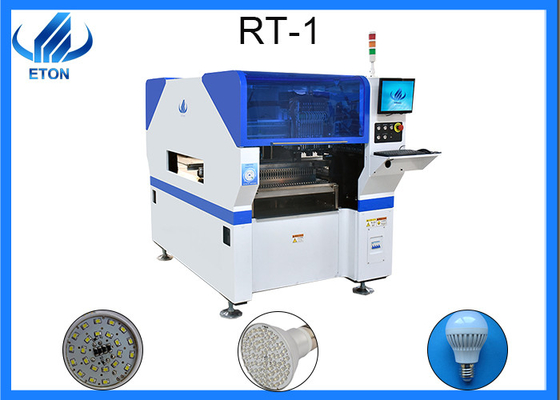

multifunctional pick and place machine which mounting components in led chips,capacitors,IC
Specification:
Dimension:1200*1930*1500mm
Total Weight:2000kg

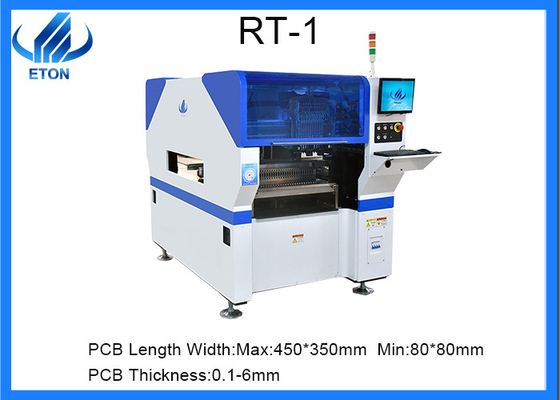

PCB Length Width:Max:450*350mm Min:80*80mm
PCB Thickness:0.1-6mm
PCB Clamping:Pneumatic
Mounting Mode:Group picking and separate placingseparate picking and separate placing
No. of Camera:2 PCS
Mounting Precision:±0.04mm
Mounting Height:≦15mm

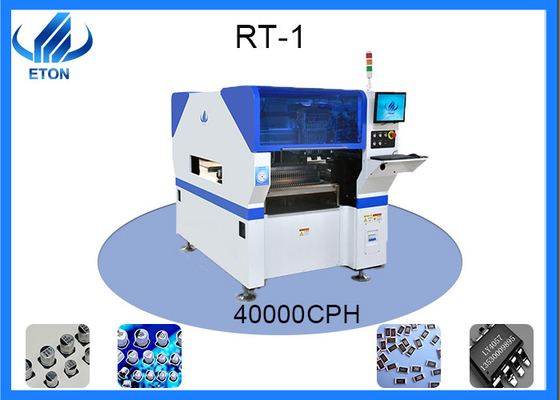

Mounting Speed:40000 CPH
Components:LED,capacitors,resistors,shaped components, etc.
Power Consumption:4kw
No. of Feeders Station:32pcs
No. of nozzles:10pcs
Transmission Speed:＞1000mm/sec
Features
Single-module Magnetic linear motor multifunctional pick and place machine.
Electronic feeder feeding system.
Vision alignment flight identifications, Mark correction.
About dob products
Types of LED bulb
1.Divided by shell:
(1)Led embossed aluminum bulb:With high-quality die-casting aluminum radiator and good appearance, it provides LED bulb lamps with Reliable heat dissipation guarantee can ensure long-term stable work.
(2)LED car aluminum bulb lamp.This is a low-level version of the LED die-casting aluminum bulb lamp, which appearance is worse than that of die-casting aluminum bulb, so the cost will also be lower than that of die-casting aluminum bulb.
2.According to the power points :LED bulb lamp 1W, 3W5W, 9W, 12W, 15W and other power, customers can according to the brightness requirements, choose.
3. According to the interface points:LED bulb lamp interface GU10, Giant 1, E B, E40 and so on.
At present, LED bulb lamp is easy to change and use, making this type of products widely accepted by the majority of household users, in the same light, LED bulb lamp power is one-tenth of the traditional white light, with half the power of cfls, efficient lighting is the best alternative to conventional lighting.
4.According to the lamp shell points: global bubble and hemisphere bubble.
5.According to the type of power supply points
(1)ordinary tungsten bulb: color rendering is very good, tungsten filament lamp after electrification color rendering is better, more uniform spectrum, there will be no glare and so on;light source has many forms: the use of a wide range;the light source is relatively small;4 the range of light is relatively wide.
(2)DOB bulb:Features DOB means Drive On Board. It has no traditional drives and capacitors.
(3)linear bulb:Features: small current, low voltage, small size, light weight, high efficiency, low energy consumption, high color index, no heat, do not burn black lampshade, environmental protection and aesthetic advantages,etc. , belongs to the green lighting light source has good protection functions:short circuit protection,no-load protection,over-temperature protection,overload protection
