Product Details:
Payment & Shipping Terms:
|
Model: | HT-T9-2S | Warranty: | 1 Year,12 Months |
---|---|---|---|
Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
Power Supply: | 380V 50HZ | Condition: | New,100% Original,Brand-new |
Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine | Weight: | 3100kg |
Mounting Speed: | 500000 CPH | Type: | Automatic |
Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Dimension: | 3454*3035*1777MM |

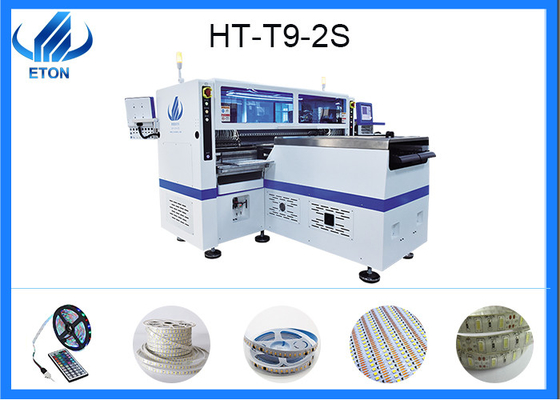

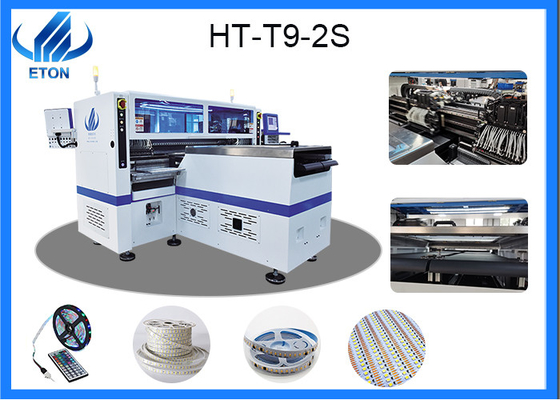

SMT pick and place machine automatic production line for led chip component
Specification
Length:3454mm
Width:3035mm
Height:1777mm
Weight:3100kg
PCB thickness:0.1-0.5mm
Model Number:T9-2S
Heads:136pcs
Weight:3100kg
Mounting Speed:500000CPH
Power:380AC 50HZ
Feeder:136pcs
Mounting height:<5mm
PCB size:250*any length
Transmission speed:>500mm/sec
Core Components:Motor
Brand:ETON
Visual camera:10set of imported camera
Place of Origin:Guangdong, China
About led lamp beads
Led (light emitting diode) , LED lamp is the light-emitting diode of the acronym LED, which is a popular name.
Frequently Asked Questions
1. High-power led bulbs burn off the reason:
01.above and below two filament also called Gold Wire, for conducting electricity, two positive electrodes, two negative electrodes, good products will have a fifth wire, welded on the tube, play a protective role.
02.the short filament is very clear to tell you that your lamp has been high current burned out, equivalent to the open circuit.
2. LED lamp beads for voltage requirements: in fact, different colors of the current also have different requirements, yellow requires the smallest current, followed by red, green, white, blue. Too much current will scorch the wick.
3. High-power led bulbs burn off the reason:
01.above and below two filament also called Gold Wire, for conducting electricity, two positive electrodes, two negative electrodes, good products will have a fifth wire, welded on the tube, play a protective role.
02.the short filament is very clear to tell you that your lamp has been high current burned out, equivalent to the open circuit.
LED sealant yellowing cause epoxy resin and curing agent mismatch, but also can not rule out the external sealant caused by too long baking time.
Solution: Buy a complete set of external sealant and curing agent, pay attention to production control, strictly according to operating instructions, avoid baking time is too long or insufficient, etc. , personnel are not wearing static bracelets (must be corded) . Caused by improper electrostatic protection. Then is the packaging process, PAD welding line deviation, and finally the chip itself quality problems.
Whole automatic SMT production line
Between the automatic and semi-auto production line,the biggest difference is automatic production line only need one operator can master the whole line,but need higher cost of labour and cash;instead of,semi-auto production line take lower cost than automatic,but it needs more time and the production efficiency is not high.
