Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1200*1930*1500mm | PCB Size: | Max:450*350mm Min:80*80mm |
|---|---|---|---|
| PCB Thickness: | 0.1~6mm | Mounting Precision: | ±0.04mm |
| Mounting Height: | Standard:≤15mm(Height Customizable) | Mounting Speed: | 80000 CPH |
| No.of Feeders Station: | 64 PCS | No.of Head: | 20 PCS |
20 Heads 64 Feeder Stations 4 Cameras LED DOB Bulb Making Machine 80000CPH
Product Introduction

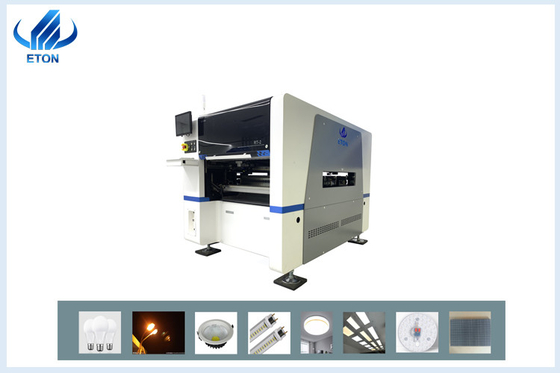

RT-2 is double module pick and place machine.It can mounter DOB,downlight,drive,bulb,street light,
circuit board and so on.
Technical Parameters
|
Dimension |
1200*1930*1500mm |
| Total weight | 2500kg |
| PCB Length width | 450*350mm 80*80mm |
| No.of camera | 4PCS |
| Mounting precision | ±0.04mm |
| Mounting speed | 80000CPH |
| Components space | 0.2mm |
| No.of head | 20pcs |
| No.of feeders station | 64Ppcs |
| Feeding way | electric feeder with double motor |
Application
Main features
l Double module can mounter two PCB board at the same time.
l High precision placement speed up to 80000 CPH.
l RT-2 can mounting LED chip,capacitors,resistors,IC,shaped components,etc.
l Four sets cameras:Vision alignment flight identification,Mark correction.
Product details
Solenoid valve
The role of the solenoid valve is to be able to interact with the system and manage the operations of
our head to move, pick, release, etc.

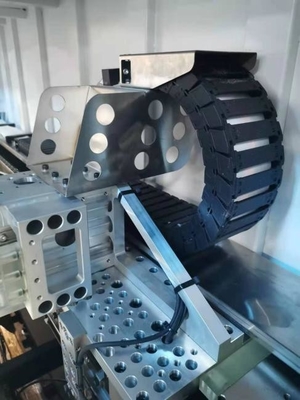

Linear guides
Linear guides are used to support and guide the moving parts (placement head and transport platform),
and perform high-precision reciprocating motion in the specified direction.
Company profile
Shenzhen ETON Automation Equipment Co., Ltd. was established in 2011. It is a national high-tech,
dual-soft enterprise integrating R&D, production, sales and after-sales technical services of SMT
high-speed placement machines and SMT peripheral automation equipment.
FAQ
What service can you provide?
l Free installation
l Free training
l Free consult
l Free software upgrade
What is the difference between a semi-automatic production line and a fully automatic production line?
The biggest difference is their cost and labor, footprint. Fully automatic production line requires more cost,
but does not require excessive labor and area. Semi-automatic production lines are the opposite
