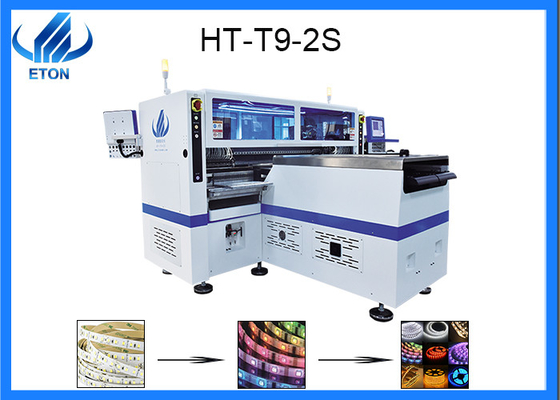

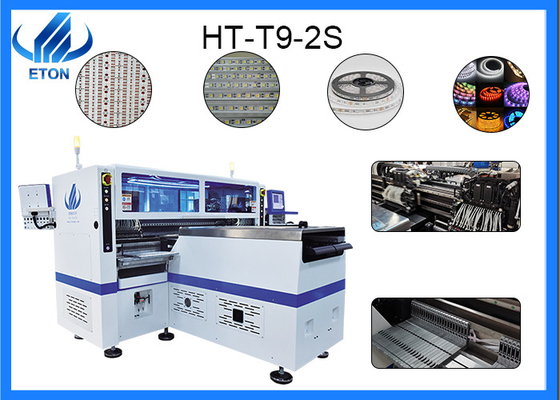

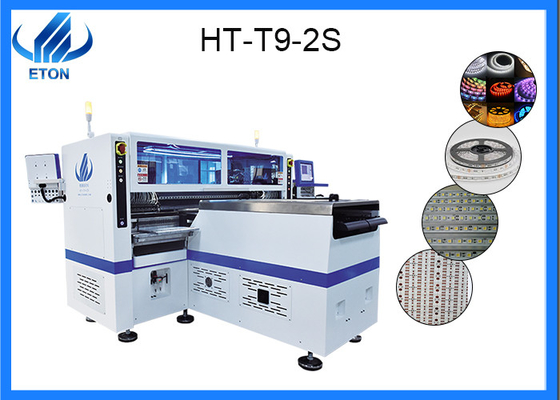

SMT chip pick and place machine in led lindustry for PCBA soft strip light roll to roll

SMT chip pick and place machine in led lindustry for PCBA soft strip light roll to roll

Specification

Length:3454mm

Width:3035mm

Height:1777mm

Weight:3100kg

PCB thickness:0.1-0.5mm

Model Number:T9-2S

Heads:136pcs

Weight:3100kg

Mounting Speed:500000CPH

Power:380AC 50HZ

Feeder:136pcs

Mounting height:<5mm

PCB size:250*any length

Transmission speed:>500mm/sec

Core Components:Motor

Brand:ETON

Visual camera:10set of imported camera

Place of Origin:Guangdong, China

Basic acknowledge of led soft strip

LED light strip also called LED soft strip, LED light strip, LED flexible strip, LED soft strip. At present, LED soft light belt is not only used in the field of indoor decorative lighting, but also in the field of urban lighting, landscape lighting, commercial lighting and some special lighting, which is only used in the field of indoor decorative lighting, at the same time also in the city lighting, landscape lighting, commercial lighting.

As an energy-saving and environment-friendly lighting product, the LED soft lamp belt has made great progress through continuous debugging and development, gradually meet the requirements of different lighting places and environments, a wide range of applications.

Assessment of soft lamp bands

1.Evaluate the number of beads

2.and light-emitting angle of LED lamp with soft lamp

LED strip number of LED lights: 30 lights, 48 lights, 60 lights, 120 lights refers to the length of LED strip every meter of the number of LED welded LED components, generally speaking, 1210 standard strip is 60 chips per meter, the 5050 standard is 30 chips per meter, and the special one is 60 chips per meter. Different LED quantity of LED soft light belt price is different, this is to distinguish the LED soft light belt price is an important factor. Led soft light with different colors will have different luminous intensity, commonly used unit is MCD, the higher the value, indicating the greater luminous intensity, that is the brighter.

General purpose LED soft light with components on the luminous angle is 120 degrees. The bigger the angle. The better the astigmatism. On the contrary, the brightness of its luminescence is correspondingly reduced. Light angle is small, the intensity of light is up, but the scope of exposure will be reduced.

After purchasing service

1.You will enjoy a one-year warranty period, and any damaged parts will be replaced free of charge during the warranty

period

2.we will send engineers to install the machine free of charge and train employees, no matter which country you

are in, no matter how far you are

3.We will provide free software upgrades for life, reduce your future investment, and keep your production at the

forefront of the industry Eton's mission is to create value for the society and create benefits for customers, ETON is the best partner of LED.
