Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Place Of Origin: | China |
|---|---|---|---|
| Power: | 380AC 50HZ | Drive Way: | High-end Magnetic Linear Motor +servo Motor |
| Mounting Height: | <36mm | Mounting Speed: | 90000CPH |
| Power Consumption: | 8KW | Dimension: | 2788*1686*1375mm |
| Total Weight: | 2100kg | Visual Camera: | 2 Sets Of Imported Camera |
| Warranty: | 1 Year |
Optical Recognition Camera
Components with size less than 40• 40mm or height less than 20mm can be used to high-speed and high-precision identification
Mark recognition:High-precision Mark recognition system, adopt 3-color illum1nat1on recognition.apply to any shape Mark and LENS(Blu-ray scan), wider range of applications
Fixed flight vision camera:High-speed flight vision camera.quickly captures multiple head images at once, perform visual calibration of image pos1tion,alignment
Correction ,adjustable light source brightness
Docking Car
Double side docking cart slot 32PCS, tape reel packages: 64PCS (single side docking cart slot 16PCS, tape reel packages: 32PCS), freely switching between docking cart and IC tray feeder(IC tray feeder.Option)
Smart Double-head Tape feeder
Support YT series double head intelligent electric tape reel feeder,by optically correcting the feeding position of the component.it can achieve stable, accurate and high-speed feeding
IC Tray Feeder
Support multi-layer tray feeder(IC tray feeder) installment, freely switch1ng between docking cart and IC tray feeder.
| PCB length width |
Double module&Double rail: MAX:500x300mm(Non-omnidirectional 640x300mm) MIN:50x50mm Single module&Single rail: MAX:500x540mm (Non-omnidirectional 640x540mm) MIN:50x50mm |
| Components |
0201 IC 50x50mm Mounting Height:20mm |
| Mounting speed |
70000 CPH (Under the best conditions for our company) |
| Mounting precision | ±0.03mm(Repeat precision) |
| No. Of feeders station | 32PCS(Double material feeder, can load 64 trays of material) |
| Power | AC380 50Hz |
| Air supply | 0.4-0.6Mpa (4-6Kgf/㎡) |
| Vacuum detection | Independent vacuum detection of reclaiming material |
| Dimension | L 2795 X W 1497 X H 1687 |
| Total weight | 1700kg |

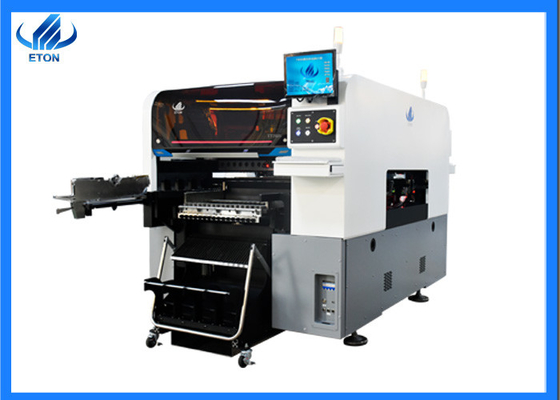

Pictures of led lights assembly machine
Services of ETON
1: What about the shipping methods?
Our mode of transportation is by sea, air and road.
2:What’s your delivery time?
Usually 30 days after deposit, if we have inventory, the time can be brought forward.
3:How can you make sure we will receive the machine with high quality?
Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
4:How is your service?
If you buy our machine,we will send our engineer to your factory to install machine and training freely.
5.Who is your client?
We have exported machine to different countries,such as India,Egypt,Korea,Turkey,Brazil etc.
Such as FSL,ETI,KONKA,OPPLE,MLS are our client,In india such as RK,Surya,skyquad are our client.
FAQ
Q1: How can I buy machine from you?
A: (1) Consult us on line or by e-mail.
(2) Negotiate and confirm the final price, shipping, payment method and other terms.
(3) Send you the perfroma invoice and confirm your order.
(4) Make the payment according to the method put on proforma nvoice.
(5) We prepare your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
(6) Send your order via express or by air or by sea.
Q2: Are you a trade company or a manufacturer?
A: We are an professional manufacturer specialized in SMT Machine, Pick and Place Machine,and we also can provide a whole SMT solution,we have Overseas Engineer help you.
Q3: How about the warranty?
A: We support 1 year warranty. We will help you in time.
All the spare parts will be provided free of charge for you within the warranty period.
