Product Details:
Payment & Shipping Terms:
|

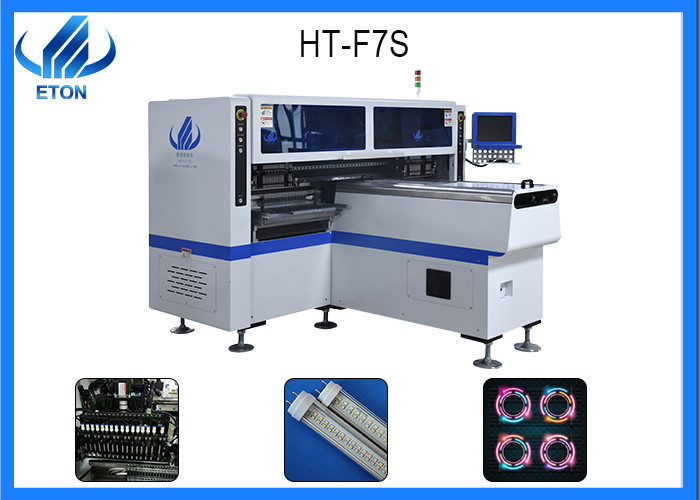

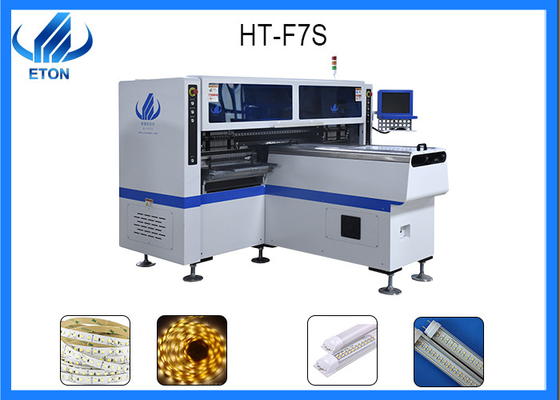

Model: | HT-F7S | Warranty: | 1 Year,12 Months |
---|---|---|---|
Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter | Application: | SMD Production Line,SMT Production Line,for SMT Machine |
Power Supply: | 380V 50HZ | Condition: | 100% Original,Brand-new |
Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine | Weight: | 1700KG |
Mounting Speed: | 150000-180000cph | Type: | Automatic |
Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Dimension: | 2700*2300*1550mm |
High Light: | LED Neon SMT Mounter Machine,Neon Light SMT Pick Place Machine,NEON Light SMT Mounter Machine |
SMT pick and place making machine in led light industry for led NEON light
Technical parameter
Dimension:2700*2300*1550mm
Total Weight:1700kg
PCB Length Width:Max:1200*330mm Min:100*100mm
PCB Thickness:0.5-5mm
No.of Feeder:68pcs
No.of Head:34pcs
PCB Clamping:Adjustable pressure pneumatic
Mounting Mode:Group picking and separate placingseparate picking and separate placing
Software:R&D independently
Mounting Precision:±0.02mm
Mounting Height:<=5mm (Automatic Changing)
Mounting Speed:150000-180000 CPH
Components:LED,capacitors,resistors,rectifier etc.
Transmission Direction:Single direction (option)
About neon light
As an energy-saving and environment-friendly lighting product, the LED soft lamp belt has made great progress through continuous debugging and development, gradually meet the requirements of different lighting places and environments, a wide range of applications.
LED light strip also called LED soft strip, LED light strip, LED flexible strip, LED soft strip. At present, LED soft light belt is not only used in the field of indoor decorative lighting, but also in the field of urban lighting, landscape lighting, commercial lighting and some special lighting, which is only used in the field of indoor decorative lighting, at the same time also in the city lighting, landscape lighting, commercial lighting.
Application
Common length of soft lamp belt:0.5m,1m,5m,25m,100m.
At present, the soft lamp belt has been widely used in buildings, bridges, roads, gardens, courtyards, floors, ceilings, furniture, cars, ponds, underwater, advertising, signs, signs and other decorations and lighting, add endless joy and festive atmosphere to all kinds of festival activities such as Christmas, Halloween, Valentine’s Day, Easter, National Day, etc. ,with tenacious vitality,it has entered the five dominant markets of advertising, decoration, architecture, commerce and gifts,and exported to Japan, the European Union, Australia and other countries and regions. It is widely used in building wheel corridor, bridges, guardrails, hotels, gardens, dance halls, advertising decoration places and so on.
Related machine
Reflow oven ET-R8 function
Inside the device is a heating circuit that heats air or nitrogen to a high enough temperature and blows it to a circuit board already attached to the component, allowing the solders on both sides of the component to melt and Bond to the motherboard. The advantage of this process is that temperature is easy to control, oxidation can be avoided during welding, and manufacturing costs are easier to control.
Product features
1.The opening of the upper furnace body adopts pneumatic jacking, which is safe and reliable and convenient for furnace cleaning.
2.Modular heating structure can effectively prevent the influence of airflow in the temperature range, ensure that the components are heated evenly, and the lateral temperature deviation is <±2℃.
