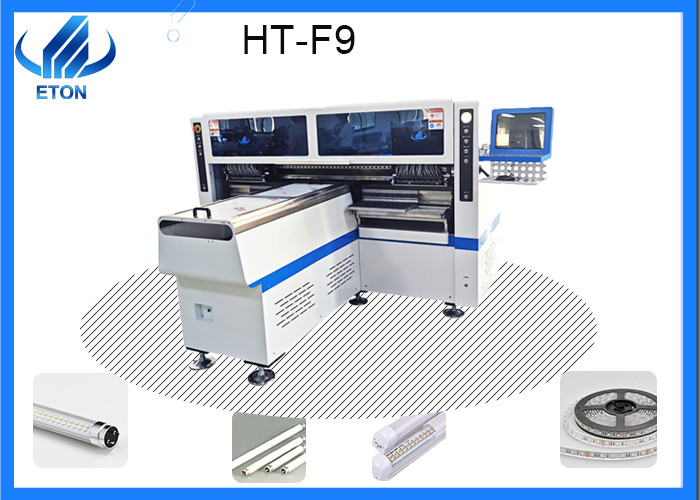

SMT pick and place machine semi-auto production line in led light for strip

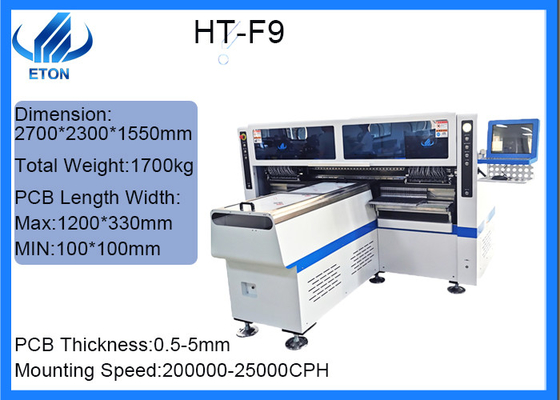

Technical parameter
Dimension:2700*2300*1550mm
Total Weight:1700kg
PCB Length Width:Max:1200*330mm Min:100*100mm
PCB Thickness:0.5-5mm
PCB Clamping:Adjustable pressure pneumatic
Mounting Mode:Group picking and group placing
Software:R&D independently
Mounting Speed:200000-25000CPH
Repeat mounting Precision:±0.02mm (Repeat precision)
Mounting Height:≦5mm
Components:LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
No.of camera:5pcs
Power consumption:6KW
No.of head:68pcs
No.of feeder:68pcs
Features
Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 4 types of materials at the same time with high capacity. available for board with any proportion of LED chip and resistor.
Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to take and group to mount.
The difference between high-voltage and low-voltage soft lamp belts
The difference between high-voltage and low-voltage soft lamp belts | ||
high-voltage | low-voltage | |
Operating voltage | 220v(Danger voltage) | DC12V safety voltage |
Installation complexity | Simple,can be directly driven by high-voltage drive | Complex,to install a DC power supply in front of the lamp belt |
package | 50-100m/roll | 5-10m/roll |
cost | low | Higher,with DC power supply |
Service life | Around 10000 hour | 30000-50000 hour |
Application | The high-voltage lamp belt uses in the position quite high,the ceiling lamp trough, uses the high-voltage lamp must have the protective cover | Low-voltage soft lamp belt is very convenient to use, you can stick in a narrow place, such as bookcase, exhibition kitchen, wardrobe, etc. , shape change |
Application
Common length of soft lamp belt:0.5m,1m,5m,25m,100m.
At present, the soft lamp belt has been widely used in buildings, bridges, roads, gardens, courtyards, floors, ceilings, furniture, cars, ponds, underwater, advertising, signs, signs and other decorations and lighting, add endless joy and festive atmosphere to all kinds of festival activities such as Christmas, Halloween, Valentine’s Day, Easter, National Day, etc. ,with tenacious vitality,it has entered the five dominant markets of advertising, decoration, architecture, commerce and gifts,and exported to Japan, the European Union, Australia and other countries and regions. It is widely used in building wheel corridor, bridges, guardrails, hotels, gardens, dance halls, advertising decoration places and so on.
SMT semi-auto production line
1.stencil printer:solder paste is missed on the PCB by stencil printer
2.mounter: the function is to mount the surface mount components to the PCB in the correct position.
3.Curing: the function is to melt the adhesive so that the surface assembly components are firmly bonded to the PCB board.
4.Reflow soldering: the function is to melt the solder paste, so that the surface assembly components and PCB board firmly bonded together.
