Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Model: | HT-F9 |
|---|---|---|---|
| Feeders Station: | 68 PCS | Heads: | 68 PCS |
| Mounting Speed: | 250000 CPH | Camera: | 5 Sets |
| High Light: | LED Strip High Speed SMT Mounter,1.2m Strip High Speed SMT Mounter,SMT LED Tube Light Assembly Machine |
||

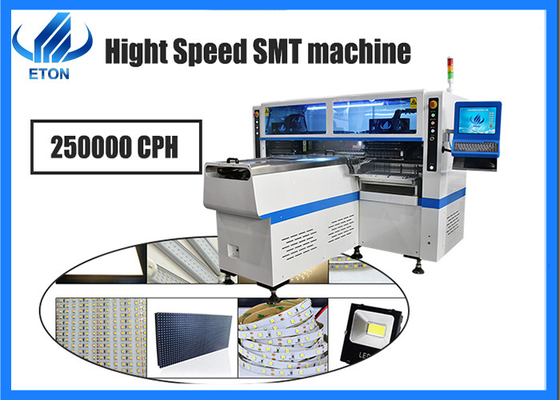

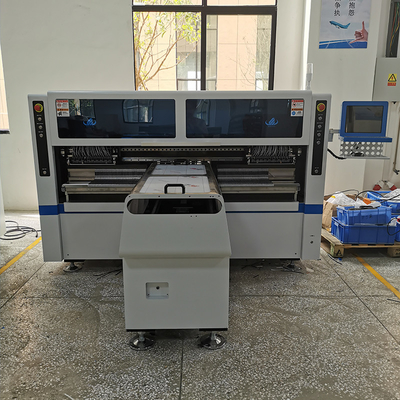

High speed SMT mounter for 1.2M led strip and tube light assembly machine
The Machine parameter of 1.2M led strip and tube light assembly machine
| Dimension | 2700mm*2300mm*1550mm |
| PCB Length width | Max: 1200*330mm Min: 100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Conveyor transmission | Max length: 1200mm |
| Component space | 0.5mm |
| Component height | ≤5mm |
| Operating environment | 23℃±3℃ |
| Power consumption | 6KW |
| X, Y, Z Axis drive way | linear motor and serve motor |
| No. Of feeders station | 68PCS |
| No. Of head | 68PCS |
| Feeding way | Electric feeding with double motor |
| Mounting speed | 250000CPH |
| No. Of camera | 5 sets of digital camera |
| Camera advantages | Vision alignment, Mark correction |
The Production line and SMT peripheral equipment
For production line: the total length of HT-F9 pick and place machine is about 12.1 meter. including semi-automatic stencil printer, pick and place machine, conveyor and reflow oven
Company profile
It is an enterprise integrating R&D, production, sales and service of SMT placement machines;
Has its own production industrial park, covering an area of 50,000 square meters;
The quality control of the machine is strict, there is a quality inspection after the installation of the machine, and a quality inspection before delivery;
There are offices overseas, and engineers can go directly to the factory for installation and training.
Package and transport
we use the vacuum packaging and wooden box packaging.
First, Wrap the machine in foam cotton and stretch film to protect the outside of the machine
Second, Vacuum packaging, put the desiccant into a vacuum bag to prevent moisture, and use straps to fix the machine;
Third,professional wooden box packaging.
FAQ
1. What are the normal requirements about LED pick and place machine?
there are many normal requirements: Stable,High-speed,High-precision, Intelligent,Durable etc. For LED SMT pick and place machine
2. Do our machines only for LED lights?
No,our machines apply to not only LED light but also other products, such as power driver, led display, elctric board,
3. How long of machine warranty ?
It's usually a one-year warranty, During warranty, any parts need to be repaired and replaced will be free.
4. What are the main LED products do our machines for?
There are different machines in our company,and different machines apply to different LED lights. The main products we can apply: bulb, tube, strip, panel light, downlight, street light,ceiling light,led display and so on.
