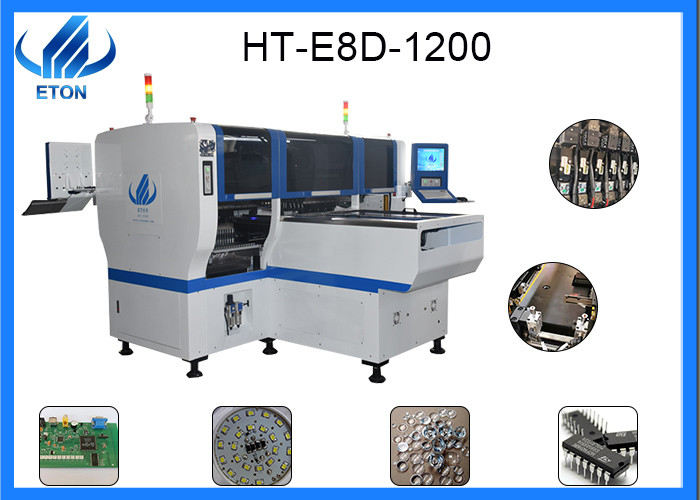

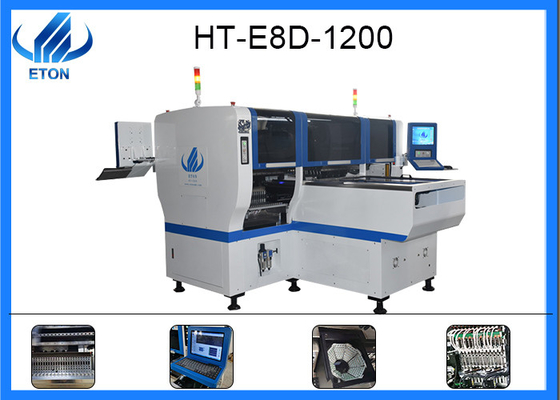

Components SMT Mounter Machine LED Tube LED Bulb Flexible Strip SMD Chip Mounter

SMT machine can mount components for lens, producing led tube,led bulb,flexible strip,power driver etc.

Product Details

Model Number:E8D-1200

Dimension:3150*2250*1650mm

Heads:24pcs

Weight:2500kg

Mounting Speed:90000CPH

Power:380AC 50HZ

Feeder:48pcs double module

Core Components:Motor

Brand:ETON

Visual camera:4set of imported camera

Place of Origin:Guangdong, China

Warranty :1 Year

Machinery Test Report:Provided

Delivery:Within 30 Days

Supply Ability:50 Sets per Month

SMT automatic production line

SMT production line main equipment:

Printing Machine, pick and place machine,reflow soldering, plug-in,wave oven,test packaging.SMT is the surface assembly technology, which is a new generation of electronic assembly technology developed from hybrid integrated circuit technology.SMT technology is driven by high-end products such as communication, entered a rapid, good development period.

About lens

1. Definition of a lens a lens is an optical element made of transparent material (e. g. , glass, crystal, etc.) . Lenses can be divided into two general categories: convex and concave lenses. The central part is thicker than the edge of the part called convex lens, there are double convex, flat convex, four convex three. Convex lens has the effect of focusing light, so also known as“Convergence lens”, “Positive lens”. The central part is thinner than the edge called concave lens, there are double concave, flat four, convex concave three. Four lenses have the effect of diverging light, so also called“Diverging lens”, “Negative lens”. LED lens is a kind of optical system which can be used to change the light field distribution of LED according to the different effect.

The function and advantage of LED lens

(1) the function lens can make the light from the point light source converge or diverge. It can change the size of the east corner of the light so as to change the illumination area and illuminance value of the illuminated agricultural surface.

• because the lens has a strong light-gathering ability, so use it to illuminate the road, not only the road is bright, but also clear. Because the light dispersion is very small, so its light ray range than the ordinary halogen lamp is far and clear. Uniform brightness, strong penetration, so whether it’s a rainy day or a foggy day, there is more penetration
• use a small-angle LED lens, the effect is better than the amount of light, because the amount of light to shoot far has already passed through the lens and then through the hood again, this will waste a lot of light, it's better to focus the light in the lens, and the lens light angle is very easy to deal with.

(4) LED permeation appears to be more upscale
