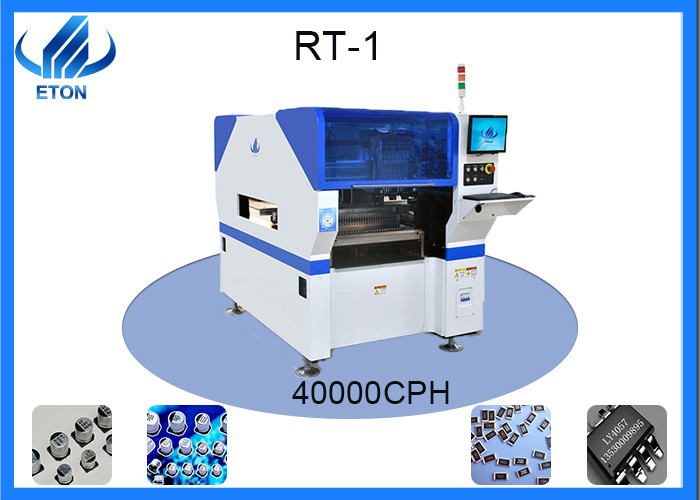

LED Lens SMT Chip Mounting Machine Group Pick Separate Placing

Multifunctional pick and place machine mounting for led lens chip making machine pick and place machine

Specification:

Dimension:1200*1930*1500mm

Total Weight:2000kg

PCB Length Width:Max:450*350mm Min:80*80mm

PCB Thickness:0.1-6mm

PCB Clamping:Pneumatic

Mounting Mode:Group picking and separate placingseparate picking and separate placing

No. of Camera:2 PCS

Mounting Precision:±0.04mm

Mounting Height:≦15mm

Mounting Speed:40000 CPH

Components:LED,capacitors,resistors,shapedcomponents, etc.

Power Consumption:4kw

No. of Feeders Station:32pcs

No. of nozzles:10pcs

Transmission Speed:＞1000mm/sec

Flood light identification

Flood light is designated by the illumination of the surface is higher than the surrounding environment lamps. Also known as the spotlight. Usually, it can be aimed in any direction and has a structure that is independent of climatic conditions. It is mainly used in large-area operation fields, building outlines, stadiums, overpasses, monuments, parks and flower beds, etc. . Therefore, all outdoor use of large-area lighting lamps can be regarded as projection lamp. The angle of the outgoing light beam of the projection lamp is wide and narrow, and the cross-over range is between 0 and 180.

What is an LED projector?

Led Spot Lights, also known as spotlights, projectors, spotlights and so on, mainly used for architectural decorative lighting, as well as commercial space lighting, decorative components heavier, its shape has a round and square, because generally have to consider the reasons for the heat, and therefore the shape of the traditional projector light or some differences.

Led projector features

1.On the market commonly used LED spot lamp is basically the choice of 1W high-power LED. Suitable for large-scale occasions cast light lighting, building lighting.

2.Symmetrical light distribution system with narrow angle, wide angle and asymmetry.

3.Replace the light bulb with open back, easy to maintain. 4.lamps are equipped with a scale plate to facilitate the adjustment of the irradiation angle.

The application of fan bin LED projection lamp mainly applies the hand single building, the lighting outside the historical building complex, the interior and exterior transparent lighting, the interior local lighting, the green landscape lighting, the advertisement board lighting, the medical culture and other special facilities lighting, bar, dance hall and other places of entertainment lighting atmosphere.
