Product Details:
Payment & Shipping Terms:
|
| Model: | RT-1 | Warranty: | 1 Year,12 Months |
|---|---|---|---|
| Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
| Power Supply: | 380V 50HZ | Condition: | 100% Original,Brand-new |
| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine | Weight: | 1200KG |
| Mounting Speed: | 40000 CPH | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Dimension: | 1200*1930*1500mm |
| High Light: | 380V SMT Pick Place Machine,40K CPH SMT Pick Place Machine,LED Lens SMT Chip Mounter Machine |
||

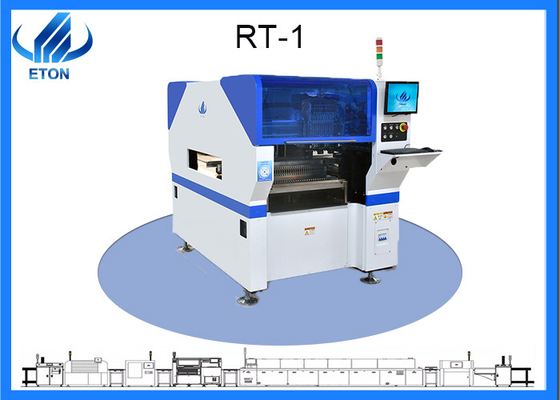

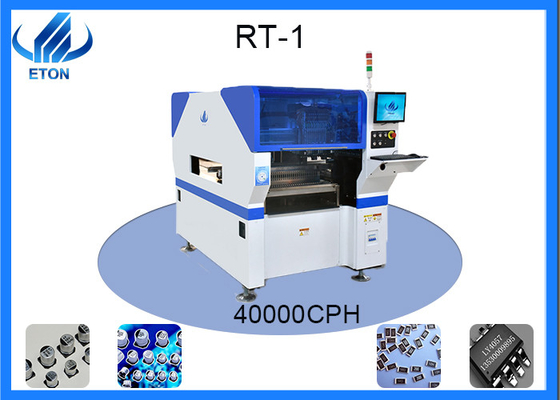

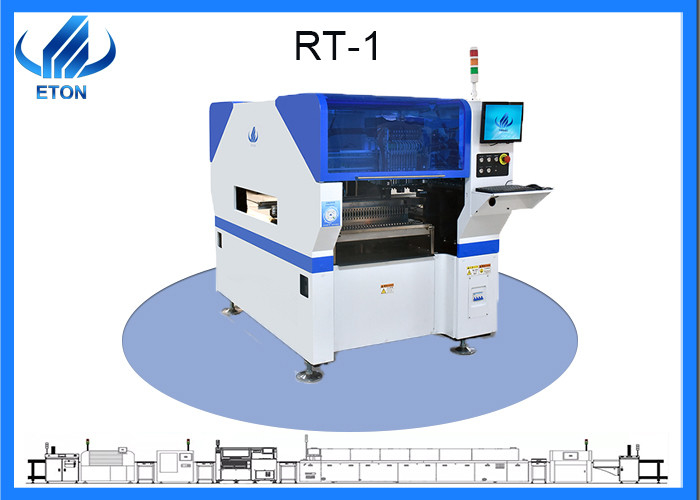

SMT Multifunctional pick and place machine mounting for led lens chip making machine
Specification:
Dimension:1200*1930*1500mm
Total Weight:2000kg
PCB Length Width:Max:450*350mm Min:80*80mm
PCB Thickness:0.1-6mm
PCB Clamping:Pneumatic
Mounting Mode:Group picking and separate placingseparate picking and separate placing
No. of Camera:2 PCS
Mounting Precision:±0.04mm
Mounting Height:≦15mm
Mounting Speed:40000 CPH
Components:LED,capacitors,resistors,shapedcomponents, etc.
Power Consumption:4kw
No. of Feeders Station:32pcs
No. of nozzles:10pcs
Transmission Speed:＞1000mm/sec
Production line
1.electronic products pursue miniaturization, previously used perforated plug-in components have been unable to shrink
2.Mass production, automation, low-cost, high-volume, high-quality products to meet customer needs and enhance market competitiveness.
3.the List of semiconductor materials technology revolution is imperative
Lens for street light
Glass lens for street lamp has the characteristics of high temperature resistance and high penetration, but the glass quality is heavy, fragile, high cost, and so on. • The penetration rate of PC and PMMA is second only to that of glass, and the temperature resistance of PC and PMMA is not as good as that of glass. Furthermore, PC and PMMA have significant advantages in terms of materials and production costs. Because different roads have different optical requirements, such as: Street lamp height, distance between street lamp poles, the type of road, so the requirements of street lamp lens angle are not the same. Generally speaking, the street lamp lens focusing angle specifications are: 60 degrees, 80 degrees, 100 degrees, 120 degrees several. Circular spot: generally used in the courtyard area road; exposure and illumination requirements are not very high. Oval-shaped spot: generally used in motor vehicles or non-motor vehicle lane, effective effect of rectangular spot: applied to the motor vehicle lane, focused light evenly distributed on the road, uniform spot.
FAQ
Q:Do you have wave soldering machine?
A:Sorry, at present, we are the manufacturer of pick and place machine, but also provide the related SMT machine, such as reflow oven, stencil printer, conveyor, loader machine and so on.
Q:Can i visit the production site of your machines in India?
A:i have to ask my client. After all,this is our customer’s factory.we cant not make decisions for my clients. I think that you wouldn’t want your competitors visit your manufacturing site.please understand.
