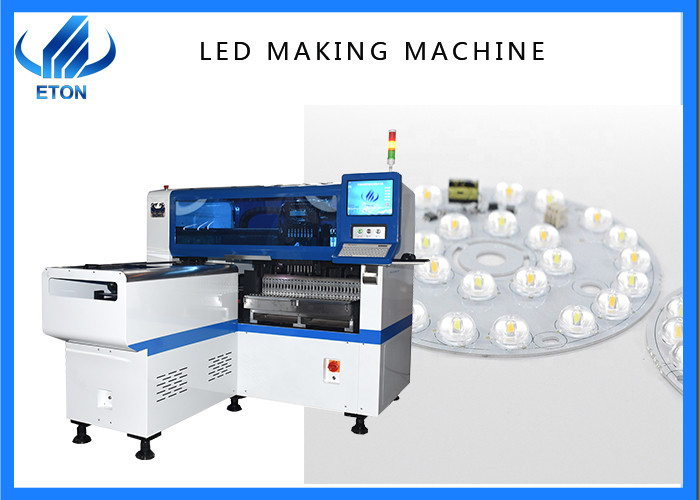

led flood light pcb mounting pick and place machine

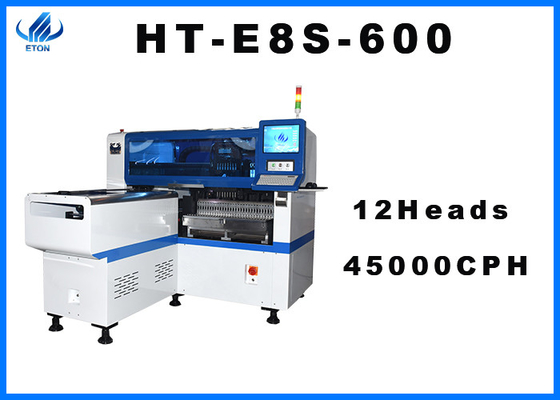

Introduction of E8S-600
1. The size of the largest PCB of e8s-600 is 600 * 500mm, which is suitable for small boards

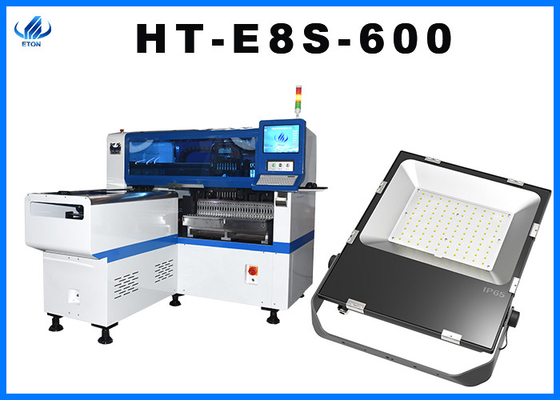

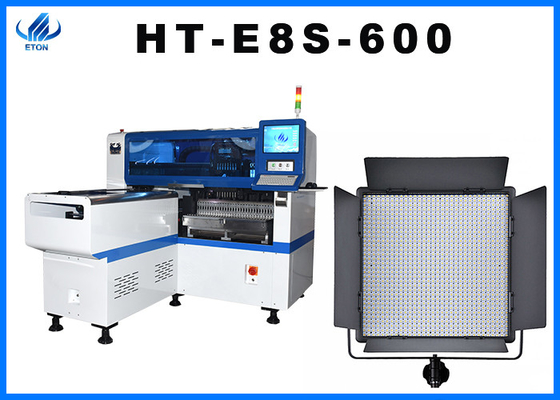

2. E8s-600 is suitable for making various LED lights and drivers, such as panel lights, downlights, street lights, light tubes, soft light strips, display screens, drivers, etc
3. The e8s-600x and y-axis are all linear motors, which make the mounting accuracy higher, the service life longer and the production cost minimized
4. The machine parts are all of the world's top brands, such as the drag chain of eagles, the grating ruler of Renishaw, and the camera of Hikvision
Technical parameter
| Model | HT-E8S-600 |
| Dimension | |
| Length | 1550 mm |
| Width | 1650 mm |
| Height | 1550 mm |
| Total Weight | 1500 kg |
| PCB | |
| PCB Length Width | Max:600*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 2 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 45000 CPH |
| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
| Power | 380AC 50HZ |
| Power Consumption | 4 KW |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max length :600 mm |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Both direction (option) |
| Transmission Mode | Auto online drive |
| Air supply | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
Do you want to know the price? Please contact YOLY: WhatsApp / wechat: 008613823702034

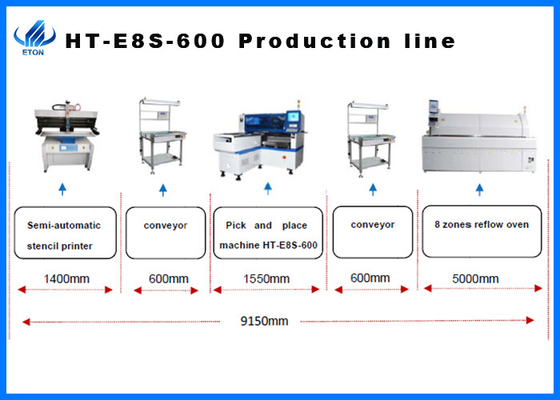

The equipment needed for making floodlights includes printing machine, docking station, mounter and reflow soldering
Function of printing machine: use steel mesh to leak solder paste onto the solder pad of PCB board to prepare for component mounting
Docking station: transmission PCB board, with buffer function
Mounter: mount components to the designated position of PCB
Reflow soldering: high temperature heating makes the solder paste melt, so that components and PCB boards can be better mounted together
Introduction to floodlights
Floodlights are not spotlights, projection lights or spotlights. The floodlight produces highly diffused and directionless light instead of the light beam with clear outline, so the shadow generated is soft and transparent. When it is used for object illumination, the illumination attenuation speed is much slower than when it is used for spotlight illumination. Some floodlights with very slow illumination attenuation look like a light source without shadow. The spotlight projects a directional and well-defined light beam to illuminate a specific area.
