Product Details:
Payment & Shipping Terms:
|
| Model: | YT202S | Length: | 2788mm |
|---|---|---|---|
| Width: | 1686mm | Height: | 1375mm |
| Total Weight: | 1700kg | Max Pcb Size: | 500*450mm |
| High Light: | LED lights smt placement machine,20 Heads smt placement machine,Dual Mode Group LED Mounting Machine |
||

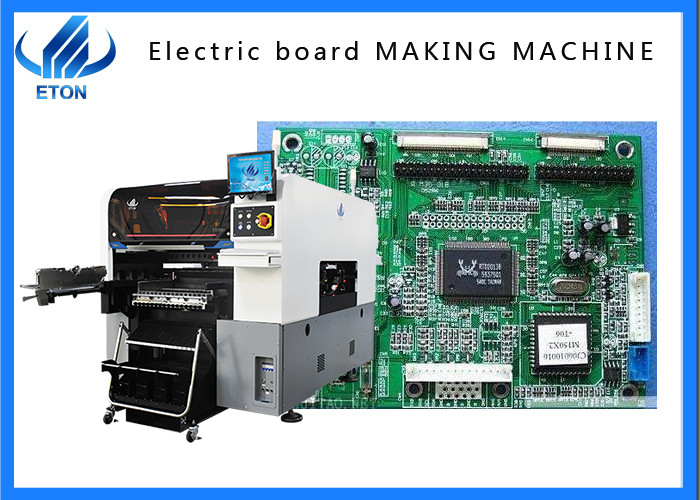

LED light pcb processing pick and place machine
Machine Introduction

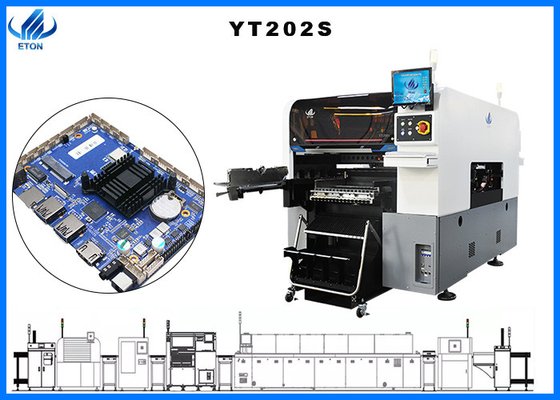

1.Yt202s dual-mode group, , suitable for the largest PCB board size of 500 * 450mm
Suitable for all kinds of LED lamps, LED bulb, DOB bulb, panel lamp, downlight, street lamp, display screen, circuit board, etc
2.The machine shell of yt202s is black and white. The camera used by yt202s is the top brand in China - Hikvision. The machine shell is designed by itself. The X and Y axes are linear motors. The linear motors make the mounting accuracy higher, the service life longer, and the production cost minimized. This increases the production plan

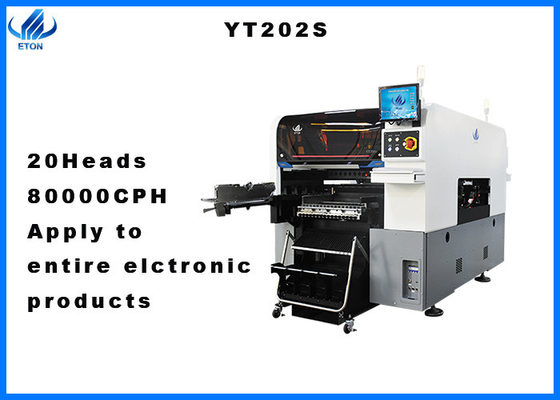

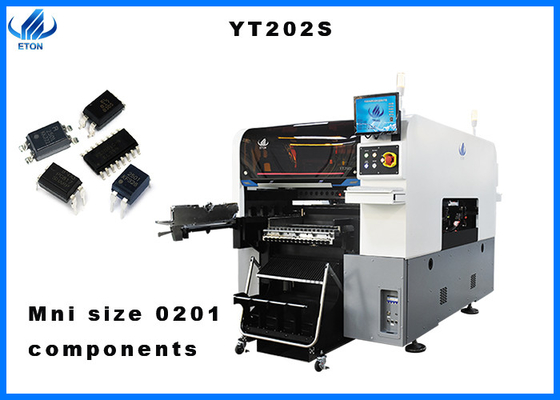

3.Yt202s20 mounting heads, with a capacity of 80000cph, and the smallest part suitable for mounting is 0201. It can identify BGA, CSP and other ball grid arrays
Equipped with double headed intelligent feeder and trolley, it realizes no waiting for mounting, no waiting for feeding and feeding, and greatly improves production efficiency
Two arms and two heads, 10 suction nozzles for each head, 20 suction nozzles for each head, flexible PCB processing capacity, can produce two different products at the same time, when one head stops working, the other head will not be affected.
Technical parameter
| PCB板尺寸/PCB sized* W) | 最大尺寸Max size:单板500mm*450mm(single PCB) 双板500mm*300mm(double PCB) 最小尺寸Min size: 50mm*50mm |
| PCB板厚度/PCB thickness | 0.5-4.5mm |
| PCB板固定方法/PCB clamping | 气缸夹板,轨道宽度可调/Cylinder clamping, track width adjustable |
| 定轨方式/Rail | 双轨双臂(1 轨4轨为固定轨道)/2 Rail,2 gantries(Rail 1,4 are fixed rail) |
| 系统/System | Windows 7 |
| 软件/Software | 自主研发/ R&D independently |
| 生产管理MES系统/Production management MES system | 提供要求定制(选配项)/ Customized(Option) |
| 离线编程/Off-line programming | W/Available |
| 相机数量/No. of camera | 4套/4 sets (数字相机 Digital camera ) |
| 固定飞拍识别元器件/Bottom vision camera recognition | |
| 视觉对位 +MARK校正/Vision alignment+Mark correction | |
| 重复精度/Repeat precision | ± 0.02mm |
| 贴片高度/Mounting height | w20mm |
| 贴片速度/Mounting speed | 80000CPH (本公司最优条件下)(Optimum speed) |

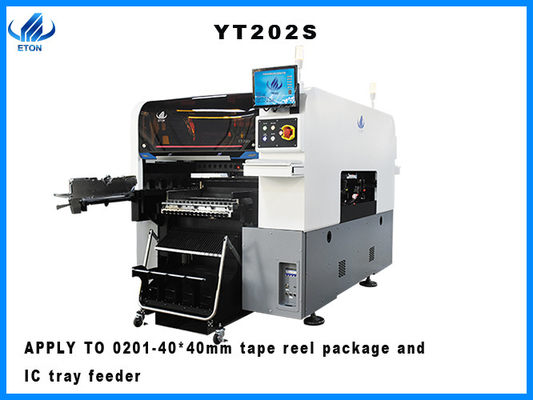

| 贴装零件范围/Components range |
0201〜40*40mm封装料及IC背包料 Min 0201 ~40*40mm Tape reel packages and IC tray feeder etc. |
| 使用电源及功率/Power | 380AC 50HZ 6KW |
| 使用环境/Operating environment | 23°C 土 3°C |
| 传输方向/T「ansmission direction | 标准(单向)/Standard: Single direction |
| 传送方式/Transmission mode | 在线/Online drive |
| 定位方式/Position mode | 光学/Optical |
| 耗气量/Ai「consumption | 0.4-0.6mpa ( 4-6kgf/cm2) 150N/min |
| 电气控制/Electrical control | ETON 自主研发/Independent research and development by ETON |
| 运动控制卡模块 1 套/Motion control card module 1 set | ETON 自主研发/Independent research and development by ETON |
| XYZ轴驱动方式/X,Y,Z Axis drive way | 高端磁悬浮电机+伺服电机/High-end magnetic linear motor +Servo motor |
| 可放置送料器数＞/No. of Feeder station | 双边送料器台车站位32PCS,可装物料64盘(单边送料器台车站位16PCS, 可装物料32盘),根据产品需要送料器台车与IC背包可自由切换(背包选配) / Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feederdC tray feeder:Option) |
| 吸嘴安装数m/No. of Heads | 双边20PCS(单边 10PCS)/Double side:20pcs(single side:10pcs) |
| 送料方式/Feeding way | 双头智能送料器/Intelligent Double head Feeder |
ETON Introduction
Eton has more than 10 years of experience in the SMT industry, has 52000 square meters of Industrial Park in Jiangxi Province, has its own independent R & D team, and supports CNC & OEM
Our service
As long as you buy our machines, we support engineers to install them on-site free of charge. During the warranty period, all parts are damaged and replaced free of charge. We support online video teaching 24 hours a day, and support lifelong free software update service. We have local engineers and offices in India and Egypt, and the service is very convenient.
FAQ
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
