Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Length: | 2550mm | Width: | 1650mm |
| Height: | 1550mm | Total Weight: | 1700kg |
| High Light: | DOB Bulbs SMT pick place machine,LED Tubes SMT pick place machine,0402 component SMT Mounting Machine |
||

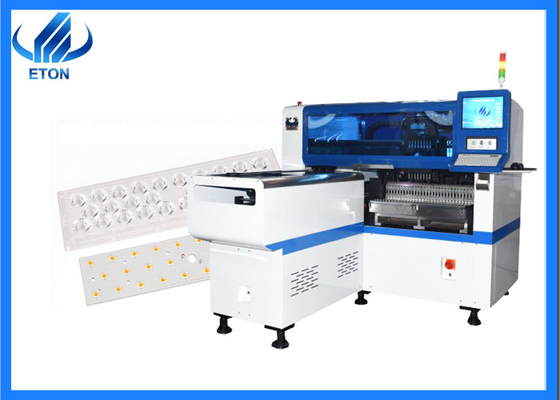

SMT pick and place machine with strong function for All LED lights
Product Description
HT-E8S-1200 SMT pick and place machine is powerful:

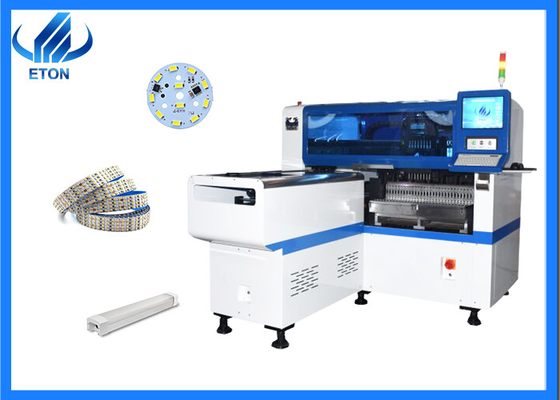

It can be applied to all LED lights, such as DOB bulbs, LED tubes, LED strips, displays, simple drivers and more.
There are various components that can be mounted, such as capacitors, resistors, ICs and special-shaped components, etc. The minimum component is 0402, and the highest component does not exceed 15mm.
The single module and single system mount the head, but the nozzle has 12PCS, and the feeder has 28PCS, which can transfer a lot of materials.
Parameter
| PCB | |
| PCB Length Width | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| Vision System | |
| No. of Camera | 2 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 45000 CPH |
| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
| Power | 380AC 50HZ |
| Power Consumption | 4 KW |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max length :1200 mm |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Both direction (option) |
| Transmission Mode | Auto online drive |
| Air supply | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
About us
Shenzhen ETON automation equipment Co., Ltd., established in 2011, is a manufacturer and process solution provider focusing on the R & D, production, sales and service of SMT high-speed mounter and SMT peripheral automation equipment, such as LED lamp mounter, automatic visual printer, automatic high-speed dispensing machine, etc. The products are easy to operate and the follow-up service is first-class. We have cooperated with many LED lamp manufacturers all over the world.
Market share
80% of the LED lamp manufacturers in the Chinese market are our customers, including internationally renowned brands such as OPPLE, TCL, NVC and so on.
At the same time, we continue to develop overseas markets, and have exported to more than 20 countries and regions. We have also established offices in major international markets and are expanding continuously, and we also have local engineers. No matter which country you are in, we can send Engineer on-site service.
Service
Maintenance period 1 year
●One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
●Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
●Visit clients regularly. We attend the different exhibitions in different cities. every year, at the same time, we will visit local
clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
●We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
●We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service
timely with our engineers.
●According to your, needs, dedicated senior engineer will come to your factory for free install and training you how to
operate the machine.
