Product Details:
Payment & Shipping Terms:
|
Model: | YT202 | Warranty: | 1 Year,12 Months |
---|---|---|---|
Applicable Components: | SOP | Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle |
Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine | Power Supply: | 380V 50HZ |
Condition: | New,100% Original,Brand-new | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,SMT Shooter Machine |
Weight: | 1700KG | Mounting Speed: | 90000 CPH |
Type: | Automatic | Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED |
Dimension: | 2317*1376*1762mm | ||
High Light: | Led Industrial SMT Chip Mounter,SMT Chip Mounter 90000 CPH,LED Display SMT Production Line Machine |

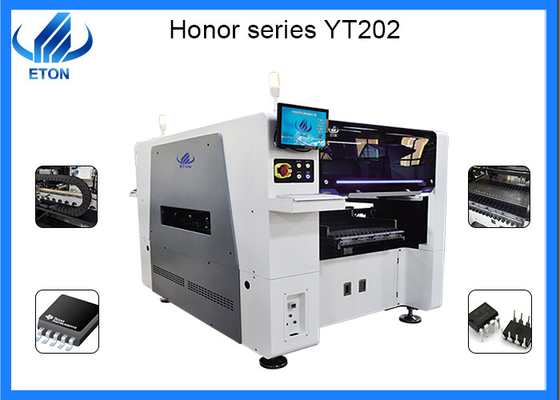

SMT chip making machine Semi-auto SMT production machinery line in led industrial for led display moungting
Product Details
Model Number:YT202
Dimension:2317*1376*1762mm
Heads:20pcs
Weight:1700kg

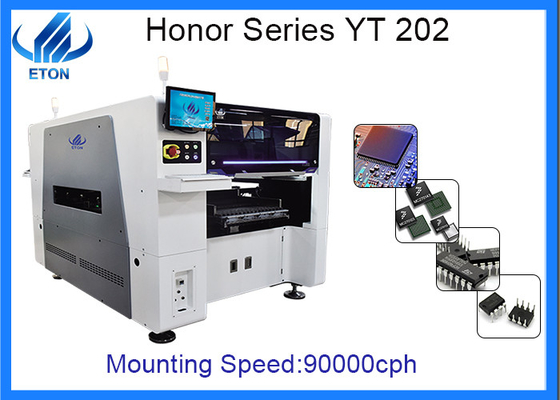

Mounting Speed:90000CPH
Power:380AC 50HZ
Feeder:32pcs double module
PCB size:
MAX:500*450mm(single PCB)/500*300mm(double PCB)
MIN:50*50mm
PCB thickness:0.5-4.5mm
Core Components:Motor
Brand:ETON
Visual camera:4set of imported camera
Place of Origin:Guangdong, China
Warranty :1 Year
SMT line process
Step 1:
Semiautomatic Stencil Printer Machine
In the SMT line for print the solder paste on the PCB.
Max PCB thickness:0.5-4.5 mm
Dimension: 2788*1686*1375 mm
Weight: 1700 kg
Very easy for operate and can be set multiple printing methods
Step 2: Automatic Pick And Place Machine
Pick and place machine is the most important machine in SMT Line, it directly influence the line capacity.
Yt202s is honor series pick and place machine, mounting Resistor, Capacitor, Bridge rectifier, etc.
Step 3 :Conveyor Machine
Transfer PCB boards between two machines, play a role in buffering and testing
One section of control , two sensors.
One set of electric control box
Step 4: Reflow Oven Machine
Heating system adopts high efficiency and energy saving nickel heat pipe, radiant power peak wavelength 4UM, with curved reflector cover, high thermal efficiency, fast temperature rise, special forced hot air circulation structure system, so that PCB and components are heated more firmly
After-sales service system
the whole machine warranty for 1 year, for Life!
Regularly visit customers to understand the use of the situation, collect customer opinions!
Regularly provide customers with the latest production technology and equipment information!
Classification of LED displays
By environment:
1.Indoor screen, the area is generally more than ten square meters below, point density is higher, in non-direct sunlight or lighting environment to use, viewing distance in a few meters outside the screen body does not have sealed waterproof ability. The diameter of luminescent spot is small, generally 3-8mm. The corresponding spacing is generally P3.91/P2.5, P0.6 or P0.9 LED display dot spacing is very small, the highest price, viewing effect comparable to LCD, good color, low energy consumption. 2.Outdoor screen, the area generally from dozens or even hundreds of square meters, point density is thinner, luminance in 3000-5000 CD per square meter, can be used in direct sunlight conditions, viewing distance of tens of meters away, the screen body has good wind and rain resistance and lightning resistance. The basic unit of outdoor screen luminescence is pixel, and the center diameter of the luminescence point is bigger, such as P10MM, P12MM, P16MM, P20MM, P24MM, P26MM, etc. . 3.Semi-outdoor screen, between outdoor and indoor, with high luminance, can be used in non-direct sunlight outside, the screen body has a certain seal, generally under the eaves or window.
