Model: | YT101s | Warranty: | 1 Year,12 Months |
---|---|---|---|
Applicable Components: | SOP | Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle |
Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine | Power Supply: | 380V 50HZ |
Condition: | New,100% Original,Brand-new | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine |
Weight: | 1700KG | Mounting Speed: | 40000 CPH |
Type: | Automatic | Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED |
Dimension: | 2154*1376*1762mm | ||
High Light: | SMT Pick And Place Machine 50 HZ,10pcs Heads SMT Chip Mounter,LED Displays SMT Chip Mounter |

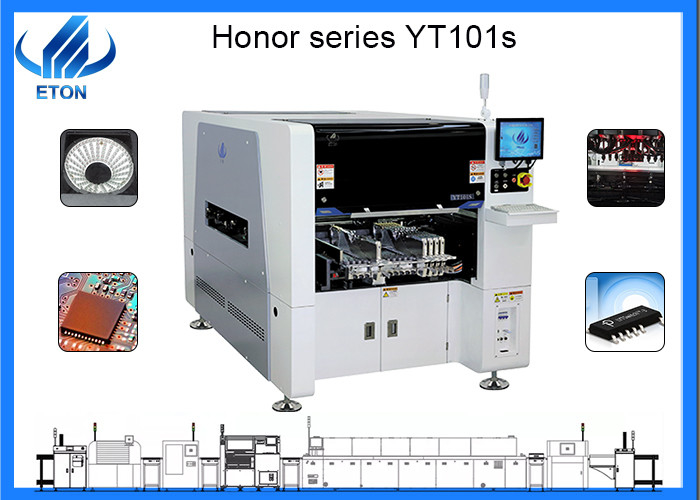

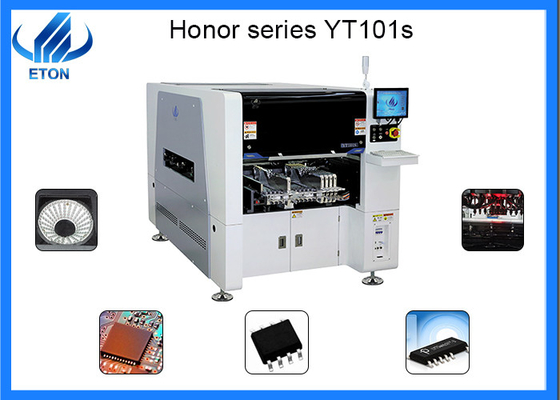

SMT pick and place machine the latest chip mounter for led light mounting for led display
Product Details
Model Number:YT101s
Dimension:2154*1376*1762mm
Component range:0201-40 *40mm package and IC etc.
PCB size:MAX:500*350mm/MIN:50*50mm
PCB thickness:0.5-4.5mm
No.of camera:2 sets
Heads:10pcs
Weight:1700kg
Speed:40000CPH
Power:380AC 50HZ
Feeder:16pcs
Core Components:Motor
Brand:ETON
Our company profile
ETON not only takes the leading position in the field of photoelectric high-speed SMT, but also has made a breakthrough in the field of SMT high-speed SMT SMT, and successfully developed several SMT high-speed Universal SMT with high cost-performance ratio, products are widely used in lighting, display, electronics, driving power, home appliances, new energy and other industries. Looking to the future, ETON will“Create national well-known brands, Build International first-class Enterprises” as the goal, we are committed to continuously providing“Smarter, more professional, more efficient and lower consumption” products and services to the market.
Requirements of producing led display
1. LED screen production process
a) cleaning:using ultrasonic cleaning PCB or LBD bracket, and into Jade
B)mounting:at the bottom of the LED core electrodes with silver after expansion, the expansion of the core placed on the spinneret, under the microscope with spinneret will be installed on the core one by one PCB or LED stand on the corresponding solder pad, and then interested so that the silver glue cure.
C) pressure welding:Aluminum or gold wire welder to connect the electrodes to the LED core to act as current injection leads. LED directly installed on the PCB, generally using aluminum wire welding machine.
D) packaging: by dispensing glue, with epoxy lattice LED core and soldering wire protection. Dispensing glue on PCB board has strict requirements on the shape of solidified colloid, which is directly related to the brightness of the finished product of backlight. This process will also take on the task of phosphor.
E) soldering:if the backlight is an SMD-LED or other encapsulated LED, the LED needs to be soldered to the PCB prior to assembly.
F) cutting film:with the punch die-cutting backlight required by a variety of loose film, reflective film, and so on.
G)assembly:according to the requirements of the drawings, the backlight materials will be manually installed in the correct position.
H) test:check the photoelectric parameters of the backlight and light uniformity is good.
FAQ
Q:which kind of raw material should i prepared for SMT line?
A:you need to prepared mainly include:PCB, Solder paste, Components, Feeders, Nozzles etc.
Q:Can you support whole SMT line?
A:yes, we can provide whole SMT line solution if you want, we are professional in this field.
