Product Details:
Payment & Shipping Terms:
|
Model: | YT202s | Warranty: | 1 Year,12 Months |
---|---|---|---|
Applicable Components: | SOP | Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle |
Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine | Power Supply: | 380V 50HZ |
Condition: | New,100% Original,Brand-new | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine |
Weight: | 1700KG | Mounting Speed: | 80000 CPH |
Type: | Automatic | Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED |
Dimension: | 2788*1686*1375mm | ||
High Light: | SMT Pick And Place Machine 6 KW,LED Displsy SMT Pick And Place Machine,led industry SMT Mounting Machine |

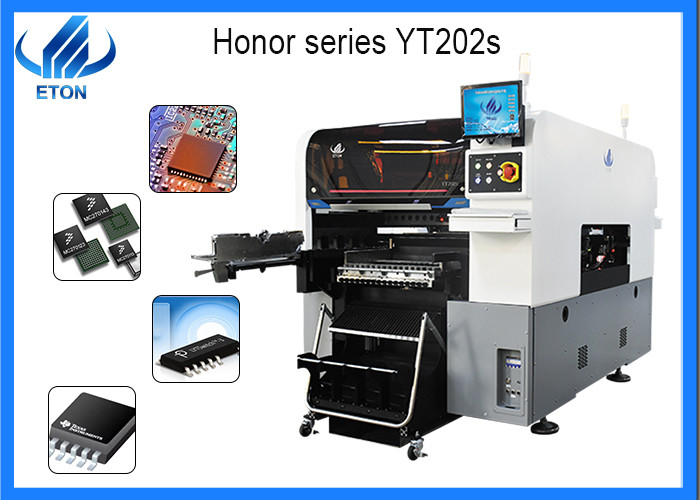

The newest SMT pick and place machine in led industry for mounting led displsy
Main parameter
Showroom Location:Turkey, India
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Warranty of core components:1 Year
Core Components:R&D by Eton
Place of Origin:Guangdong, China
Brand Name:ETON
Model Number:YT202S
Warranty:1 Year, 1 year
Place of origin:China
Dimension:2788*1686*1375mm
Total weight:1700kg
Power:380AC 50HZ
Power consumption:6KW

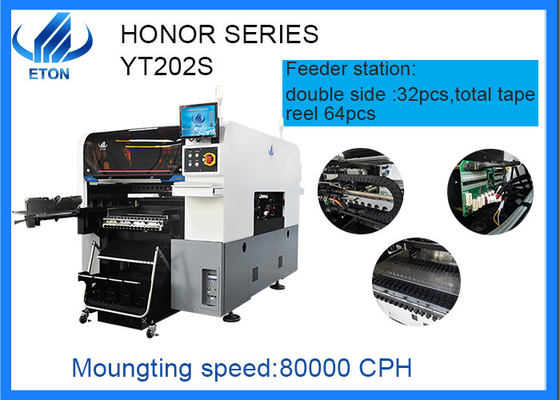

Mounting speed:80000CPH
Mounting height:<=20mm
Visual camera:4sets of imported camera
After Warranty Service:Video technical support, Online support
Local Service Location:Turkey, India
After-sales Service Provided:Video technical support, Online support
Exclusive Patented Technology
►Electronic feeder feeding system
►Vision alignment flight identification,mark correction
►Non-stop material re-loading function
►Auto-optimization after coordinates generated ,etc.
Classification of LED displays
1. According to the display devices: digital display screen, suitable for the production of clock screen, interest rate screen display digital LED dot matrix display screen, suitable for playing text, image information
Production Requirements
(1)Virtual Welding Control:LED display in the LED is not bright, there are often more than 50% probability for various types of virtual welding caused by virtual welding, such as LED pin virtual welding, IC pin virtual welding, virtual welding needle row, etc. . The improvement of these problems should be strictly improved process and strengthen quality inspection to solve. The vibration test before leaving the factory is also a good inspection method. (2)Heat dissipation settings:LED work will heat, high temperature will affect the decay rate and stability of LED, so PCB board heat dissipation design, box ventilation heat dissipation design will affect the performance of LED.
