Product Details:
Payment & Shipping Terms:
|
| Model: | HT-E8D-1200 | Warranty: | 1 Year,12 Months |
|---|---|---|---|
| Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
| Power Supply: | 380V 50HZ | Condition: | New,100% Original,Brand-new |
| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine | Weight: | 2500KG |
| Mounting Speed: | 90000 CPH | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Dimension: | 3150*2250*1650mm |
| High Light: | led machinery SMT Mounting Machine,Driver Display SMT Mounting Machine,LED Chips SMT Pick And Place Machine |
||

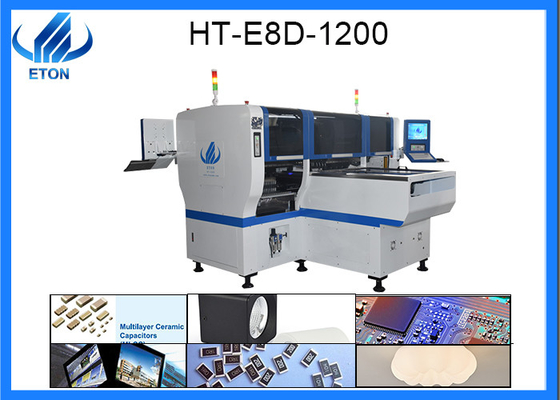

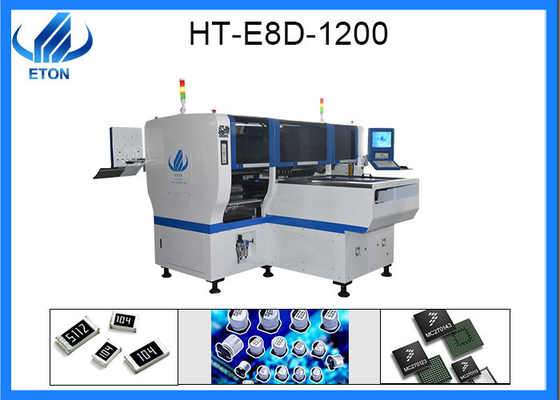

SMT pick and place machine in led machinery for mounting led chips and driver display
Product Details
Model Number:E8D-1200
Dimension:3150*2250*1650mm
Weight:2500kg
Mounting Speed:90000CPH
Power:380AC 50HZ
Core Components:Motor
Heads:24pcs
Feeder:48pcs double module
Brand:ETON
Visual camera:4set of imported camera
Place of Origin:Guangdong, China
Warranty :1 Year
Machinery Test Report:Provided
Delivery:Within 30 Days
Supply Ability:50 Sets per Month
Main Parts
(1)Software : Machine software is independently developed by our company, which can offer clients free life-long upgrade and update
(2):Smart double-head tape feeder
Support Y series double head intelligent electric tape reel feeder,by optically correcting the feeding position of the component,it can achieve stable,accurate and high-speed feeding.
(3):Drag chain
Imported from Germany IGUS
It can provide traction and protection for built-in cables and air pipes. During running,it has low noise, wear resistance, and high-speed movement.
(4): Guide rail
Imported from Japan THK
Support and guide moving parts, reciprocating linear motion in a given direction,used in mechanical structures with high precision requirements.
(5)Mark camera
Hik vision brand from China top one
High quality Mark camera automatically recognizes the Mark points, and the software automatically recognizes and corrects and compensates.
SMT definition
SMT is a surface-mount technology, electronic assembly industry is currently the most popular one of the technology and process. SMT SMT refers to the PCB-based processing of a series of short process
SMT advantage
1. High assembly density, small size and light weight of electronic products
2. High reliability, strong earthquake resistance. Solder joint defect rate is lower.
3. The high frequency characteristic is good, reduces the electromagnetic and the radio frequency interference
4. Easy to realize automation, improve production efficiency. Reduce costs by 30% -50% . Save material, energy,
5. equipment, manpower, time, etc. .
