Product Details:
Payment & Shipping Terms:
|
Model: | HT-F7S | Warranty: | 1 Year,12 Months |
---|---|---|---|
Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
Power Supply: | 380V 50HZ | Condition: | New,100% Original,Brand-new |
Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine | Weight: | 1700KG |
Mounting Speed: | 150000-180000cph | Type: | Automatic |
Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Dimension: | 2700*2300*1550mm |

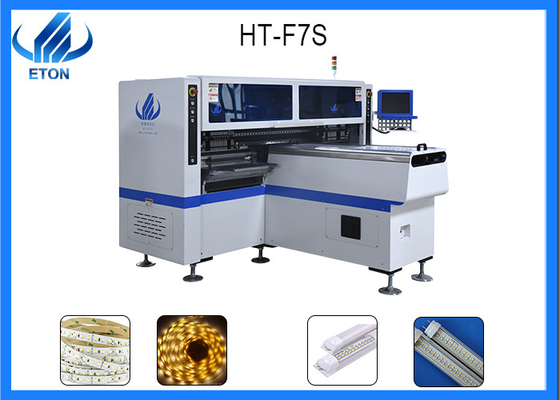

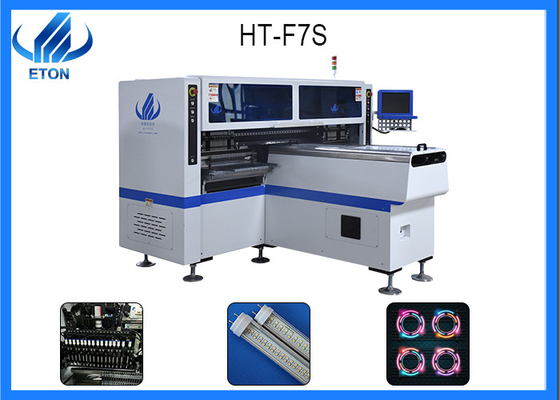

SMT pick and place machine in led light industrial for led tube mounting and production line
Technical parameter
Dimension:2700*2300*1550mm
Total Weight:1700kg
PCB Length Width:Max:1200*330mm Min:100*100mm
PCB Thickness:0.5-5mm
No.of Feeder:68pcs
No.of Head:34pcs
PCB Clamping:Adjustable pressure pneumatic
Mounting Mode:Group picking and separate placingseparate picking and separate placing
Software:R&D independently
Mounting Precision:±0.02mm
Mounting Height:<=5mm (Automatic Changing)
Mounting Speed:150000-180000 CPH
Components:LED,capacitors,resistors,rectifier etc.
Transmission Direction:Single direction (option)
SMT LINE
Features:
1.high assembly density, small size and light weight of electronic products, the size and weight of SMT components is only about 1/10 of the traditional plug-in components, after the general use of SMT, electronic products reduce 40% ~ 60% of the volume, weight, 60% ~ 80% .
2.High reliability and anti-vibration ability. Low solder joint defect rate.
3.Good High frequency characteristic.Reduced electromagnetic and radio frequency interference.
4.easy to realize automation, improve production efficiency. Reduce cost by 30% ~ 50%.Save material,energy, equipment, manpower, time and so on.
Led lamp tube cover
Led lamp tube cover is basically 2/1 aluminum alloy + 1/2PC cover, basically no use of glass cover. Are produced by PC particle processing with diffusion powder made of PC cover is roughly divided into the following categories: transparent cover, transparent fringe cover, diffusion fringe cover, milky white diffusion cover.
(1)transparent cover, as the name implies is a transparent PC cover, this cover made of the lamp can see the beads, very bright, easy to faint, does not meet the requirements of human light. The transmittance is good, and can reach 91% transmittance.
(2) transparent stripe cover, this cover is translucent cover, can scatter the light, but the light is not uniform enough, not dazzling, light transmittance of about 88% .
(3) the diffusion stripe cover, also called thick stripe cover, the light transmittance of this cover is about 86% , the products made by this cover don't look like dark area, and avoid the influence of dark area skillfully.
(4) milky white diffusion cover, this cover is also on the market most manufacturers use the cover, the cover of the general light transmittance of 83-85% .
