Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| PCB Size: | MAX:1200*300mm MIN:100*100mm | Mounting Speed: | 90000CPH |

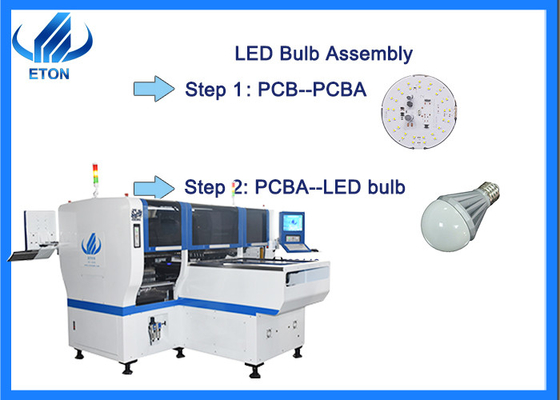

SMT pick and place machine for all sorts of LED lights and PCB drivers and LEN
Product Description

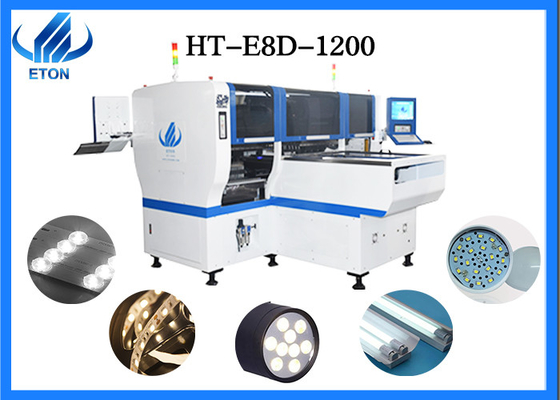

HT-E8D-1200 SMT pick and place machine consists of two modules and two systems, each system is controlled independently and does not interfere with each other, so it can produce two different PCB boards at the same time, and under ideal conditions, the production capacity can be Reach 90000CPH.
There are 12 suction nozzles on one side and 24 suction nozzles on both sides. Each suction nozzle is controlled by an independent servo motor, and the movement of the entire head is controlled by a linear motor.
Feature
Non-stop refill function
Automatic identification and detection of material leakage
Powerful and widely used, it can be applied to all LED lights, outdoor lights, indoor lights, DOB bulbs, street lights, light tubes, light strips, etc.
The smallest SMD component is 0402 and the highest SMD component is 15mm.
Parameter
| No. of Camera | 4 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 90000 CPH |
| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 48 PCS |
| No. of nozzles | 24 PCS |
| Power | 380AC 50HZ |
| Power Consumption | 8 KW |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max length :1200 mm |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Both direction (option) |
| Transmission Mode | Auto online drive |
| Air supply | 0.4-0.6mpa (4-6kgf/cm2)300N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 2 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
About us
Looking forward to the future and providing value, we are committed to continuously providing "smarter, more professional, more efficient and lower consumption" products and services for the market. The following are the comments of some partners on us:
| The ETON service is very special, engineers are very patient and easy to use machines.—— Fikret |
|
ETON machine mounting speed is very fast, the quality is also very good, long life, after-sales service is very comprehensive, Worth having. —— Sanjay
|
|
A very functional machine can be a lamp, a lamp and a driver, a very smart stick! — cagin |
Patents and Honor
Professional Efficient Technology Development Innovation, We got 9 invention Patents, 112 practical patents, 12 software copyrights. Moreover, ETON has invented the fastest automatic pick and the place machine with a speed of 500000 CPH.
ETON is leading position in the filed of SMT pick and place machine, aim to “Create a well-known national brand and build a word-class enterprise”.
FAQ
Q1: Who are you?
A:We are Shenzhen ETON automation equipment Co., Ltd., the global leader of photoelectric high-speed mounter and the manufacturing supplier of SMT Mounter and peripheral equipment.
Q2: Why should I choose to buy from you instead of from other suppliers?
A:Choosing us has the advantages of products, R & D and technical consultants. We will try our best to help you solve your problems.
Q3: How do you guarantee product quality?
A:We have special departments for the purchase of parts and the control of product quality. Of course, your technical consultant will follow up in the whole process of production to ensure product quality.
