Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Brand: | ETON |
|---|---|---|---|
| Color: | Write And Grey | Heads: | 20PCS |
| Capacity: | 80000 CPH | PCB Size: | MAX Size: 500*450mm(single PCB) 500*300MM(double PCB) MIN Size: 50*50mm |
| System: | Windows 7 | Software: | R&D Independently |

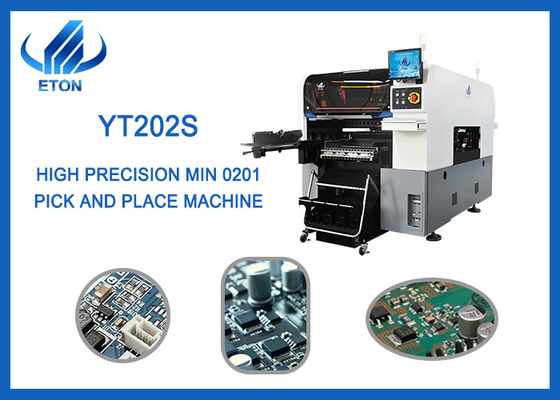

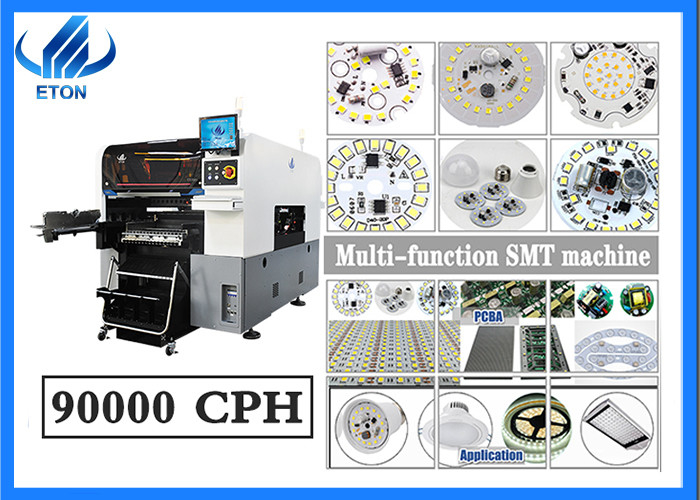

automatic led bulb assembly machine for electric board with high precision
The Parameter of automatic led bulb assembly machine
| mounting speed | 80000 CPH ( optimum speed) | No. Of heads | Double side: 20 PCS(single side: 10 PCS) |
| Components range | Min 0201-40*40mm tape reel packages and IC tray feeder etc | Feeding way | Intelligent double head feeder |
| PCB size |
MAX size: 500*450 mm (single PCB) 500*300MM(double PCB) MIN size: 50*50mm |
No. Of camera | 4 set (digital camera) |
| PCB thickness | 0.5-4.5mm | PCB clamping | Cylinder clamping, track width adjustable |
| No. Of feeder station | Double side docking cart slot 32 PCS, tape reel packages : 64PCS(single side docking cart slot 16 PCS, tape reel package: 32PCS),freely switching between docking cart and IC tray feeder | system | Windows 7 |
| X,Y,Z Axis drive way | High end magnetic linear motor+ servo motor | software | R&D independently |
The advantages and Feature of automatic led bulb assembly machine
1. Two sets of x-axis and one set of Y-Axis, using high-end Magnetic Levitation Motor;
2. 20 sets of servo motors for Z-Axis independently control the picking and mounting;
3. Four sets of four degree motors for R-Axis independently control 0-360 degree angle; It is realized by 1 control 5;
4. The three-stage track is divided into plate feeding track, mounting track and publishing track, and the motor is realized by 12 sets of integrated motors;
The SMT production line of automatic led bulb assembly machine
For the semi-automatic line, it will be more cost saving and space,it does not need the automatic line so much equipment, in addition, the semi-automatic line is relatively flexible, and can be carried out at the same time with manual insertion.
Company introduction
Shenzhen Eton Automation Equipment Co., Ltd. is a national high-tech enterprise and a dual-soft
enterprise dedicated to the R&D, production, sales and after-sales technical services of SMT high-speed SMT machines.With the rapid development of the automation industry, Eton has become the leading brand of high-speed SMT machines. The products are exported to more than 20 countries and regions such as Korea, India, Vietnam, Tunisia, Egypt and Turkey. Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
FAQ
1. What is SMT Machine?
This is an LED lamp patch machine using surface mount technology.
2. What is your payment terms?
100% payment before delivery or 50% deposit in advance and the rest before shipment.
3. What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
4. What is the maximum height of components that can be mounted on a machine?
The height of the mounting component can reach 36 mm, and the minimum mounting component can be 0402.
5. Whether the machine's after-sale service is guaranteed?
Each of our machines has a one-year warranty and will regularly visit customers for use.
