Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Condition: | New |
---|---|---|---|
Model: | ET-S1200 | PCB Size: | 1200×300 Mm |
Dimension: | (L)1600 X(W)900 X(H)1650 Mm | Stencil Frame Size: | 470×370 Mm~1300×550 Mm (L×W) |
Plate Area: | 1250×320 Mm | Weight: | 360kg |

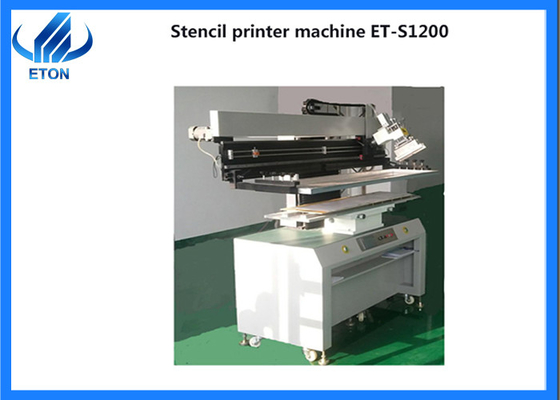

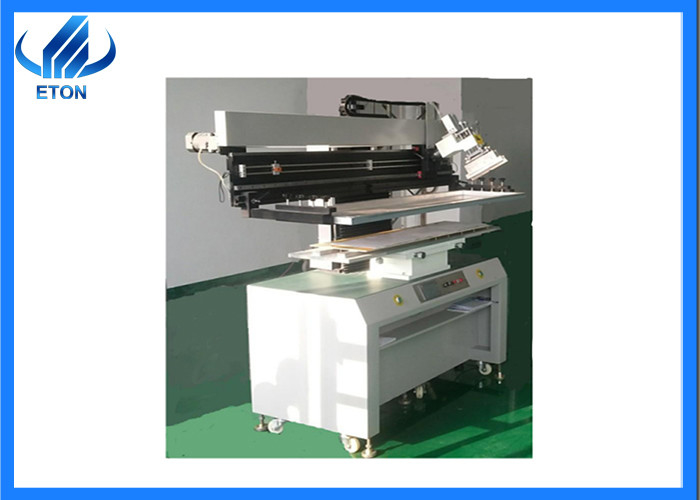

Automatic SMT high speed Max PCB 1200×300 mm stencil printer
Specifications of ET-S1200:
Model | ET-S1200 |
PCB size | 1200×300 mm |
Plate Area | 1250×320 mm |
Stencil Frame Size | 470×370 mm~1300×550 mm (L×W) |
Positioning way | positioning pin |
Scraper Speed | 0-100 mm/sec |
Power | 220V single phase, 50/60 HZ |
Power Consumption | 120 W |
PCB plate thickness | 0.2-2.0 mm |
Plate Trimming | Front/back +/- 10mm Right/Left +/- 10mm |
Printing Precision | +/- 0.05 mm |
Air supply | 5-7 KGF/cm2 |
Weight | 360 kg |
Dimension | (L)1600 x(W)900 x(H)1650 mm |
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors,
that related to the number of the components, the time to send PCB board
and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
