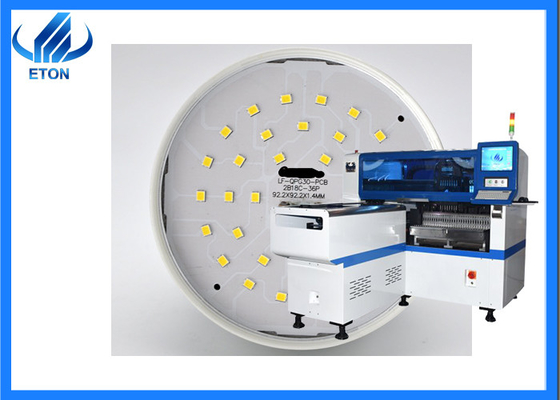

Single SMT pick and place machine module magnetic linear for LED lights

Single SMT pick and place machine module magnetic linear for LED lights
Single SMT pick and place machine module magnetic linear for LED lights Single SMT pick and place machine module magnetic linear for LED lights

Large Image :  Single SMT pick and place machine module magnetic linear for LED lights

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC CE SIRA
Model Number: HT-E8S-1200
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Vacuum wooden box
Supply Ability: 50 PCS/month
Contact Now
Detailed Product Description
Name: Pick And Place Machine Warranty: 1 Year
PCB Size: 1200*500mm Speed: 45000CPH

Singlepick SMT and place machine

module magnetic linear for LED lights



Product Features

  • Automatic optimization after coordinate generation, etc.
  • Mounting components: LED chip , lens, capacitors, resistors, IC and shaped components, etc.(intelligent,use widely)
  • Electronic feeder feeding system.
  • E8S-1200 multi-function placement machineWhich can produce most of the LED products on the marke
High Accuracy Placement accuracy reaches 0.04mm. Component available size:0402 mm. Component height:17mm.

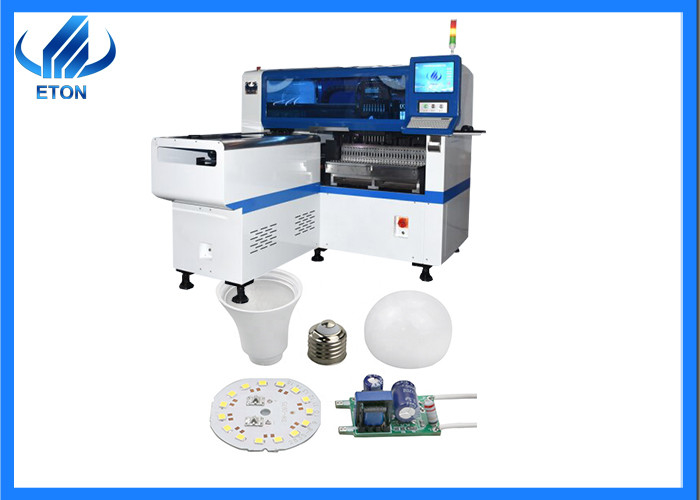

Powerful functions LED light,Power driver,electric board,lens,linear bulb,household appliance,fluorescent light, bulb, ceiling light, panel light, cast light lamp, mining lamp, down light,flexible light strip,tube etc.
Stability 24 hours continuous operation
High quality accessories Imported servo motors, Drag chain, and linear guides are used . High stiffness, high durablility, long lifespan.
Automatic feeding function If there is material leakage or throwing in the production, the machine will automatically replenish the material without manual operation, saving labor
High performance flight recognition visual alignment, taking photos and identifying PCB board positions to ensure patch accuracy.
High Capacity heads pasted on the PCB board at the same time, maximum mounting speed 45000 CPH
Software Independent research and development, eton supports lifelong free upgrades to ensure stable and timely technical support.
Automatic electric feeding to reduce feeding deviation
Magnetic linear motor and servo motor ,Using Israeli technology,Ensure the accuracy of X,Y and Z axes



Parameter

No. of Camera 2 sets of imported camera
Vision for the flight identification, MARK correction
Mounting Precision ±0.04mm
Mounting Height <15mm (Automatic Changing)
Mounting Speed 45000 CPH
Components LED , capacitors, resistors, IC,shaped components, etc.
Components Space 0.2mm
No. of Feeders Station 28 PCS
No. of nozzles 12 PCS
Power 380AC 50HZ
Power Consumption 4 KW
Operating Environment 23℃±3℃
Conveyor transmission Max length :1200 mm
Transmission Speed ＞1000mm/sec
Transmission Direction Both direction (option)
Transmission Mode Auto online drive
Air supply 0.4-0.6mpa (4-6kgf/cm2)150N/min
Electrical control Independent research and development by ETON
X,Y,Z Axis Drive way High-end magnetic linear motor + Servo motor
Feeding way Electric feeder with double motor



Single SMT pick and place machine module magnetic linear for LED lights 0

About us

ETON automation equipment Co., Ltd. is headquartered in Shenzhen and the factory is in Jiangxi Province. We have a factory covering an area of 5000 mu. We are a very powerful SMT machine manufacturing supplier with comprehensive strength. Our products are exported to more than 20 countries such as South Korea, India, Vietnam, Egypt, Turkey, Russia, Brazil and Iran.



FAQ

Q1:What services will you provide when buying your products?

A:Free lifetime software upgrade, free training for your employees until they can master the machine, free replacement of parts during the warranty period, etc



Q2:How to pay after buying the product?

A:For payment, we only support L/C and T/T at present. If you choose T/T, you will have to pay 30% deposit, and the remaining amount will be paid before shipment.
