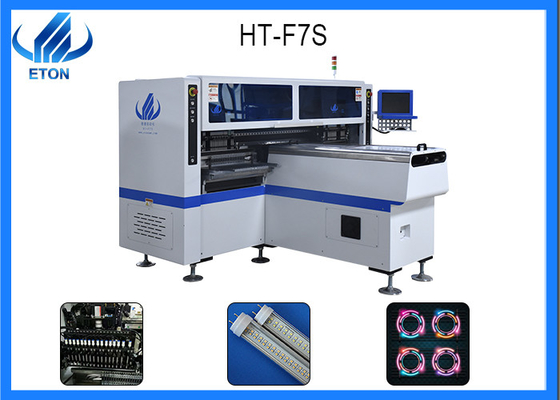

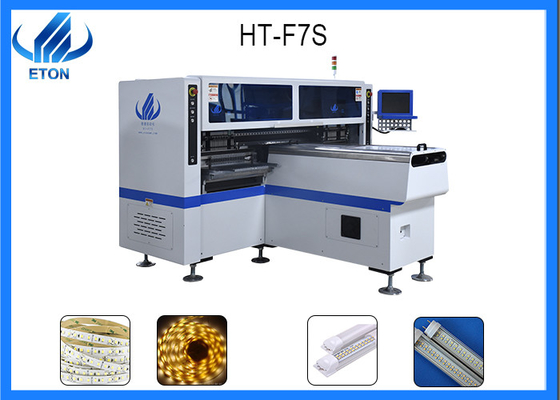

SMT pick and place assembly line in led light industrial for mounting led tube products

SMT pick and place assembly line in led light industrial for mounting led tube products

Technical parameter

Dimension:2700*2300*1550mm

Total Weight:1700kg

PCB Length Width:Max:1200*330mm Min:100*100mm

PCB Thickness:0.5-5mm

No.of Feeder:68pcs

No.of Head:34pcs

PCB Clamping:Adjustable pressure pneumatic

Mounting Mode:Group picking and separate placingseparate picking and separate placing

Software:R&D independently

Mounting Precision:±0.02mm

Mounting Height:<=5mm (Automatic Changing)

Mounting Speed:150000-180000 CPH

Components:LED,capacitors,resistors,rectifier etc.

Transmission Direction:Single direction (option)

Tube application

LAMP application range for general lighting, office, shopping malls, restaurants, schools, homes, factories and other indoor lighting.

Lamp production process

Patch; initial test; sub-board; grinding plate edge; put the lamp into aluminum tube; link power line; installation of power supply; welding lamp cap; lamp cap coated with silicone; electrical test; Cleaning rosin and coating silica gel; installing lampshade; fixing lamp cap; switch test, aging; withstand voltage test; finished lamp weight test; final test and appearance inspection; packaging; QC spot check; storage.

Full automatic vision stencil printer machine

Automatic printing machine constitute and features

1.PCB transport and clamping system

• The optimally designed module drive structure effectively improves the stability of the platform calibration,

balanced contact between the PCB and the steel mesh.

• Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully

• Programmable transport speed control makes PB stop more precise.

• Unique crafted internal gear conveyor belt to prevent jamming.

• The PCB loading direction can be selected and combined freely.

2.Stencil positioning system

•Arch bridge-shape suspension hanging direct-connect scraper.

•The size of steel mesh is universal, With good and wide applicability.

•Segmented tied steel mesh frame.

3.scraper system

•Embedded scale, never fall off•The fully closed-loop scraper pressure feedback device monitors the scraper pressure at all times, making

•Slide rail type scraper system, improve operation stability and prolong lifetime

•According to the different pressure requirements of the front and rear squeegees and the stability of the -lifting and lowering, to prevent the leakage of solder paste, the blade has a certain elastic clamping design,the pressure of the squeegee, the lifting speed, the printing speed, and the printing range are all software adjustable. Provide a variety of moulding methods to meet different requirement of PC, providing customers with a good printing control platform.

•Bilateral double-slider positioning type slide rail structure ensures the accuracy and smoothness of running before and after printing

•Programmable Suspension Self-Adjusting Stepper Motor Drives Print Head

•Cast aluminum Scraper beam to ensure smoother running of scraper
