Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Model: | ET-R8 | Machine Weight: | 1300kg |
| Machine Dimensions(L*W*H): | 4600mm*1000mm*1400mm | Conveyor Speed: | 0-2000mm/min |
| Heating Method: | Full Hot Air | Length Of Heating Zone: | 3000mm |

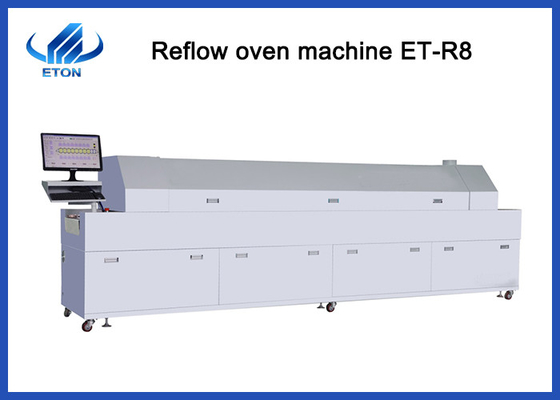

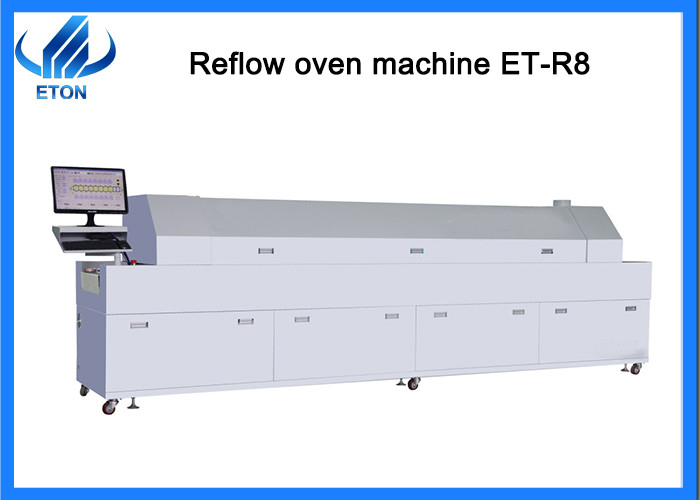

8 zones full hot air 4600mm*1000mm*1400mm SMT reflow oven machine
Technical parameter:
| Product model | ET-R8 | |
| Heating system | NO. of heating zone | Upper 8 hot air heating, lower 8 hot air heating |
| Length of heating zone | 3000mm | |
| heating method | Full hot air | |

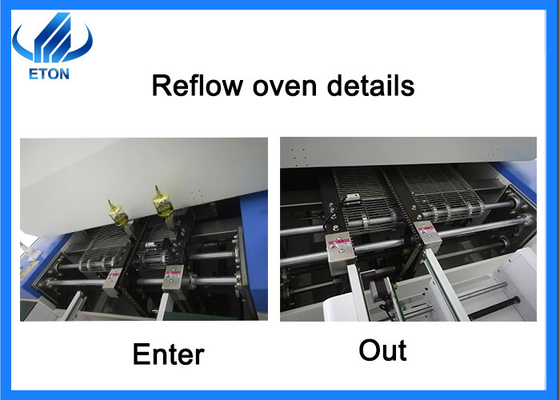

| Delivery system | PCB maximum width | 450mm mesh belt, no lead rail |
| Transport direction | left-right,right to left(option) | |
| Conveyor belt height | Mesh belt 880±20mm | |
| Delivery method | Mesh belt drive + rail (optional) | |
| Conveyor speed | 0-2000mm/min | |
|
Machine system
|
Machine dimensions(L*W*H) | 4600mm*1000mm*1400mm |
| Machine weight | 1300kg | |
Features:
1.It adopts imported high-speed air-carrying motor direct drive for thermal cycle, low noise, low vibration and high thermal cycle efficiency.
2.It adopts Panasonic PLC industrial control products to control the upper and lower computer, which has first-class stability.
3.It has a delay switch protection function to prevent the transmission components from deforming due to uneven cooling.
4. It has a power-off protection function to ensure the normal output of the PCB without damage after power-off.
5.With over-temperature sound and light alarm and emergency braking system.
6.All zones are heated separately up and down, independent hot air circulation, independent temperature control, and the temperature control accuracy is ±1℃.
7.Modular heating structure can effectively prevent the influence of airflow in the temperature range, ensure that the components are evenly heated, and the lateral temperature deviation is <±2℃.
8.The upper furnace body is opened by pneumatic jacking, which is safe ,reliable and convenient for furnace cleaning.
9.The heat source of the special durable nickel heating wire, abundant power, rapid heating, less than 20 minutes from room temperature to constant temperature.
10.Simplified and traditional Chinese MMI operation interface and artificial intelligence software control greatly facilitate the user's use.
11.It has a complete online temperature test curve and analysis, storage, recall and printing functions.
12.Dedicated temperature acquisition module, high accuracy and fast speed, with cold junction compensation function.
13.Temperature collection adopts RS-485 interface, which is convenient for remote device temperature monitoring.
14.With timing automatic shutdown function.
15.Host computer control, computer can be cut off, independent control, computer operation, convenient man-machine dialogue, clear interface, intuitive image, can switch between Chinese and English at any time, and various parameter settings realize accurate and fast numerical input.
16.Using PLC control, the temperature control is stable and accurate, and the temperature of each zone is individually controlled.
17.The motor is imported, high-quality,and high-temperature-resistant, with good structure and good heat dissipation, to ensure its service life and reliability. The direct connection mode connects the wind wheel with a speed of up to 2800rpm to provide sufficient hot air flow.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
FAQ
Q. Can I use CIF price?
A. CIF price need add the freight and insurance fee, while for the part of EXW which is cheaper and convenient factor as a suitable price for both sides.
Q. What is your machines quality?
A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q. What services can you provide?
A.
1)We provide whole line solution for our clients;
