Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Model: | HT-T9-2S |
|---|---|---|---|
| Mounting Speed: | 500000CPH | Heads: | 136PCS |
| Feeders Station: | 136 PCS | Camera: | 10 Sets Of Camera |
| Feeding Way: | Intelligent Electric Feeder With Double Feeder | X, Y, Z Axis Drive Way: | High-end Magnetic Linear Motor And Serve Motor |
| High Light: | 500000 CPH SMT Pick And Place Machine,serve motor LED strip Mounting Machine,linear motor LED strip Mounting Machine |
||

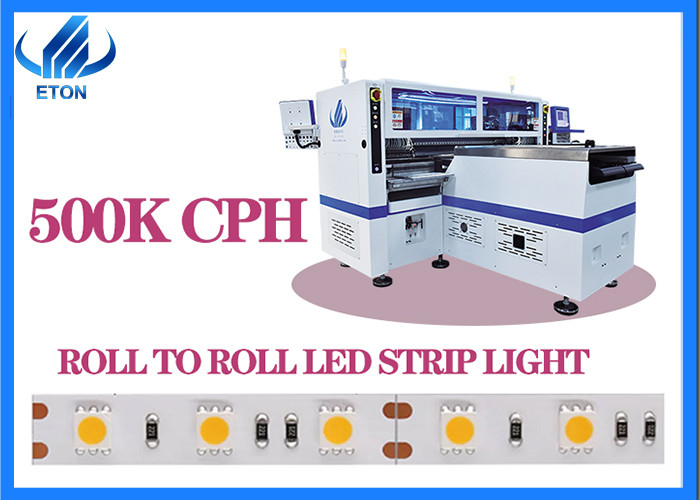

Led strip Smt Pick And Place Machine T9-2S 500000 CPH Mounting Speed
1. Machine techincal parameter
| HIGH SPEED AND PROFEESIONAL PICK AND PLACE MACHINE T9-2S | |
| PCB size | 250(±10)mm* any length |
| PCB thickness | 0.1-0.5mm |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way | Group picking and group placing |
| Mounting mode | Double-rail+four groups of placement heads |
| No. Of camera | 10 sets of digital camera |
| Repeat precision | ±0.05mm |
| Mounting height | ≦5mm |
| Mounting speed | Double side: 500000 CPH, Single side: 250000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and resistor, capacitor, bridge rectifiers etc. |
| power | 350 AC 50Hz |
| Power consumption | 9.6KW |
| Electrical control | Independent research and development by ETON |
| Motion control card module 2 set | |
| Feeding way | Intelligent electric feeder with double motor |
| No. Of feeder station | Double side 136 PCS, Single side 68 PCS |
| No. Of head | Double side 136 PCS, Single side 68 PCS |
2. Company information
Shenzhen Eton Automation Equipment co., LTD. is a professional manufacturer of pick and place machine. Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine. And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation. The 2017newest items are hot selling.
3.The layout of smt production line
4.The applications of T9-2S ultra high speed smt pick and place machine
5. FAQ
Q: What are your advantages?
Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q : Is there any quality guarantee?
We stick to quality first, client-oriented, Continuous improvement!
Q: What is SMT Machine?
This is an LED lamp patch machine using surface mount technology.
Q: Whether the machine's after-sale service is guaranteed?
Each of our machines has a one-year warranty and will regularly visit customers for use.
6. What are the features of SMT:
With high assembly density, small size and light weight of electronic products, the volume and weight of SMD components are only about one-tenth of traditional plug-in components. Generally, after SMT is adopted, the volume of electronic products is reduced by 40%~60%, and the weight is reduced by 60%~ 80%.
High reliability and strong anti-vibration ability. The defect rate of solder joints is low.
Good high frequency characteristics, reducing electromagnetic and radio frequency interference.
It is easy to realize automation and improve production efficiency. Reduce costs by 30%~50%. Save materials, energy, equipment, manpower, time, etc.
