Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1950*2250*1650mm | PCB Size: | Max: 600*300mm Min: 100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5~5mm | Mounting Mode: | Group Picking And Separately Placing、separately Picking And Separately Placing |
| Mounting Precision: | ±0.04mm | Mounting Height: | <15mm (Automatic Changing) |
| Mounting Speed: | 90000 CPH | Components Space: | 0.2mm |
| No.of Feeders Station: | 48 PCS | No.of Head: | 24 PCS |
| Power: | 380AC 50Hz | Power Consumption: | 8KW |
| High Light: | Dual Module LED Making Machine,Linear Motor LED Making Machine,90k CPH LED Pick And Place Machine |
||
Fully Automatic Multifunctional Dual Module Magnetic Linear Motor Making Machine 90000CPH LED Pick And Place Machine
Production Introduction of Pick and Place Machine HT-E8D-600
1. Double module magnetic linear motor multifunctional pick and place machine.
2. Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
3. Component: Min. Size 0402 Max. Height 15mm.

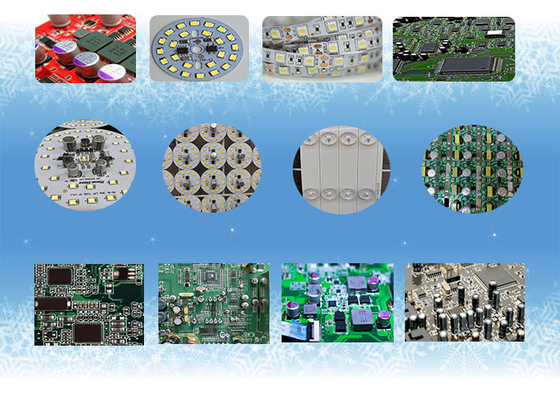

4. Application: Power driver,electric board,lens,DOB bulb,linear bulb,household appliance etc.
Exclusive patent technology
1. Electric feeder feeding system.
2. Vision alignment flight identification, Mark correction.
3. Non-stop material re-loading function
4. Auto-optimization after coordinates generated, etc.
HT-E8D-600 of Technical Parameter
| Dimension | 1950*2250*1650mm |
| PCB Size | Max: 600*300mm Min: 100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting height | <15mm (Automatic changing) |
| Mounting speed | 90000 CPH |
| Components | LED chip,resistors,capacitors,IC,shaped components etc. |
| Components space | 0.2mm |
| No.of feeders station | 48 PCS |
| No.of head | 24 PCS |
| Power | 380AC 50Hz |
| Power consumption | 8 KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor+servo motor |

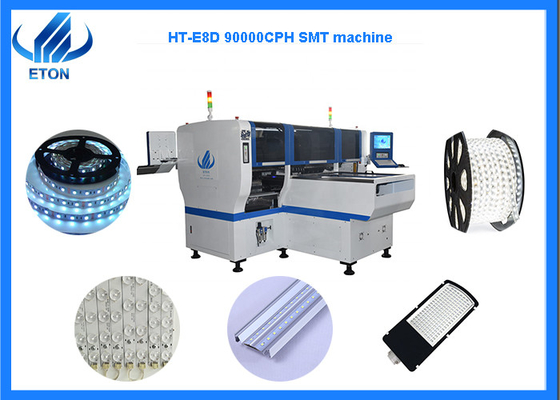

HT-E8D-600 Picture

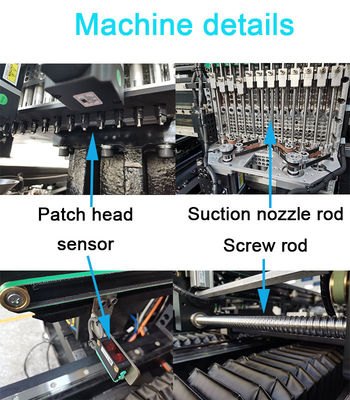

The main parts
Company Introduction
ETON has 11 years of experience in the mounter industry,it is a manufacturing and process solution provider focusing on R&D,sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment.
Exhibition
In order to let customers in more countries see our machines.So many industry exhibitions have our presence. Next time, can you also visit our machines?
In many exhibitions, we have been affirmed and favored by customers, such as Thailand Exhibition, Turkey exhibition, India Mumbai and Delhi exhibition, Pakistan exhibition and so on
After sale service
Service office in India
Installation service, one-year warranty
Carefully Packaging System
Three step packaging,waterproof, moisture-proof, anti-collision and safe arrival
FAQ
Why choose us?
We are the leading manufacturer of global optoelectronic high-speed pick and place machine, we have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation.
If you still have any questions, please contact us by e-mail, WeChat, phone, Skype or other contact information.
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
How long the delivery?
30 Days.
