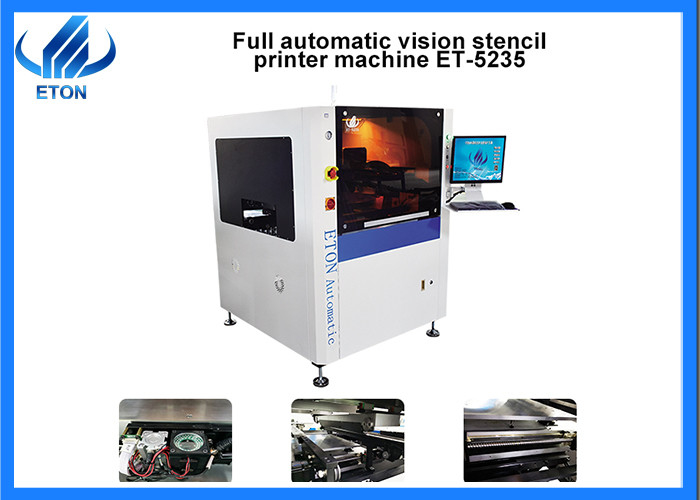

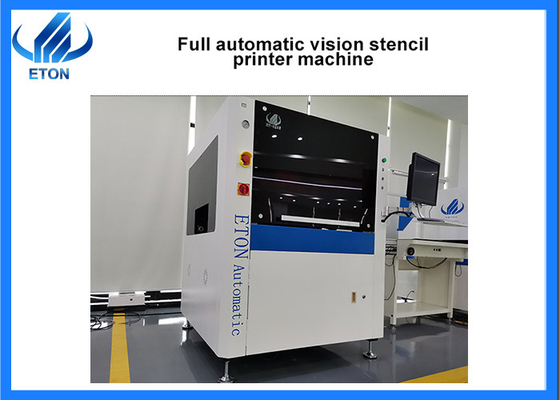

SMT friendly operation interface Max 1200mm/s programmable PCB full automatic stencil printer
Machine main features
1. PCB transport and clamping system
- The PCB loading direction can be selected and combined freely;
- Unique crafted internal gear conveyor belt to prevent jamming;
- Programmable transport speed control makes PCB stop more precise;
- Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh.
- Stencil positioning system
- Arch bridge-shaped suspension hanging direct-contact scraper;
- The size of steel mesh is universal, with goof and wide applicability;
- Segmented fixed steel mesh frame.
- Programmable suspension self-adjusting stepper motor drives print head;
- Bilateral double-slider positioning type slide rail structure ensures the accuracy and smoothness of running before and after printing;
- Slide rail type scraper system, improve operation stability and prolong time;
- Embedded scale, never fall off.
- Easy to learn and easy to use friendly operation interface;
- With good human-machine dialogue function;
- Make program files with teaching and navigation functions, with prompts for each step;
- One key switch between Chinese and English, with operation log, fault record analysis and diagnosis.
Machine main parameter
| Model |
ET-5235 |
| PCB size |
Max:520*350 mm
Min:50*50 mm
|
| Transport height |
900±20mm |
| Transport speed |
Max 1200mm/s programmable |
| Printing accuracy |
±0.025mm |
| Cycle time |
≤9s(Excluding printing&cleaning) |
| Control method |
PC control |
| PCB transfer overhead height |
10mm |
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Service
Free Installation: provide free installation machine to ensure smooth production
Free Warranty:1 year warranty factory service, free replacement of space parts
Free Training: Professional training of operating and maintenance
Free Technical Support: 7*24 technical online support
Free Software Upgrade: Offer free software upgrade whole lifetime
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
FAQ
Q. Can I use CIF price?
A. CIF price need add the freight and insurance fee, while for the part of EXW which is cheaper and convenient factor as a suitable price for both sides.
Q. What is your machines quality?
A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q. Whether you have professional engineers for installation of the machine in India?
A. Yes, we have professional engineers in India to provide considerable service to our clients.
