Automatic Operation LED Chip Mounter 90000CPH With 24 Nozzles LED Production Line

Automatic Operation LED Chip Mounter 90000CPH With 24 Nozzles LED Production Line
Automatic Operation LED Chip Mounter 90000CPH With 24 Nozzles LED Production Line

Large Image :  Automatic Operation LED Chip Mounter 90000CPH With 24 Nozzles LED Production Line

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: HT-E8D-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days after receive the down-payment
Payment Terms: T/T
Supply Ability: 50 sets per mouth
Detailed Product Description

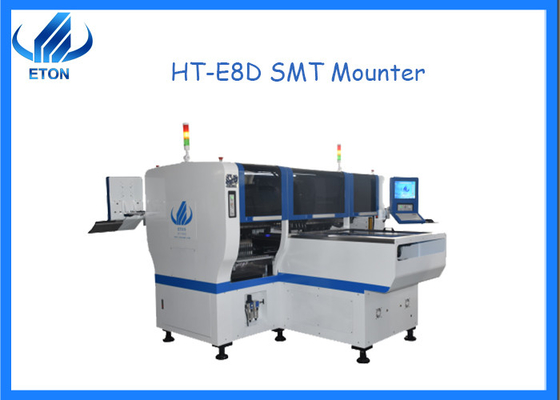

Name: Pick And Place Machine Module: HT-E8D-1200
Local Service: India, Egypt, Vietnam Min.mount: 0402 Components
Warranty: 1 Year Dimension: 3150*2250*1650mm
High Light:

LED Chip Mounter 90000CPH

,

vision alignment LED Chip Mounter

,

90000CPH LED Production Line

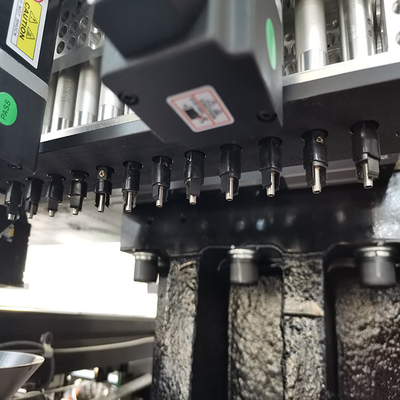

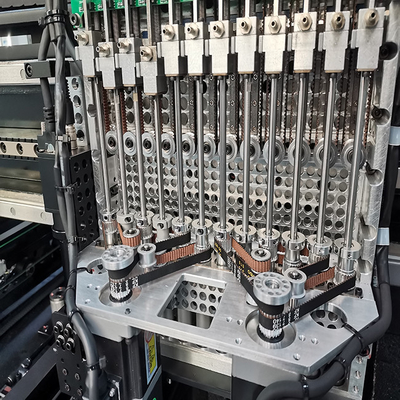

LED chip mounter 90000CPH with 24 nozzles for the LED production line smt mounting machine



Advantages

High precision. Solved the problem of throwing materials of previous machines. 4 sets of imported camera with its features of vision alignment and Mark correction to ensure.



High capacity. 90000CPH, to solve your troubles of low production efficiency.



High technology. Automatic operation, save a lot of manpower and material resources.

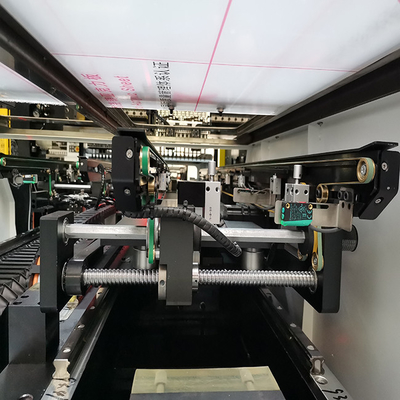

Exclusive Patent Technology: group picking and separately placing, separately picking and separately placing. High-end magnetic linear motor +servo motor to drive X,Y Axis.



Technical Support. It doesn't matter if you don't know the technology, we have a professional team and professional engineers that can provide on-site services.



Machine main parameter

Dimension 3150*2250*1650mm
Toatl weight 2500KG
PCB size Max.1200*300 Min.100*100mm
No.of camera 4 sets
Mounting height <15mm
Mounting speed 90000CPH
Power 380AC 50HZ
Power consumption 8KW



Company profile

Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

ETON mission: professional, excellent technology, sharing the results.

ETON goal: to create a national brand, build international Chinese enterprise.

ETON purpose: to create value for customers, creating benefits for society.

Automatic Operation LED Chip Mounter 90000CPH With 24 Nozzles LED Production Line 0



Packaging

All machines are packed with vacuum and wooden packing.

Step 1. Film packaging

Prevent the machine from dust ,water,crash and shaking.

Step 2. Add foam+film packaging

Double safe protection,Prevent the machine from crash and shaking.

Step 3. Unique tin foil packaging

Add tin foil packing can prevent the film from scratch broken.

Step 4. customized Strong wood carton packing

The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.

Automatic Operation LED Chip Mounter 90000CPH With 24 Nozzles LED Production Line 1



FAQ

Q:How long is the time of delivery?

Generally, the test delivery period is one month.



Q:If my order is very urgent, how long you can proceed?

We have helped many clients with their urgent demand. If your order is urgent, please check with our specialists to see if we can help.



Q:How are the products packed for sea shipment?

Most of the products have their unique packing, Then we put them into a carton. The cartons are sealed with tape.



Q:How can you make sure that the products won’t be damaged or wet?

We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.



Q: Do you have oversea after sale service?
A: We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.Abroad, we have India office, Indian engineer, Egyptian engineer and Egyptian engineer , etc.



Q: How is the training?
A: After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials.
