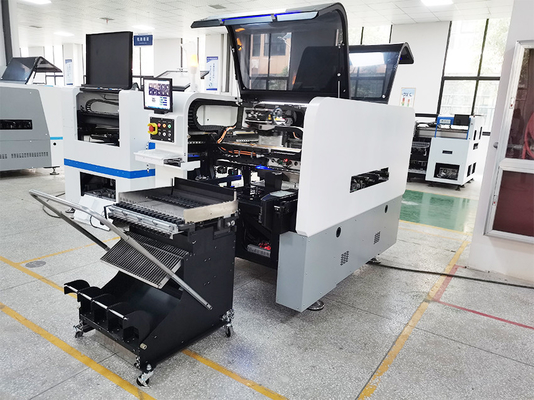

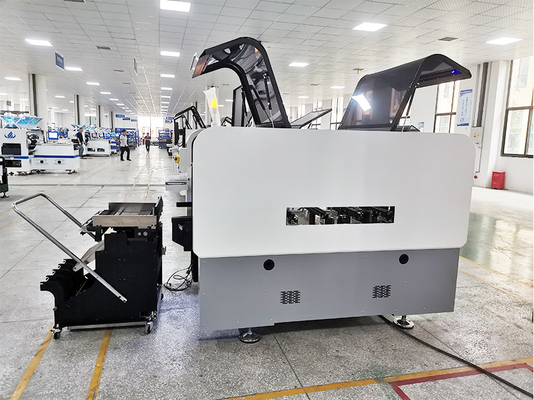

80000CPH LED SMT Machine High Precision 20 Heads Magnetic Linear Motor

80000CPH LED SMT Machine High Precision 20 Heads Magnetic Linear Motor
80000CPH LED SMT Machine High Precision 20 Heads Magnetic Linear Motor 80000CPH LED SMT Machine High Precision 20 Heads Magnetic Linear Motor 80000CPH LED SMT Machine High Precision 20 Heads Magnetic Linear Motor 80000CPH LED SMT Machine High Precision 20 Heads Magnetic Linear Motor

Large Image :  80000CPH LED SMT Machine High Precision 20 Heads Magnetic Linear Motor

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC,SIRA,CE

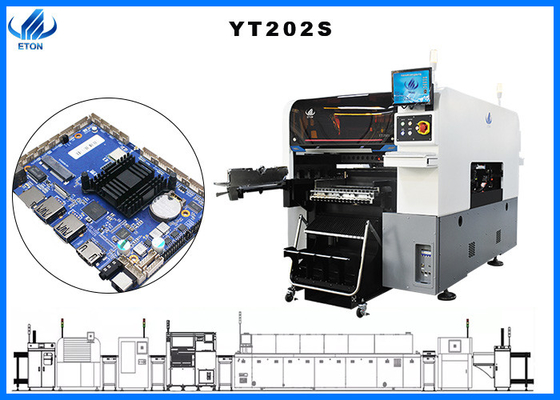

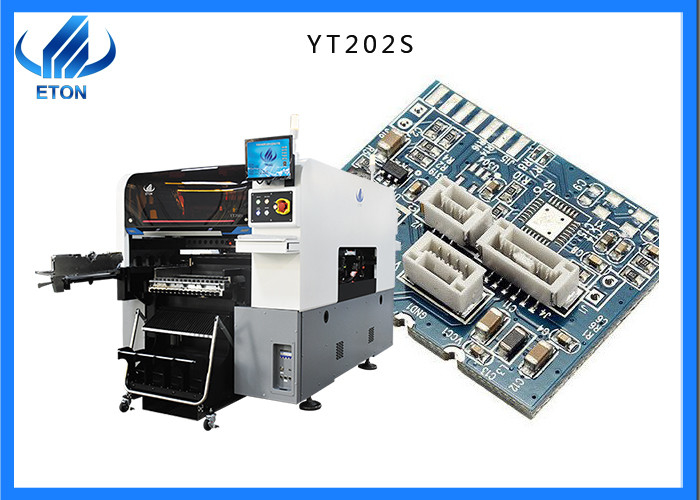

Model Number: YT202S
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: We use vacuum wooden box packaging
Delivery Time: 5-8days
Payment Terms: L/C, T/T
Supply Ability: 50pcs/month
Detailed Product Description
Model: YT202S Length: 2788mm
Width: 1686mm Height: 1375mm
Total Weigth: 1700kg Mounting Speed: 80000CPH
High Light:

High Precision LED SMT Machine

,

80000CPH LED SMT Machine

,

Linear Motor LED SMT Machine

High Precision 20 heads 80000CPH Led Lighting SMT Machine



Parameter

model YT 202S
PCB size

MAX size: 500*450mm(single PCB)

500*300MM(double PCB)

MIN size: 50*50mm

PCB thickness 0.5-4.5mm
PCB clamping Cylinder clamping, track width adjustable
system Windows 7
software R&D independently
No. Of camera 4 set (digital camera)
Bottom vision camera recognition
Vision alignment+ mark correction
Mounting speed 80000 CPH(optimum speed)
Components range Min 0201-4040mm tape reel packages and IC tray feeder etc
power 380 AC 50Hz 6KW
Air consumption 0.4-0.6mpa()4-6kgf/cm2) 150N/min
Electrical control Independent research and development by ETON
Motion control card module 1 set
X,Y,Z Axis drive way High end magnetic linear motor+ servo motor
No. Of feeder station Double side docking cart slot 32 PCS, tape reel packages : 64PCS(single side docking cart slot 16 PCS, tape reel package: 32PCS),freely switching between docking cart and IC tray feeder
No. Of heads Double side: 20 PCS(single side: 10 PCS)
Feeding way Intelligent double head feeder







Feature

1. YT202S has 20 heads and Double side docking cart slot 32 PCS, tape reel packages : 64PCS(single side docking cart slot 16 PCS, tape reel package: 32PCS),freely switching between docking cart and IC tray feeder

2.the range of components are apply to ultra small chip 0201-40*40mm large chip, improve recognition performance size up to 40*40mm, apply to BGA 0R CSP etc.

3. the each placement head of YT202S with independent detection function, which can improves the stability of the equipment and the reliability of the product.

4. the optimum mounting speed reach 80000 CPH in good conditions.

5. the mark recognition system of YT202S adopt 3-color illumination recognition, apply to any shape mark and lens, wider range of applications.

6. YT202S has changed the traditional feeding way, add the docking cart, smart double head tape feeder, IC tray feeder

7. YT202S has the off-line programming, it can save time of changeover cycle

8. YT202S has double rail and both gantry can mount a large PCB or two same PCB at the same time

80000CPH LED SMT Machine High Precision 20 Heads Magnetic Linear Motor 0

Company advantages

ETON is the top manufacturer of SMT pick and place machine and was set up in 2011 with more than 10 years experiences.ETON have more than 50000 square meter intelligent Industrial park in Jiangxi Province, machine capacity more than 50 units/month.

80000CPH LED SMT Machine High Precision 20 Heads Magnetic Linear Motor 1

Exhibition

ETON actively participates in various exhibitions at home and abroad, and lets our products show up in front of our customers.

80000CPH LED SMT Machine High Precision 20 Heads Magnetic Linear Motor 2

FAQ

1. may i choose the T/T payment?

yes. You can choose FOB Shenzhen by T/T.

2. how about you clients?

in South Korea, India, Egypt, Turkey, Russia etc we have many important clients, and our machine are exported more than 20 countries and regions

3. What about your machines series?

We have all kinds of machine, and different machines apply to various appliance. such as bulb, tube, flexible strip, panel light, down light,street light,ceiling light, wall washer light etc.

4. What else do you offer besides the SMT pick and place machine?

We provide the whole production line machine, including solder paste printer machine, conveyor, pick and place machine reflow oven.

5. How about the software ?

Our software are Independent R&D by ourselves and provide freely upgrade whole lifetime.
