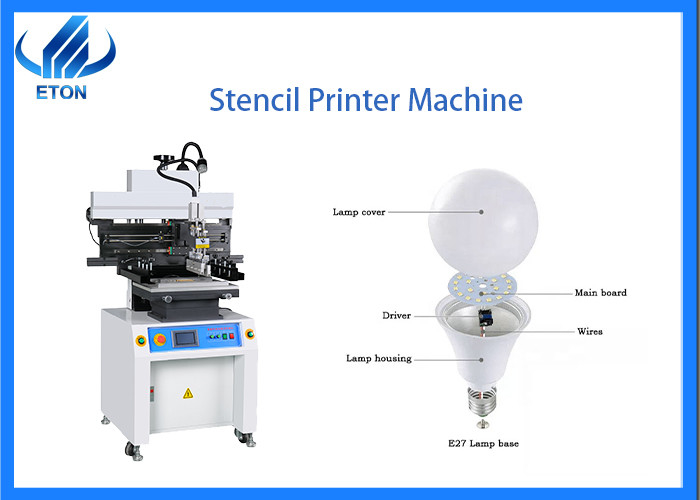

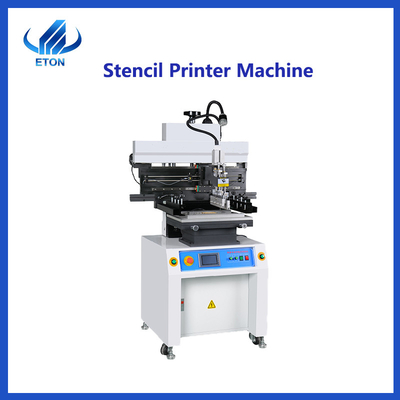

SMT line semi-automatic stencil printer 8000mm/min in the LED production Line
Machine’s Main Features
l The correction method adopts the movement of the net support arm to coordinate the X, Y, Z correction adjustment of the printed matter (platen), and the correction is convenient and simple.
l Using microcomputer PLC control, Human-machine interface touch control, Single/double printing and manual/semi-automatic modes can be selected.
l The squeegee seat can be adjusted back and forth, and the printing squeegee can be adjusted by ±15° according to the needs of product printing.
l Using air cylinder and magnetic proximity switch, the worktable reciprocates, the accuracy of the printing surface can reach ±0.01mm.
l Use air pressure 4-6kgf/cm², printing table area 320*500mm and printing accuracy ±0.02mm, machine repeat accuracy ±0.02mm.
l With automatic counting function and alarm times setting, convenient for output statistics.
l With the adjustment of the stopping time of the printing action, it is convenient to meet the production needs.
Specifications
| Model |
ET-S600 |
| Dimensions |
1400*800*1680mm |
| Platform size |
650×320mm |
| PCB size |
600×300mm |
| Template size |
550×830mm |
| Printing speed |
0-8000mm/min |
| PCB thickness |
0-50mm |
| PCB fine tuning range |
Front/side±10mm |
| Power supply |
1PAC 220V 50/60HZ |
| Platform height |
850±20mm |
| Repeatability precision |
±0.01mm |
| Positioning mode |
Outside/Reference hole |
| Weight |
Approx.200Kg |
ETON Advantages
Efficient team: The best suggestions of full SMT lineequipment according to your budget and site.
Competitive price: We are directly manufacture of theETON pick and place machine, so we can give you thebest competitive price with high quality materials.
High quality: We have strictly quality control during allproduction from raw materials to the finished machine.
High efficiency: Allmachines parts are made byourselves, so it" s convenient to control the timeschedule and quality timely.
Certificates
Our company has obtained 9 invention patents, 12 software Copyrights and 112 practical patents
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
Exhibition
ETON is a very strong and powerful company. We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 85% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam, Japan, Australia, Poland, etc more than 20 countries.
