| Name: | Stencil Printer Machine | Module: | ET-S600 |
|---|---|---|---|
| Local Office: | India, Egypt | Warranty: | 1 Year |
| Printing Speed: | 0-8000mm/min | Dimension: | 1400*800*1680mm |
| High Light: | Easy Operate stencil printer machine,600*300mm stencil printer machine,8000mm/min PCB Soldering Equipment |
||

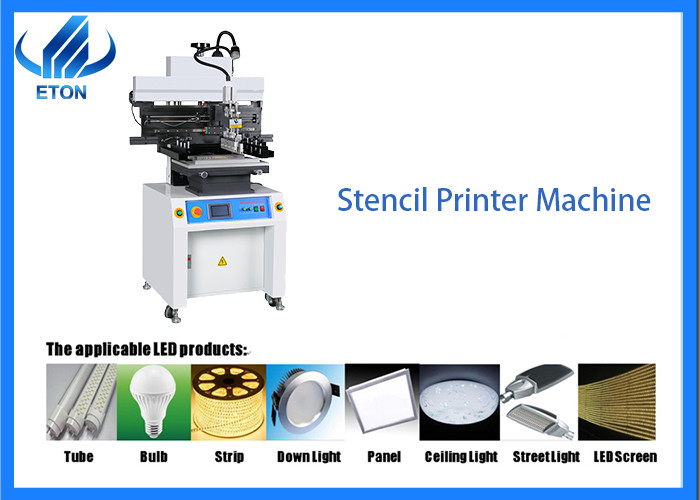

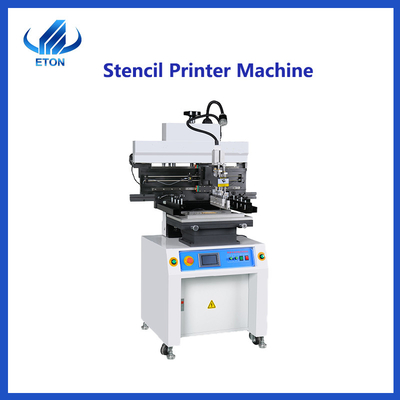

Easy operate stencil printer machine for 600*300mm PCB soldering equipment
Specifications
| Model | ET-S600 |
| Dimensions | 1400*800*1680mm |
| Platform size | 650×320mm |
| PCB size | 600×300mm |
| Template size | 550×830mm |
| Printing speed | 0-8000mm/min |
| PCB thickness | 0-50mm |
| PCB fine tuning range | Front/side±10mm |
| Power supply | 1PAC 220V 50/60HZ |
| Platform height | 850±20mm |
| Repeatability precision | ±0.01mm |
| Positioning mode | Outside/Reference hole |
| Weight | Approx.200Kg |
Machine’s Main Features
l Adopt high-precision linear guide and ultra-quiet motor, Squeegee printing is more stable.
l Use imported electrical raw materials, Stable and reliable performance.
l Suspended scraper design can automatically adapt to uneven surfaces.
l Input total power supply voltage: single-phase 220V 50/60Hz, total power 100W.
l The printing base can be lifted up by 45° and can be fixed, which is convenient for the loading and unloading of the scraper and the cleaning of the stencil.
l The Printing Block can be moved forward and fixed, which is convenient to match the position of the stencil mesh pattern to obtain better printing results.
l The mesh support arm can be adjusted left and right separately, suitable for 550～650mm stencil.
l The combined printing platen is equipped with a fixed slot and a positioning PIN, which is quick to change and easy to locate, and is suitable for single-sided substrate and double-sided substrate operations.
Our Advantages
1.We are leading manufacturer of automatic high speed pick and place machine.
2.90% large and listed led factory are our client.We have over decades development history.
3.We have an industrial park covering an area of 50,000 square meters in jiangxi, which has various machine.
4.We have world record-breaking high speed pick and place machine, which speed reached 500000CPH.
5.We have local India engineer, As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
Service
Maintenance period 1 year
One year warranty. during warranty. any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
1..Do you have overseas engineers?
Yes, of course. We have local engineers in India, If you have any problem about machine, we can let our engineers to solve the problem for you.
2.How can I buy this machine from you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
3.Which countries are your machines mainly sold to?
Our products exported to more than 30 countries and regions, including Turkey, Egypt, India, Pakistan, South Africa, Brazil etc.
4.What’s the terms of payment?
T/T is OK.30% Down payment in advance,70% payment before delivery.
