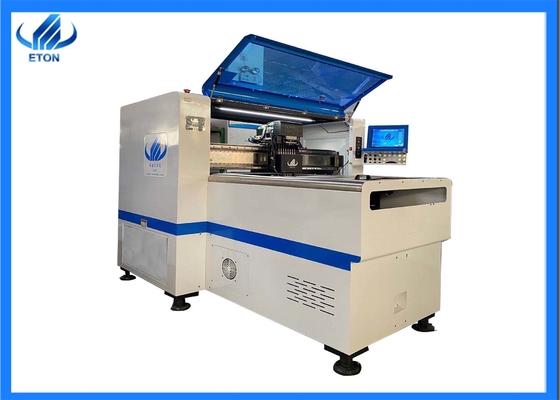

LED Bulb SMT Pick And Place Machine High Precision LED Light Making Machine

LED Bulb SMT Pick And Place Machine High Precision LED Light Making Machine
LED Bulb SMT Pick And Place Machine High Precision LED Light Making Machine

Large Image :  LED Bulb SMT Pick And Place Machine High Precision LED Light Making Machine

Product Details:
Place of Origin: China
Brand Name: Eton
Certification: CE CCC ISO
Model Number: HT-E8S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX PACKAGE
Delivery Time: 30 WORK DAYS
Payment Terms: T/T
Contact Now
Detailed Product Description
Length: 2550MM Width: 1650MM
Height: 1550MM Weight: 1700KG
Power: 380AC 50Hz Power Consumption: 4KW
Heads: 12 Feeder Stations: 28
High Light:

1650MM SMT Pick And Place Machine

,

LED Light Making Machine 4KW

,

LED Light Making Machine High Precision

LED Bulb SMT Pick and Place Machine High Precision LED Making Machine

Product Description
LED Bulb SMT Pick And Place Machine High Precision LED Light Making Machine 0


Machines window

High Accuracy Magnetic Linear Motor + Panasonic Servo Motor
12 heads 28 feeder stations
Minimum mounting components 0402
The Height of Head can be Set Automatically,
Maximum Height 36MM
Auto-optimization after coordinate generated
Vision for the Flight Identification, Mark Correction
Capacity can Reach 45000 CPH

Specification
Model
HT-E8S-1200
Dimension (L*W*H)
2550*1650*1550mm
G/W
1700 KG
PCB Length width
Max:1200*500mm
Min:100*100mm
Power
AC 380V 50Hz
Power consumption
4KW
PCB thickness
0.5~5mm
PCB clamping
Adjustable pressure pneumatic
Mounting mode
Group to take separate placing , Separate picking and separate placing
Camera
2sets/ Vision alignment,mark correction
Mounting precision
±0.04 mm(repeat precision)
Mounting element height
≤15mm
Mounting speed
45000 CPH
Feeders Station
26 PCS
Nozzles
12PCS
Applicable camera
Chip 0402,LED,3014/3020/3528/5050 and resistor ,capacitor,bridge rectifiers



Machine application
LED Bulb SMT Pick And Place Machine High Precision LED Light Making Machine 1
HT-E8S-1200 is a universal model


In order to meet the rapid development of the lighting industry market demand, research and

development a multi-functional placement machine HT-E8S. HT-E8S is a new model pick and

place machine of Eton company. This machine designed for many kinds of PCB boards. Using

newest high magnetic linear motor,

so the speed and accuracy is better than normal multi-functional machines..

LED Bulb SMT Pick And Place Machine High Precision LED Light Making Machine 2

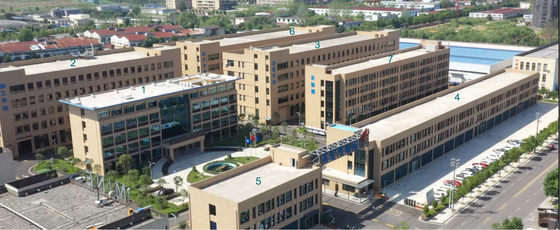

Company profile
LED Bulb SMT Pick And Place Machine High Precision LED Light Making Machine 3
Company short introduction

Shenzhen Eton Automation Equipment Co., Ltd focus on building national brand and concentrate

on providing customers professional guidance, good quality machines, good sale services of

automatic SMT machines. With the rapid development of the LED industry.

ETON focuses on R&D and continuously enhances the competitiveness of its placement machines.
Now we have successively reached
strategic cooperation with many domestic and foreign companies. And has achieved everyone's
unanimous recognition and praise. In the field of high-speed placement machines has become a
leading Chinese brand.

Customer Photos

LED Bulb SMT Pick And Place Machine High Precision LED Light Making Machine 4
LED Bulb SMT Pick And Place Machine High Precision LED Light Making Machine 5
LED Bulb SMT Pick And Place Machine High Precision LED Light Making Machine 6

FAQ
1) Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support
you promptly.
2) How is the training?
After buying our machines, you can send your engineers to our factory, or we send our engineer to
your factory, and then we will train your people to operate these machines.
3) It’s hard to use the machine?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
4) Does your machines have quality certificates?
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many
technology patents, and have rich experience(more than 10 years) in LED light production line
program.
5) What’s the term of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
