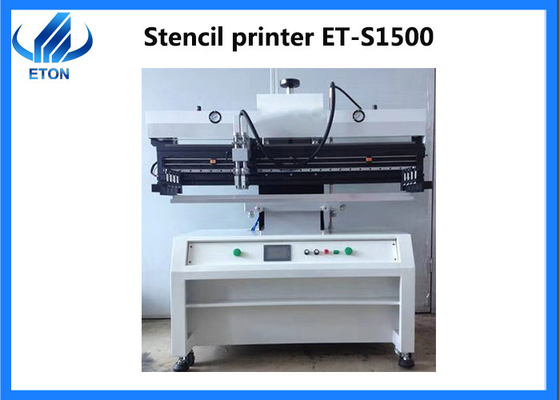

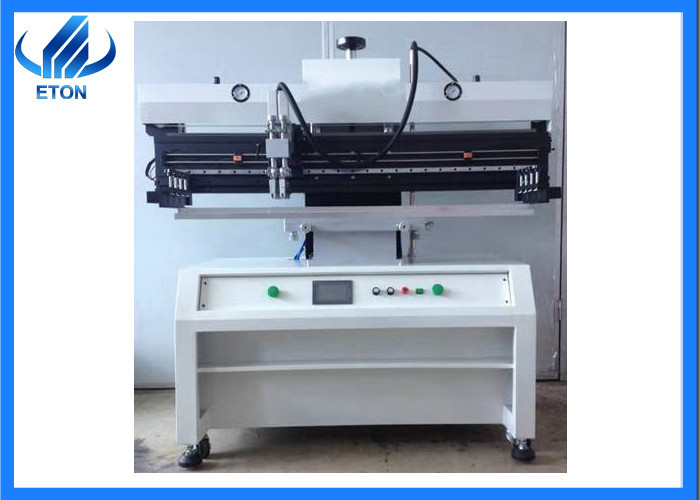

SMT Printed Circuit Board Manufacturing Machine Multiple Printing 1550×320mm

SMT Printed Circuit Board Manufacturing Machine Multiple Printing 1550×320mm
SMT Printed Circuit Board Manufacturing Machine Multiple Printing 1550×320mm SMT Printed Circuit Board Manufacturing Machine Multiple Printing 1550×320mm

Large Image :  SMT Printed Circuit Board Manufacturing Machine Multiple Printing 1550×320mm

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: ET-S1500
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Warranty: 1 Year Condition: New
Dimension: (L)1600 X(W)900 X(H)1650 Mm Speed: 0-100 Mm/sec
Weight: 420KG Power: 220V Single Phase, 50/60 HZ
PCB Plate Thickness: 0.2-2.0 Mm Printing Precision: +/- 0.05 Mm
Highlight:

SMT circuit board manufacturing machine

,

220V circuit board manufacturing machine

,

fixed groove circuit board manufacturing equipment

Multiple printing 1550×320 mm SMT printed circuit board manufacturing





Specification:



Model ET-S1500
Printing area: 1500×300 mm
Plate Area: 1550×320 mm
Stencil Frame Size: 470×370 mm~1300×550 mm (L×W)
Positioning way: positioning pin
Scraper Speed: 0-100 mm/sec
Power: 220V single phase, 50/60 HZ
Power Consumption: 120 W
PCB plate thickness: 0.2-2.0 mm
Plate Trimming: Front/back +/- 10mm Right/Left +/- 10mm
Printing Precision: +/- 0.05 mm
Air supply: 5-7 KGF/cm2
Weight: 420 kg
Dimension: (L)1600 x(W)900 x(H)1650 mm





Features:



(1) the governor motor drive scraper, combining precision linear guide, ensure the printing precision;

(2) printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;

(3) the scraper holder can adjust forward and backward, to select the suitable printing position;

(4) combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;

(5) steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.

(6) can be set unidirectional and bidirectional multiple printing methods.

Our advantage

  • Focusing on SMT high speed pick and place machine more than 20 years
  • The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
  • ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

SMT Printed Circuit Board Manufacturing Machine Multiple Printing 1550×320mm 0

Service

Maintenance period 1 year

One year warranty during warranty any parts that need to be repaired and replaced will be free.



Software and hardware lifetime maintenance

Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.



Visit customers regularly and gather information

Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.



Provide the latest information about technology and equipment

We give professional technology suggestions to our clients. And share the updated news with our clients



On-site service

We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.

According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.

SMT Printed Circuit Board Manufacturing Machine Multiple Printing 1550×320mm 1

Shipping and Delivery

Land transportation: suitable for inland countries and it is affordable;

Air freight: for urgent good, and it is the most expensive transportation way;

Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

SMT Printed Circuit Board Manufacturing Machine Multiple Printing 1550×320mm 2



FAQ



Q. What is your actual speed of your products?

A. For the actual speed of the machine which is constrained by many factors,

that related to the number of the components, the time to send PCB board

and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.



Q. Can you accept CIF as the quoted price?

A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.



Q.Whether you have professional engineers for installation of the machine in India?

A. Yes, we have professional engineers in India with local office site in Delhi and Dammam to provide considerable service to our clients.
