Product Details:
Payment & Shipping Terms:
|
| Dimension: | 3100*2300*1550mm | PCB Size: | 250*any Length |
|---|---|---|---|
| PCB Thickness: | 0.5~1.5mm | Mounting Mode: | Group Picking And Group Placing |
| Mounting Speed: | 200000~250000 CPH | Mounting Precision: | ±0.02mm (Repeat Precision） |
| No.of Feeders Station: | 68 PCS | No.of Head: | 68 PCS |

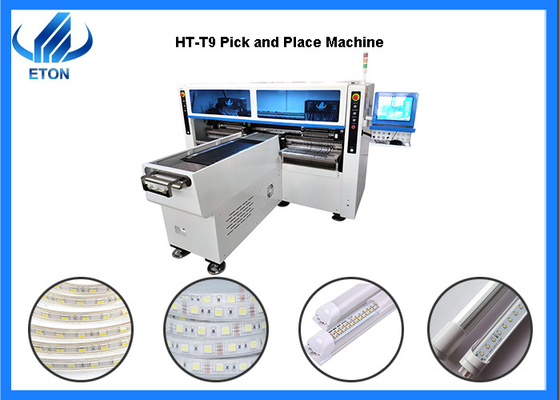

HT-T9 can produce 4 different materials at the same time. Mainly suitable for 5/50 meters or infinitely long flexible light strips, which can be mounted with RGB.
| Dimension | 3100*2300*1550mm |
| Weight | 1700kg |
| PCB length width | 250mm*any length |
| PCB thickness | 0.5~1.5mm |
| NO. of head | 68PCS |
| Mounting mode | group picking and group placing |
| NO.of camera | 5 PCS |
| Mounting precision | ±0.02mm |
| Mounting speed | 200000~250000CPH |
| NO.of feeders station | 68PCS |

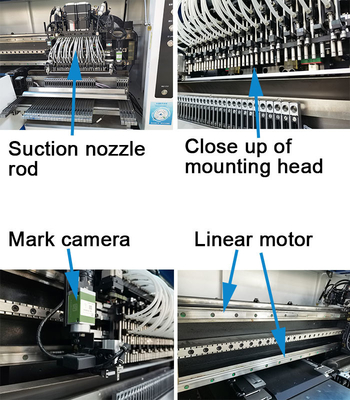

Servo motor:After the servo motor is powered on, the forward and reverse rotation are connected with the screw rod through the coupling to drive the screw rod to rotate, so as to drive (mounting head and transportation platform) to make linear reciprocating motion. A servo motor controls a screw.
The electromagnetic valve:The mechanical movement of the suction nozzle is controlled by controlling the on-off current of the electromagnet.
Company profile
ETON has independently developed the world's first invention patents and property rights technologies, including 9 invention patents, 12 software copyrights, and 112 utility patents.On the basis of protecting the enterprise, it promotes the efficient development of the enterprise, easily opens the market, and is conducive to market expansion.
Service
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
1.Do you have semi-automatic product line machine?
A:We both have semi-automatic product line machine and automatic product line machine.
2.Is the conveyor just have one size?
A:The general size of the connecting conveyor is 500 / 600 / 1200 / 1400 / 1500mm, and the supporting size of the connecting conveyor is generally larger than that of the PCB.
3.Does the price include nozzles and feeders?
A:We don't include nozzles and feeders,because each customer requires different nozzles and feeders.
4.How long you can deliver the goods?
A:30% down payment,70% payment before delivery.
5.What kind of nozzle is the machine?
A:Multi function machines are generally made of alloy and ceramics, and special machines are generally made of steel and copper
