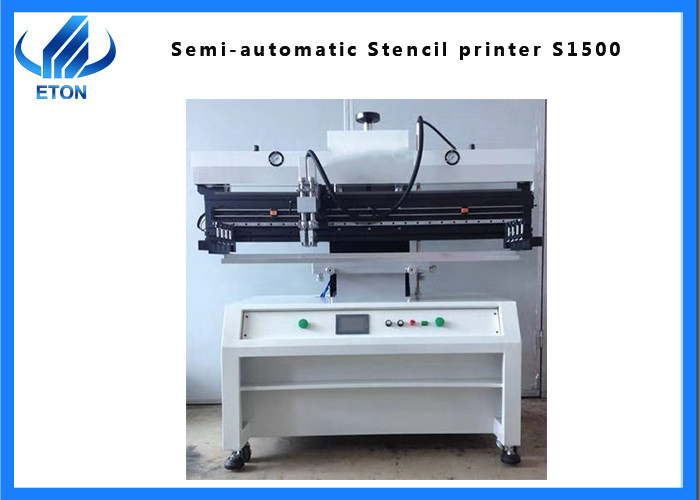

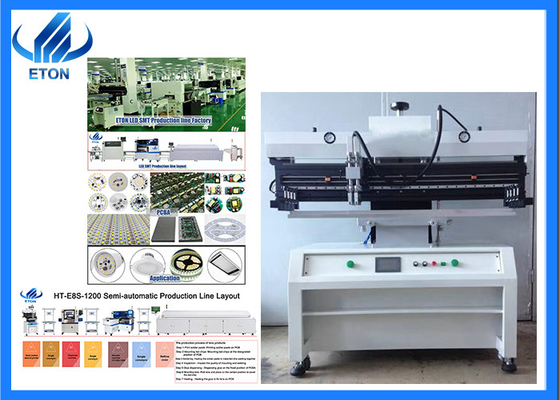

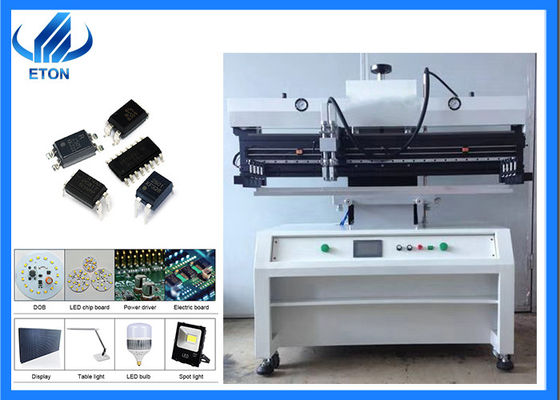

120W Semi Automatic Stenci Pinter Machine 220V Single Phase 50/60 HZ

120W Semi Automatic Stenci Pinter Machine 220V Single Phase 50/60 HZ
120W Semi Automatic Stenci Pinter Machine 220V Single Phase 50/60 HZ 120W Semi Automatic Stenci Pinter Machine 220V Single Phase 50/60 HZ 120W Semi Automatic Stenci Pinter Machine 220V Single Phase 50/60 HZ

Large Image :  120W Semi Automatic Stenci Pinter Machine 220V Single Phase 50/60 HZ

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC,SIRA,CE
Model Number: ET-S1500
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: We use vacuum wooden box packaging
Delivery Time: 5-8days
Payment Terms: L/C, T/T
Supply Ability: 50pcs/month
Detailed Product Description
Model: ET-S1500 Printing Area: 1500×300 Mm
Plate Area: 1550×320 Mm Stencil Frame Size: 470×370 Mm~1300×550 Mm (L×W)
Positioning Way: Positioning Pin Scraper Speed: 0-100 Mm/sec
High Light:

120W Semi Automatic Stenci Pinter

,

positioning pin Semi Automatic stenci pinter

,

positioning pin stenci pinter machine

Semi-Automatic stenci pinter machine



Semi-automatic printing machine

Working principle: use steel mesh to leak solder paste onto the bonding pad of PCB board to prepare for the action of component mounting

In the semi-automatic SMT production line, the printing press is located at the front end, and in the full-automatic SMT production line, the printing press is located behind the loading machine

The selection of printing press is mainly determined by the size of PCB, and we support customization



Technical Parameter

Model ET-S1500
Printing area: 1500×300 mm
Plate Area: 1550×320 mm
Stencil Frame Size: 470×370 mm~1300×550 mm (L×W)
Positioning way: positioning pin
Scraper Speed: 0-100 mm/sec
Power: 220V single phase, 50/60 HZ
Power Consumption: 120 W
PCB plate thickness: 0.2-2.0 mm
Plate Trimming: Front/back +/- 10mm Right/Left +/- 10mm
Printing Precision: +/- 0.05 mm
Air supply: 5-7 KGF/cm2
Weight: 420 kg
Dimension: 2000*800*1700 mm




120W Semi Automatic Stenci Pinter Machine 220V Single Phase 50/60 HZ 0

Other machines

We not only have printing machines, but also loading machines, connecting tables, dispensing machines, reflow soldering, transplanters, SPI, AOI, temporary storage machines, solder paste mixers, wave soldering, unloading machines, etc

120W Semi Automatic Stenci Pinter Machine 220V Single Phase 50/60 HZ 1

Client

120W Semi Automatic Stenci Pinter Machine 220V Single Phase 50/60 HZ 2

FAQ

Q: How is the training?

A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .

Q: Do you have a product certification certificate?

A: Our products have CCC, CE, SRIA certification.

Q: How about the after-sale service? How about the warranty?

A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
