Product Details:
Payment & Shipping Terms:
|
| Model: | HT-T9 | Warranty: | 1 Year,12 Months |
|---|---|---|---|
| Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
| Power Supply: | 380V 50HZ | Condition: | New,100% Original,Brand-new |
| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine | Weight: | 1700KG |
| Mounting Speed: | 250000 CPH | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Dimension: | 3100*2300*1550mm |
| High Light: | 0.02 mm SMT Pick And Place Machine,Group Picking SMD Mounting Machine,Separately Placing SMD Mounting Machine |
||
SMT PICK AND PLACE MACHINE MOUNT FOR SMD components
Parameter
Dimension:3100*2300*1550mm
Total Weight:1700 kg
PCB Length Width:250*any length
PCB Thickness:0.5-1.5mm
PCB Clamping:Vacuum adsorption, cylinder splint, adjustable track width
Mounting Mode:Group picking and separately placing
Mounting speed: 200000~250000 CPH
Repeat mounting Precision:±0.02mm (Repeat precision)
Mounting Height:≦5mm
Components:LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.

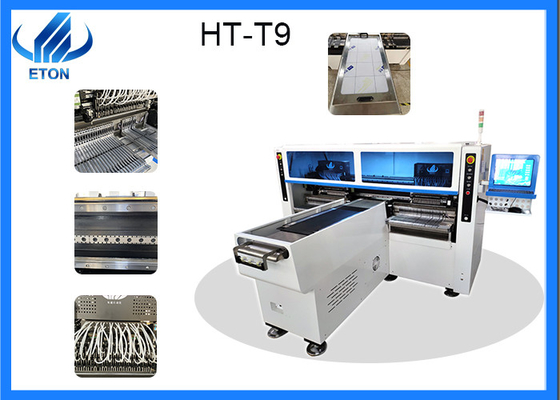

About T9
The speed is 250000CPH. Is it amazing? I believe that most of our customers are interested in why this machine can reach so high speed.You know it called mounting module. HT-T9 also has two modules, but one module has 2 mounting parts and each mounting parts has 17 heads. Totally 68 mounting heads. That make HT-T9 can pick two times components and place two times components than HT-F7S. This is the main reason why HT-T9 can reach 250000CPH and speed higher so much than HT-F7S.

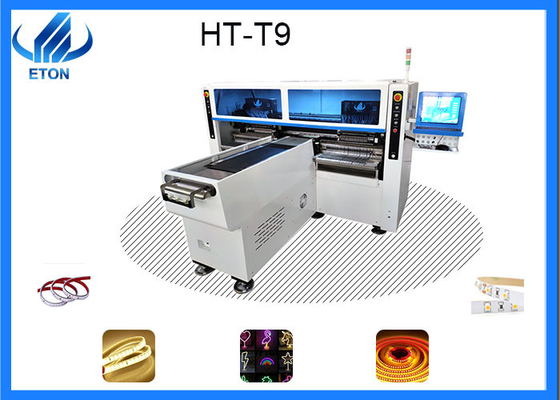

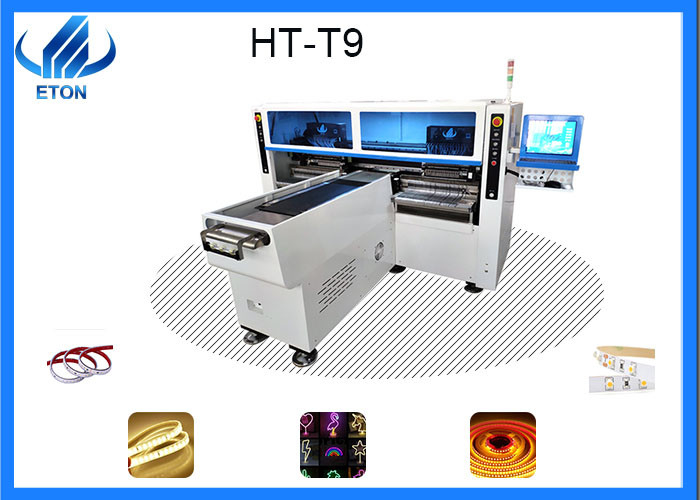

So why we said HT-T9 is the most popular model. Cause it is specialized model for the most popular LED products roll to roll strip. No matter 5M strip, 25M strip, 50M strip or even 100M strip light,any length you want, you can produced by HT-T9.HT-T9 is a really very fantastic model
Someone maybe wonder if the machine is difficult to operate? Don’t worry about this, this is the operate computer, it is touch screen monitor, very easy to control.we have professional college can teach you how to master it. In particular, it is EVOC brand, the Chinese top one!
D
Daily maintenance for SMT machine
check parts name, process, nozzle fixture check buffer action, if the action is not smooth coated with a thin layer of lubricant, if the fixture loose, tight. Move the lens to clean the dust and residue on the lens. X axis lead screw check whether there is debris or residue, if necessary to clean. X-axis guide check whether the grease has hardened and residue adhesion. Y-axis lead screw check whether there is debris or residue, if necessary, to clean. Y-axis guide check whether there is any hardened grease and residue adhesion. W shaft screw screw check whether there is debris or residue, if necessary to clean, air interface check y-ring and o-ring aging, if necessary to replace.
FAQ
Q: What's your delivery date?
A: The delivery date is about 30 days upon the down payment.
Q: Will you be participate the exhibition around the world?
A: Yes, our company go to many countries to participates in the exhibition,such as Egypt, India, Turkey, Delhi, Pakistan. If you have a chance to visit, you can get to know our company and our products better.
Q: Why would I buy it from you and not another company?
A: 1.We can provide you with the whole production line.
2.Our software is R&D independently, so we can offer software upgrade for lifetime for free.
