Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1200*1930*1500mm | PCB Size: | Max:450*350mm Min:80*80mm |
|---|---|---|---|
| PCB Thickness: | 0.1~6mm | Mounting Precision: | ±0.04mm |
| Mounting Height: | Standard:≤15mm(Height Customizable) | Mounting Speed: | 40000 CPH |
| No.of Feeders Station: | 32 PCS Feeders Station | No.of Head: | 10 PCS |
| High Light: | 6mm SMT Chip Mounting Machine,Linear Motor SMT Chip Mounting Machine,32 PCS feeders LED Bulb Making Machine |
||

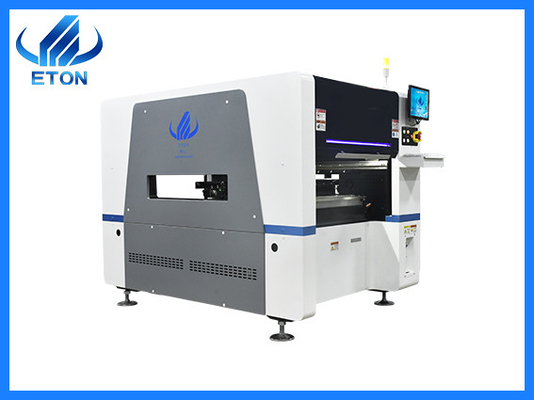

Single module magnetic linear motor multi functional SMT pick and place machine
Product description
The fastest production capacity is 40000 CPH
Feature
Electronic feeder feeding system
Vision alignment flight identification, mark correction
Auto-optimization after coordinates generated, etc
Technical parameter
Parameter
| PCB clamping | pneumatic |
| PCB thickness | 0.1-6mm(if ＜0.6mm,need jig) |
| No.of camera | 2 PCS |
| No.of heads | 10 PCS |
| No.of feeders station | 32 PCS |
| Power | AC380V |
| Power consumption | 4kw |
| Positioning way | optical |
Application
Service
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
Package
Our products are generally packed in vacuum wooden cases, which can better protect our products from damage and loss during transportation. The packing cases are very strong and solid, we will arrange delivery and packaging according to the needs of customers.
FAQ
Q. Can I use CIF price?
A. CIF price need add the freight and insurance fee, while for the part of EXW which is cheaper and convenient factor as a suitable price for both sides.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.

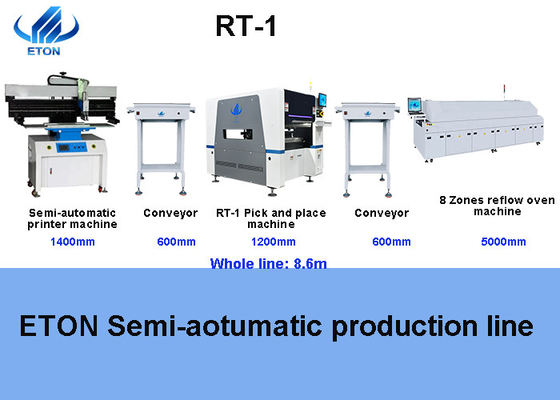

Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
