Model: | YT101s | Warranty: | 1 Year,12 Months |
---|---|---|---|
Applicable Components: | SOP | Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle |
Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine | Power Supply: | 380V 50HZ |
Condition: | New,100% Original,Brand-new | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine |
Weight: | 1700KG | Mounting Speed: | 40000 CPH |
Type: | Automatic | Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED |
Dimension: | 2154*1376*1762mm | ||
High Light: | magnetic motor LED Assembly Machine,LED Assembly Machine 380V,40000 CPH LED Assembly Machine |
Assembly making machine for led light mounting
Product Details
Model Number:YT101s
Dimension:2154*1376*1762mm

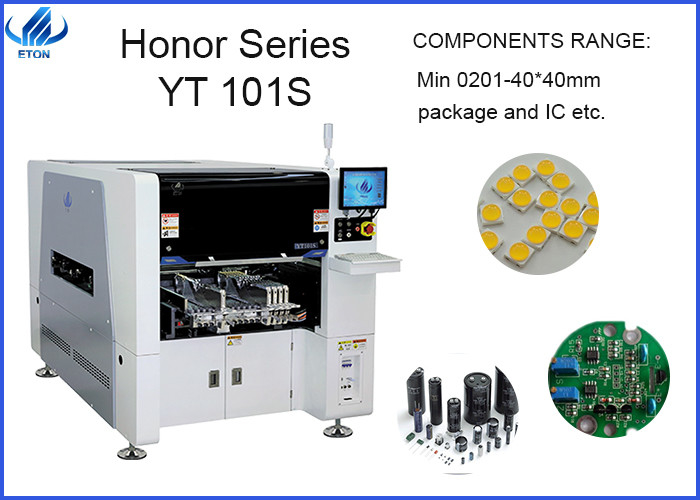

Component range:0201-40 *40mm package and IC etc.
PCB size:MAX:500*350mm/MIN:50*50mm
PCB thickness:0.5-4.5mm
No.of camera:2 sets
Repeat mounting Precision:±0.02mm (Repeat precision)
Mounting Height:≦20mm
Mounting speed:40000cph
Weight:1700kg
Speed:40000CPH
Power:380AC 50HZ
Feeder:16pcs
Heads:10pcs
PCB clamping:cylinder clamping,track width adjustable
Rail:rail 1 is fixed
X,Y,Z axis driver way:High-end magnetic linear motor+servo motor
Core Components:Motor
Brand:ETON

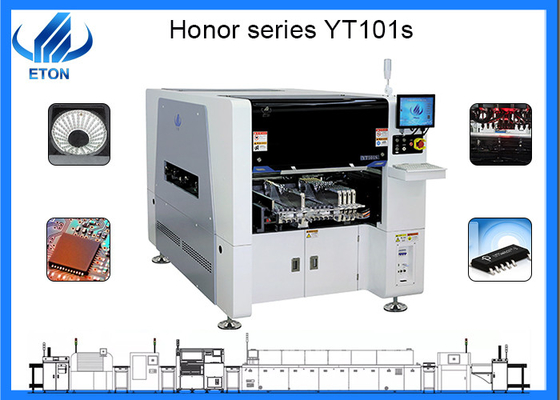

Introduction of 101
yt101s is roughly the same as yt101,the max PCB size 500*350mm, mini size 50*50mm.but it has higher precision.it apply to 0201-40*40mm tape reel package.components with size less than 40*40mm or height less than 20mm can be used to high-speed and high-precision identification,IC tray feeder support.in an optimal conditions,the speed can reach 4000CPH.In practical calculation of production capacity, many factors need to be considered, such as plate length, component size, component quantity, plate feeding time, plate number and so on. we have professional person can calculate this number for you.
The basic safety rules to operate the SMT machine:
1. Machine operators should be trained in proper methods.
2. Check the machine, replace parts or repair and internal adjustment should be turned off the power
3. Make sure to“Read the coordinates” and adjust the machine when the programming part is in your hand to stop the action at any time.
4. Ensure that the“Interlock” safety equipment remains in effect to stop the machine at any time and to check the machine on time
5. Only one operator is allowed to operate one machine during production.
6. During operation, make sure that all parts of the body, such as hands and head, are out of the range of movement of the machine.
7. The machine must be properly grounded and not ground to zero
8. Do not use the machine in a gas or dirty environment
