Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Mounting Speed: | 500000CPH | Mounting Head: | 136 PCS |
| High Light: | 136PCS Heads Pick And Place Machine,Led strip light chip mounter machine,flexible strip chip mounter machine |
||
SMT placement machine for LED strip lighting
Product description

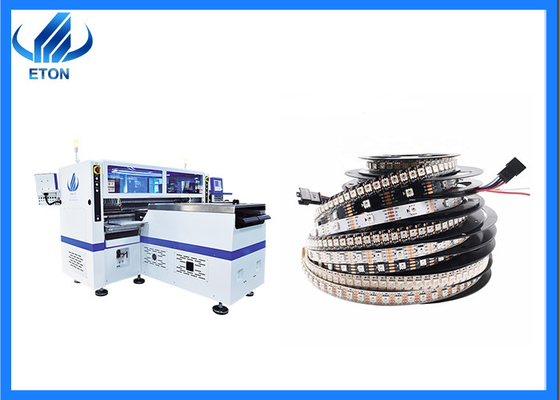

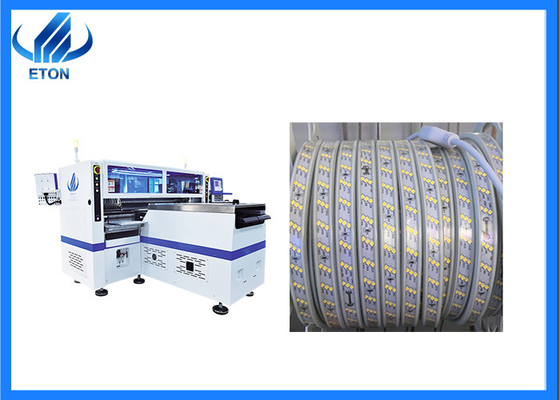

ETON double head dual system Led flexible strip light high speed chip mounter machine
Pefect mounting speed with 136 heads, optimum capacity reach 500,000CPH
Unique leak detection and separate feeding function, achieve accurate independent corners and placement
Fly vision function, no pause to detect the presence or absence of components and the adsorption state, to prevent placement errors, with automatic correction function
Automatic feeding function realizes the automatic placement of missing materials, realize Industry 4.0 unmanned workshop.
Parameter
| PCB size( Width*Length) | 250(± 10)mm*Any length |
| PCB thickness | 0.1 -0.5mm |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way | Group picking and group placing |
| Mounting mode | Double rail + Four groups of placement heads |
| No. of camera | 10 sets |
| Repeat precision | ±0.05mm/Mounting speed |
| Mounting speed | Double side:500000CPH,single side:250000CPH(Optimum speed) |
Why choose us
ETON is not only in the leading position in the field of photoelectric high-speed mounter, but also has made a breakthrough in the field of SMT high-speed mounter. It has successfully developed a number of high-cost SMT high-speed universal mounter. Its products are widely used in lighting, display screen, electronics, driving power supply, household appliances, new energy and other industries.
Maintenance instructions for semi-automatic printer
Daily maintenance:
Check whether the sensor works normally
Check whether the scraper is installed and leveled correctly
Check whether the operation keys are normal
Weekly maintenance:
Clean and lubricate the bearings of each department
Monthly maintenance:
Clean the drive case
Check the tightening of screws at all parts
Check whether there is electric leakage in the electrical part.
Package
We usually use vacuum wooden cases to pack the products. Vacuum can be very shock proof and ensure the integrity of the products. If you have special requirements for packaging, we can also realize it for you.
FAQ
Q1:How to pay after buying the product?
A:For payment, we only support L/C and T/T at present. If you choose T/T, you will have to pay 30% deposit, and the remaining amount will be paid before shipment.
Q2: What is the application scope of your product?
A:Our products have great advantages in the production of LED lamp drivers and light source. If you are an LED lamp manufacturer or are transferred to this industry, we can provide you with more information.
