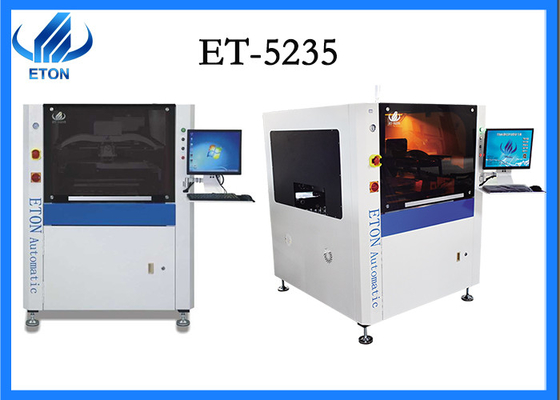

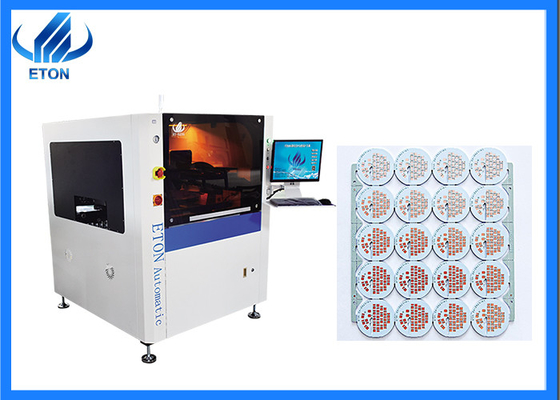

SMT pick and place machine for automatic printer to apply LED lights and PCB driver
Product description
Programmable transport speed control makes the stop more accurate
The optimized design of the module drive structure effectively improves the stability of the platform adjustment
The four-wheel positioning slide rail type structure with bilateral double sliders ensures the accuracy and stability of front and rear running
Closed-loop pressure control system accurately detects and controls real-time production blade pressure
Adopt uniform annular and high-brightness coaxial light, advanced upper and lower visual matching system, add polarizer inside, automatically and accurately identify various types of Mark points to ensure high-precision alignment of the machine
The optimized design of the module drive structure effectively improves the stability of the platform adjustment
Support stencil automatic cleaning function.
Parameter
| Screen Frames |
Max size: 737mm
|
| Min size: 470mm |
| Thickness: 25-40mm |
| PCB size |
Max: 520*350mm Min: 50*50mm |
| PCB warpage |
＜1°(Max PCB diagonal) |
| PCB location |
Support system: Magnetic pin/up-down table adjusted by manual |
| Clamping system: Unique top flattened, side clamping |
| Cycle time |
≤9s |
Service
Our service can be divided into three parts: pre-sales service, in-sales service and after-sales service:
1)Pre-sales service can be called professional product consultation. If you are particularly familiar with the patch machine industry, we have special technical consultants to answer the technical questions you want. If you want to move into this industry, we also have special personnel who can provide some information about the patch machine to make you more familiar with the pick and place machine
2)Service in sales refers to that you have paid a deposit in advance, and after the production of your products, we will regularly share the progress of product production with you. Of course, if you have other requirements during this period, you can also say it, and then we will make your expectations for the products.
3)After sales service refers to all the services we provide when you receive the products. We have a special after-sales department to serve you, such as guiding installation, training employees, regular follow-up, sharing industry information and so on.
About us
Our company focuses on the production of LED chip manufacturing machines, and has independently developed the world's first technological invention patents and property rights technology, including 9 invention patents, 12 software copyrights and 112 practical patents. It has won various certificates, such as well-known brands in Shenzhen and national advanced technology enterprises.
FAQ
Q1: What is the optimal capacity of your products?
A:The actual product of the mounter in this industry is conservatively estimated to be 60% of the optimal production capacity, but it all depends on the product you want to do, PCB design, component type, component quantity, etc
Q2: Why is your product unique?
A: Because our patented technology, practical invention and software copyright are unique, we have obvious advantages in the market.
