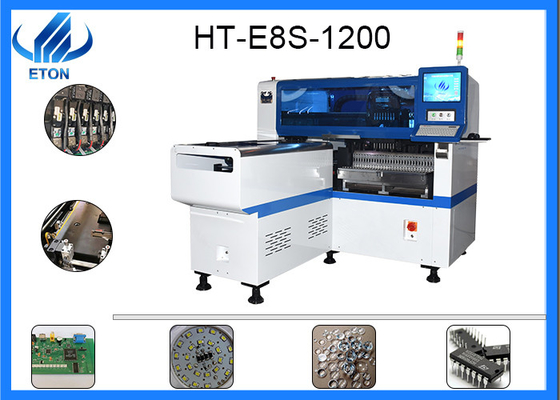

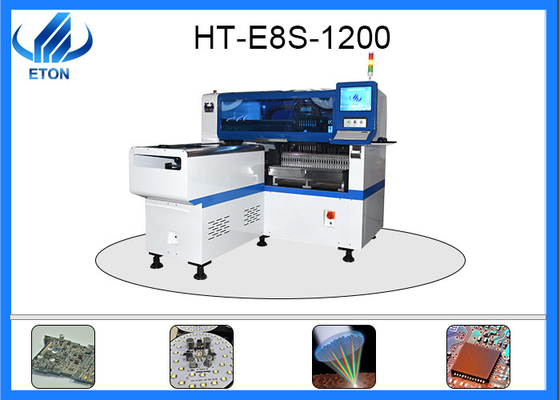

SMT pick and place nozzles machinery for led lights industry
Technical parameter
Dimension:2550*1650*1550mm
Total Weight:1700kg
PCB Length Width:Max:1200*500mm Min:100*100mm
PCB Thickness:0.5-5mm
No.of camera:2sets of imported camera
PCB Clamping:Adjustable pressure pneumatic
Mounting Mode:Group picking and separate placingseparate picking and separate placing
Software:R&D independently
Mounting Precision:±0.04mm
Mounting Height:<15mm (Automatic Changing)
Mounting Speed:45000 CPH
Components:LED,capacitors,resistors,IC,shaped components, etc.
Transmission Direction:Both direction (option)
The function of components
Resistor: current limiting; aristocrats: for transient voltage protection in circuits; capacitors: the basic role of capacitors is to charge and discharge; Integrated Circuits: function is to reduce the number of components in the circuit and improve performance, convenient application; diodes: the greatest feature is the unidirectional conduction, that is, the current can only flow from the diode in one direction, the role of the diode rectifier circuit, detector circuit, voltage-stabilizing circuit, a variety of modulation circuit; Its essence is that the transistor can control the larger change of the integrated current by the small change of the base current.
The function of components
Resistor: current limiting; aristocrats: for transient voltage protection in circuits; capacitors: the basic role of capacitors is to charge and discharge; Integrated Circuits: function is to reduce the number of components in the circuit and improve performance, convenient application; diodes: the greatest feature is the unidirectional conduction, that is, the current can only flow from the diode in one direction, the role of the diode rectifier circuit, detector circuit, voltage-stabilizing circuit, a variety of modulation circuit; Its essence is that the transistor can control the larger change of the integrated current by the small change of the base current
1. our multifunctional pick and place machine e8s,it is a single module magnetic linear motor multi-functional pick and place machine,it can mount for LED chips,capacitors,resistors,lens,IC,shaped components,etc.Adopt the application for power driver,electric board,lens,DOB bulb,linear bulb,household appliance.
2. take the power driver for example.as you can see this power driver,the height of components are higher than other components. And this black one is IC,the smallest component in this PCB board,i think some of you guys may worry about our machine can not mount these different kinds of size components.don't worry about this,our machine can mount many kinds of size components,whatever such a big capacitors or the small IC,we can mount them.and our head have types of nozzles can be exchanged for varies size of components.
3.This is lens,the lens is transparent and the shape like a button.from this PCB board ,the space of lens is longer than other products.and there is a led chip in each led lens,cause the lens can light.this PCBA can be used to produce led street light and panel lights,etc..
